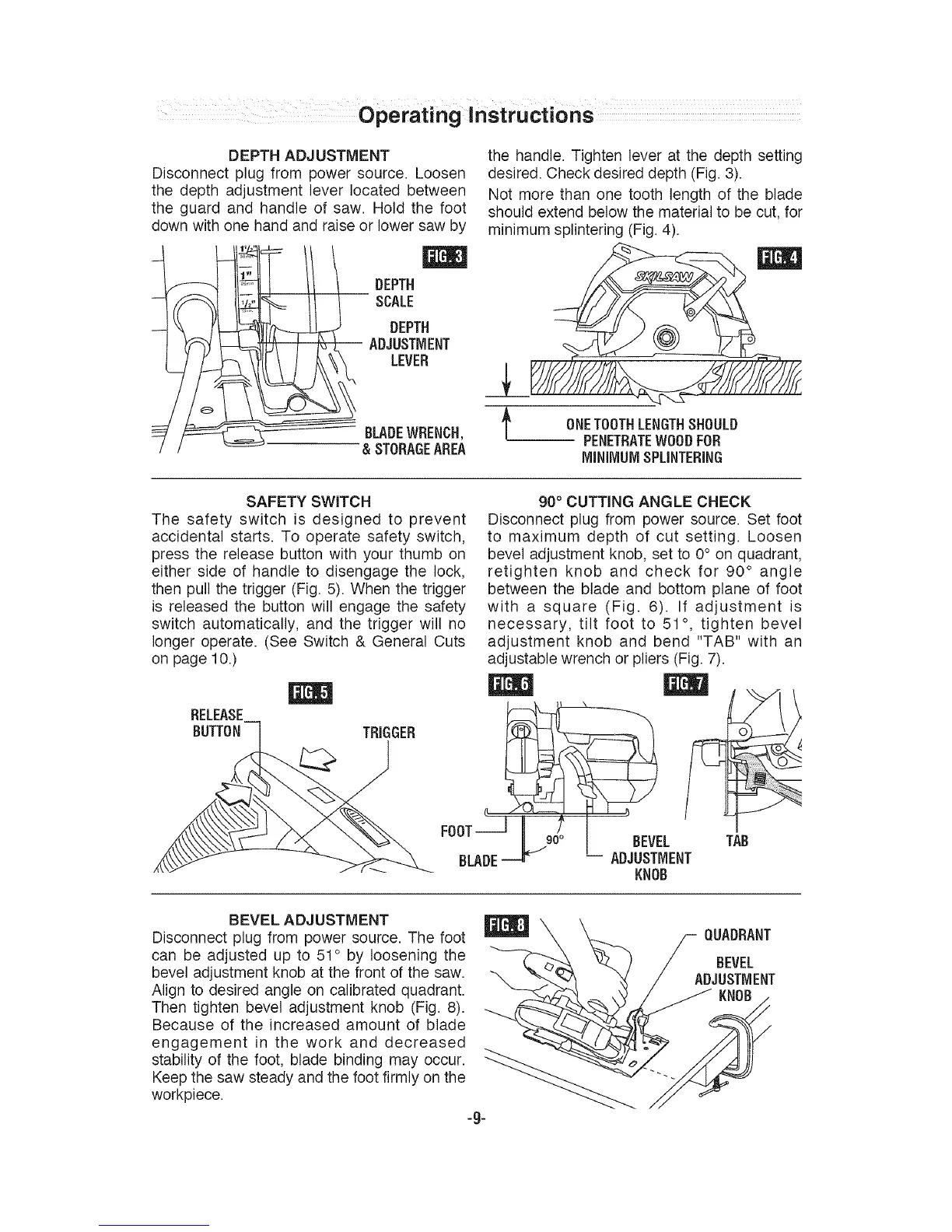

DEPTH ADJUSTMENT
Disconnect plug from power source. Loosen
the depth adjustment lever located between
the guard and handle of saw. Hold the foot
down with one hand and raise or lower saw by
DEPTH
SCALE
DEPTH
ADJUSTMENT
LEVER
BLADEWRENCH,
& STORAGEAREA
the handle. Tighten lever at the depth setting
desired. Check desired depth (Fig. 3).
Not more than one tooth length of the blade
should extend below the material to be cut, for
minimum splintering (Fig. 4).
t__
ONETOOTHLENGTHSHOULD
PENETRATEWOODFOR
MINIMUMSPLINTERING
SAFETY SWITCH
The safety switch is designed to prevent
accidental starts. To operate safety switch,
press the release button with your thumb on
either side of handle to disengage the lock,
then pull the trigger (Fig. 5). When the trigger
is released the button will engage the safety
switch automatically, and the trigger will no
longer operate. (See Switch & General Cuts
on page 10.)
RELEASE
BUTTON TRIGGER
90° CUTTING ANGLE CHECK
Disconnect plug from power source. Set foot
to maximum depth of cut setting. Loosen
bevel adjustment knob, set to 0° on quadrant,
retighten knob and check for 90 ° angle
between the blade and bottom plane of foot
with a square (Fig. 6). If adjustment is
necessary, tilt foot to 51°, tighten bevel
adjustment knob and bend "TAB" with an
adjustable wrench or pliers (Fig. 7).
KNOB
BEVEL ADJUSTI_AENT
Disconnect plug from power source. The foot
can be adjusted up to 51° by loosening the
bevel adjustment knob at the front of the saw.
Align to desired angle on calibrated quadrant.
Then tighten bevel adjustment knob (Fig. 8).
Because of the increased amount of blade
engagement in the work and decreased
stability of the foot, blade binding may occur.
Keep the saw steady and the foot firmly on the
workpiece.
-g-
| QUADRANT
BEVEL
ADJUSTMENT
KNOB
