SKOPE VF Series
Servicing
User Manual
Lighting
This freezer is designed for use with LED tubes and is not compatible with
fluorescent tubes.
As with any maintenance, ensure the freezer is disconnected from the
power supply before cleaning.
Interior Light The cabinet interior is lit by one side light or one centre pillar light (see table
below for details), which can be replaced without moving shelves or
removing product.
Interior light specifications
To replace the cabinet interior side light (model VF650)
To replace the cabinet interior pillar light (model VF1000/1300/1500)
WARNING
Twin unit freezers have two seperate power supplies. Ensure
both supplies are disconnected before undertaking any service
or maintenance work.
IMPORTANT
DO NOT use fluorescent tubes.
Model LED Tube Specification
VF650 1 x side light: 22 Watt T8 LED tube (Ø26mm x 1500mm)
VF1000/VF1300 1 x pillar light: Twin 22 Watt T8 LED tube (Ø26mm x 1500mm)
VF1500 2 x pillar lights: Twin 22 Watt T8 LED tube (Ø26mm x 1500mm)
1. Disconnect the freezer from the power supply.
2. Remove the diffuser by squeezing it until it is released from the aluminium
housing, and then push the diffuser out of the way.

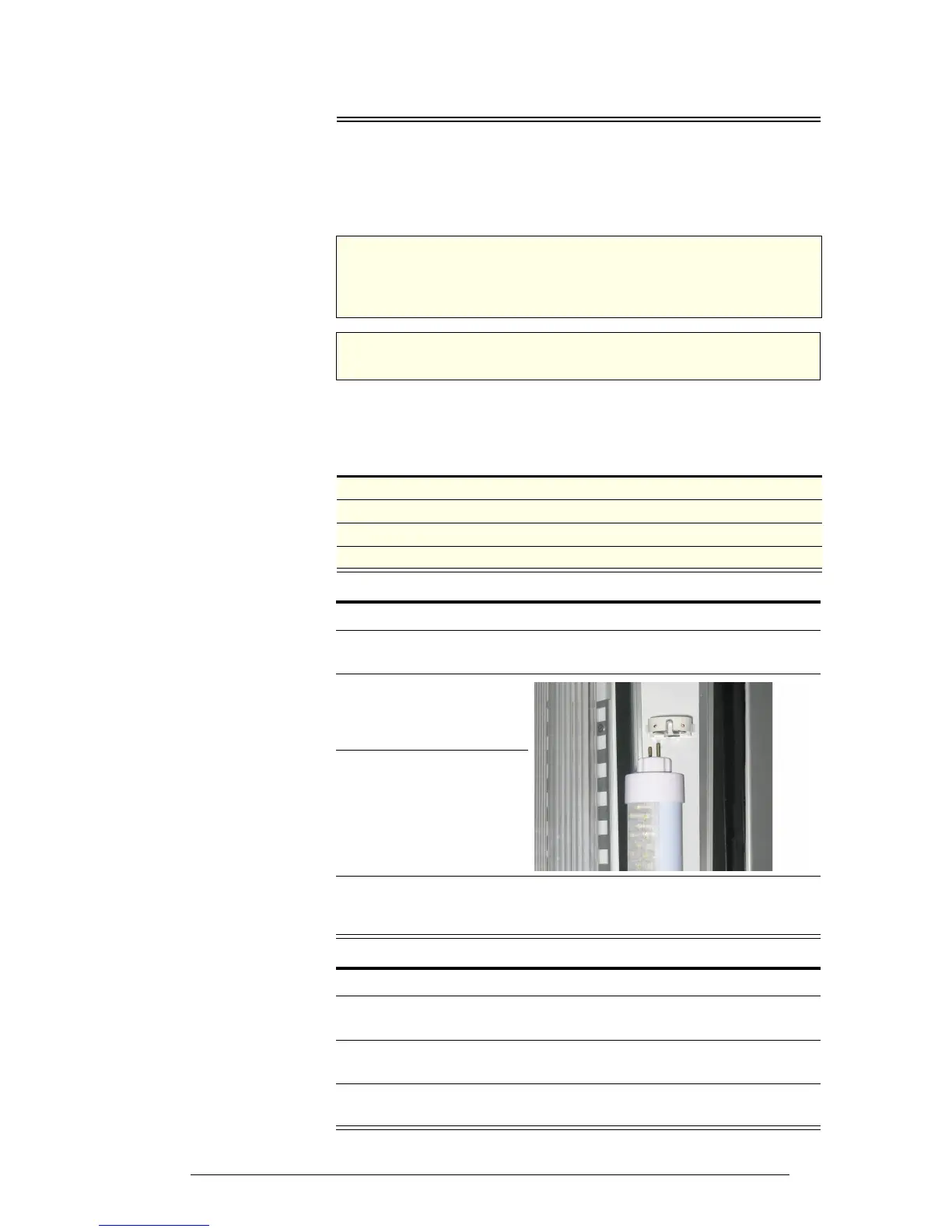

3. Rotate the LED tube until
the pins on the ends of the
tube align with the slots,
then slide it out.
4. Fit a new LED tube.
Ensure the LED tube is
fitted with the power end
at the top.
5. Refit the diffuser by slipping the back section into the housing, then
squeezing and snapping the front section of the diffuser into place as you
work down the length of the light.
1. Disconnect the freezer from the power supply.
2. Remove the diffuser by squeezing it until it is released from the housing, and
then push the diffuser out of the way.
3. Rotate the LED tube until the pins on the ends of the tube align with the slots,
then slide it out.
4. Fit a new LED tube. Ensure the LED tube is fitted with the power end at the
top.
