SKOPE VF Series
Sign Light Not as standard - lit sign freezers only. The sign unit is lit by one LED tube
(see table below for details) which can be replaced by removing the front
sign panel.
Sign light specifications
To replace the sign light
Model LED Tube Specification
VF650 1 x 9 Watt T8 LED tube (Ø26 x 600mm)
VF1000 1 x 12 Watt T8 LED tube (Ø26 x 900mm)
VF1300 1 x 20 Watt T8 LED tube (Ø26 x 1200mm)
VF1500 1 x 22 Watt T8 LED tube (Ø26 x 1500mm)

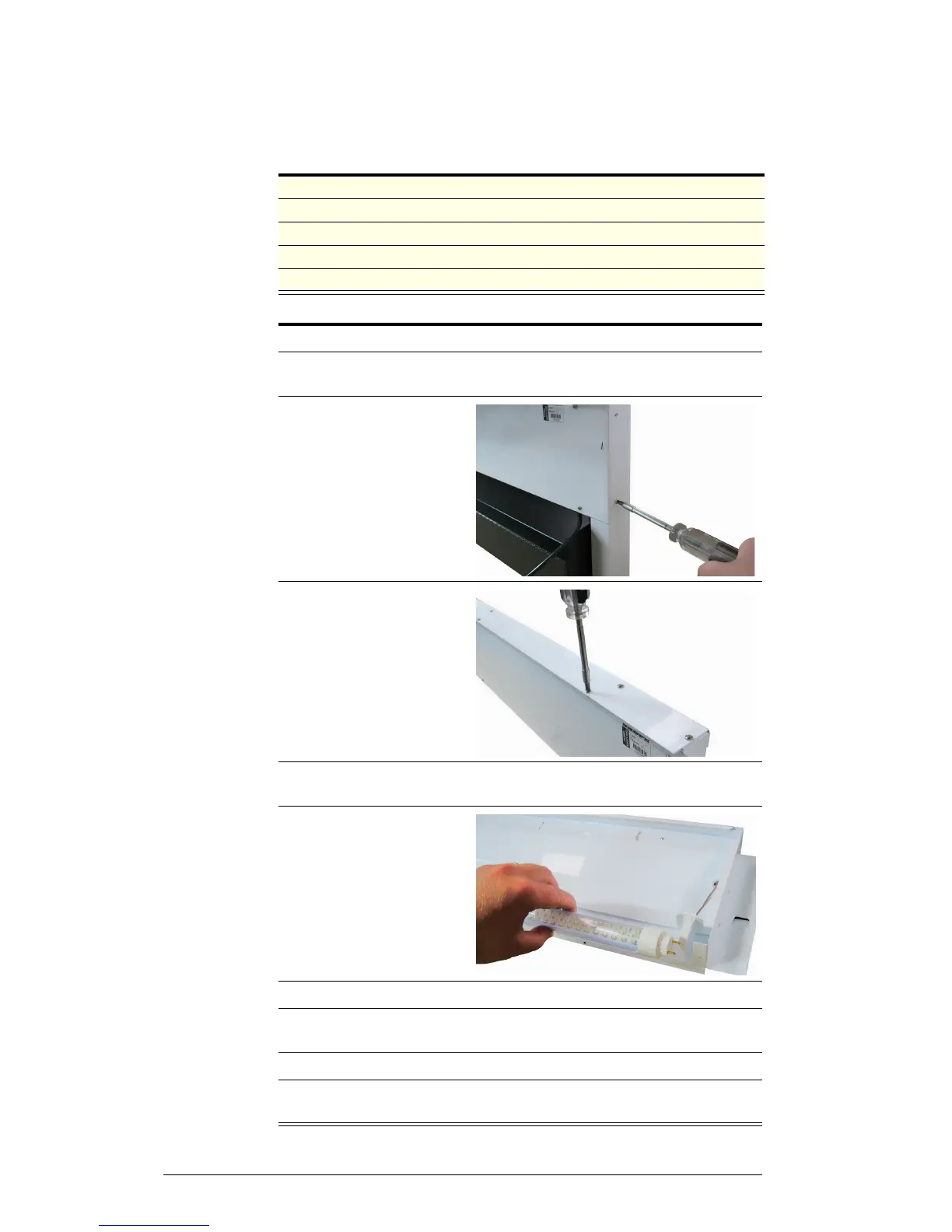

1. Disconnect the freezer from the mains power supply.
2. Remove the sign assembly. Lift the assembly up and off the sign sides and
unplug it from the cabinet.
3. Seperate the light sign
light assembly from the
sign panel by undoing the
two fixing screws on each
side of the sign panel.
4. Remove the top of the
sign light assembly by
undoing the four fixing
screws on the top of the
sign light assembly.
5. Remove the plastic sign panel (and artwork if present) from the sign light
assembly.
6. Rotate and remove the
failed LED tube.
7. Fit the new LED tube.
8. Refit the clear front panel (and artwork if present) and screw the sign top
cover back onto the top of the sign assembly.
9. Refit and fix the sign light back onto the sign panel assembly.
10. Plug the sign assembly back into the cabinet and slot the assembly back
onto the sign sides.
