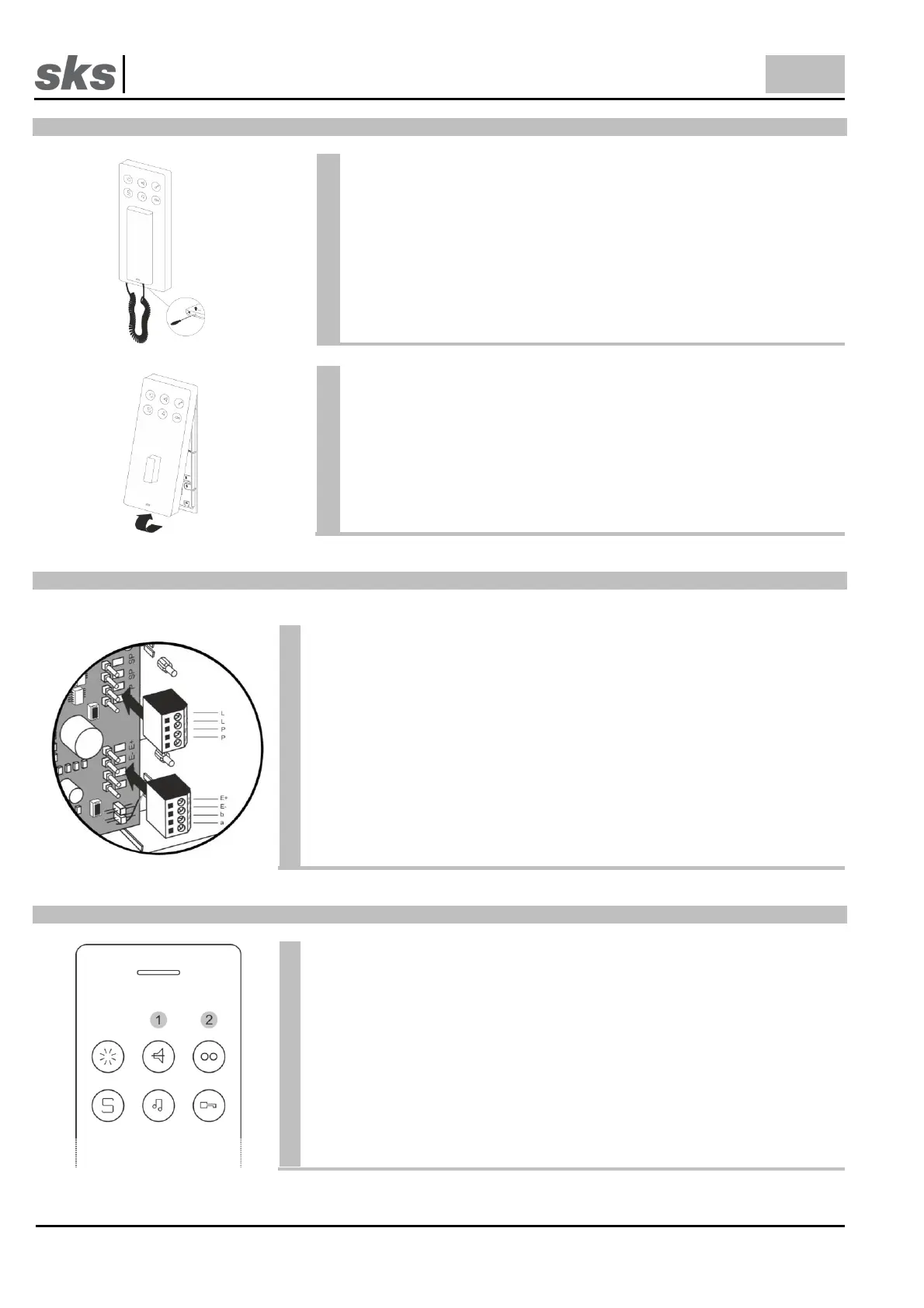

3.4 Disassembly of the indoor station
Use a screwdriver to release the indoor station from its supporting
frame. This is done by inserting the screwdriver into the release
opening at the bottom of the indoor station.
Carefully remove the indoor station from the support frame as shown
in the drawing.
Pull the lower part of the indoor station towards you and carefully lift it
upwards.
3.5 Connection
SKS 2-wire-audio-bus
The indoor station is connected to the audio part of the 2-wire video bus via
the terminals a+/b-.
The terminals E+/E- may optionally be used for floor buttons (normally open
contact).
The terminals P / P may optionally be used for potential-free contact,
switchable via light button
An RMA output is carried out with terminals L / L
3.6 Signaling
LED 1: Key pressure detected
LED 2: Optical call signaling
