PART IV : USING THE AZ-GTix MOUNT

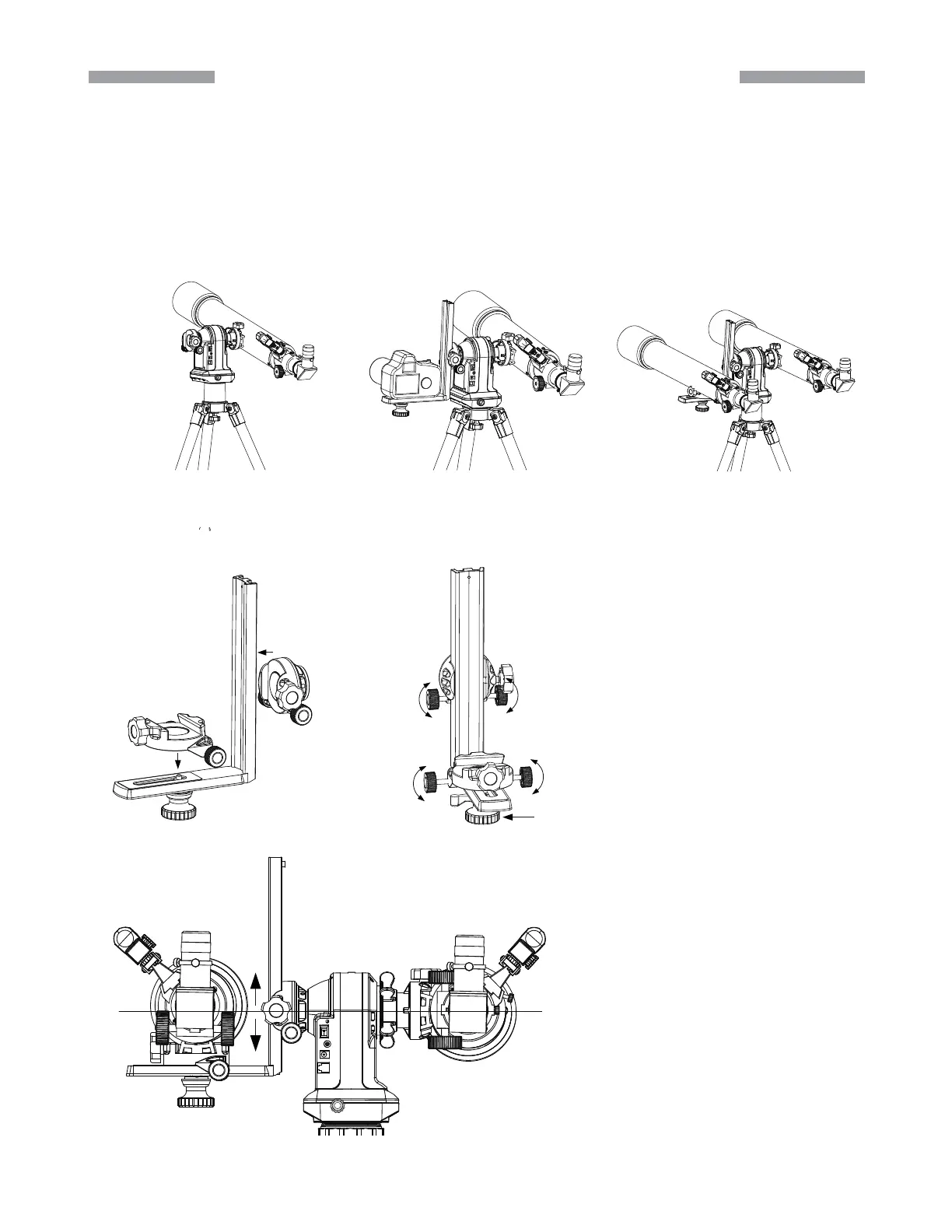

4.1 Installing The Telescope or Camera
Use only one telescope (Fig.4.1a).
Install the telescope on one side and the camera on the other side. When installing the
camera, you need to use a Fork arm attachment (Fig.4.1b).
Install a telescope on each side for use. At this time, in addition to the Fork arm attach-
ment, another adjustment groove is required (Fig.4.1c).
In order to make the two telescopes point to the same direction, four adjustment groove need to be adjust
ed (Fig.4.1e)
1.
2.
3.
AZ-GTix provides the following ways to assemble the telescope or camera:
Fig.4.1a
Fig.4.1d
Fig.4.1f
Fig.4.1e
Fig.4.1b Fig.4.1c
Loosen this knob slightly during calibration,
and tighen this knob after calibration
TIP: Fork arm needs to be adjusted
up and down so that the center points of
the telescope are at the same horizontal
position
knobs
