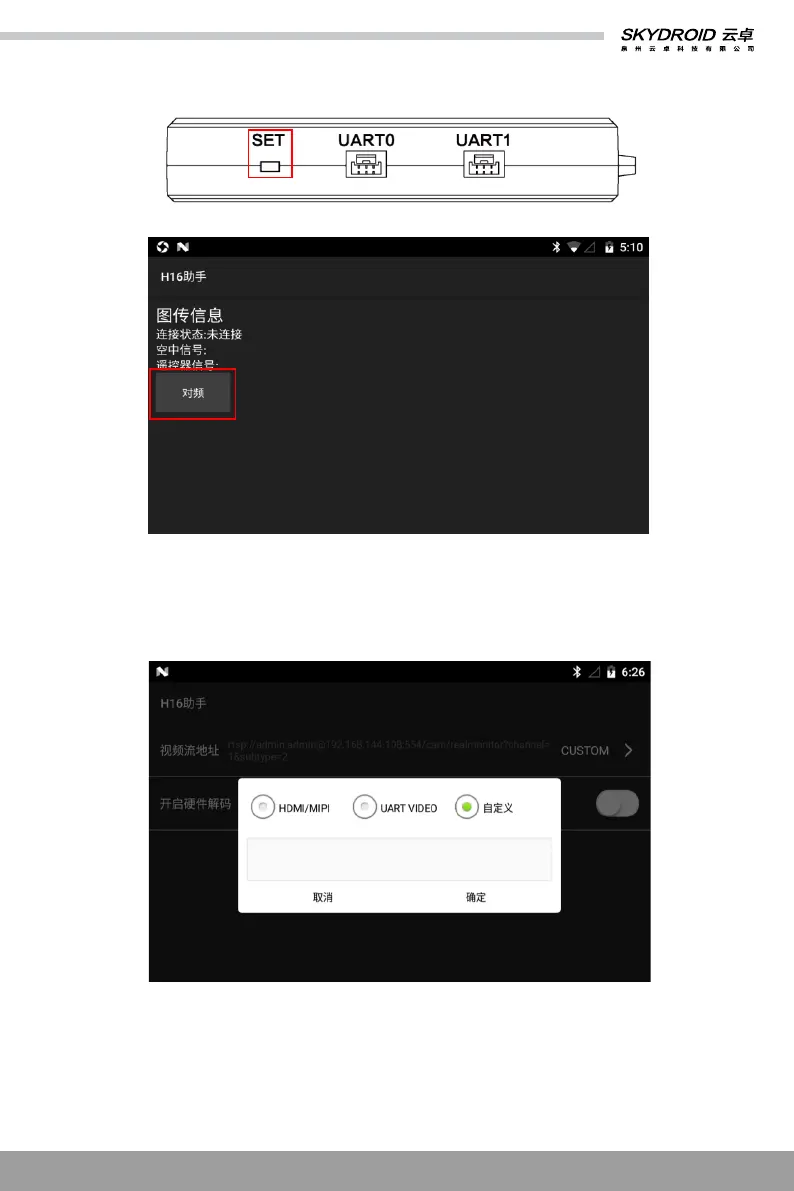

第四部分 对频操作
第五部分 图像连接及设置
① 将接收机通电后等待10秒后长按接收机SET
，
白灯闪烁时松开SET
② 进入H16助手
，
点击对频
，
点击对频
（
对频成功后会显示已连接
）
① 出厂默认设置为HDMI/MIPI模式
，
用来显示通过接收机端MIPI/HDMI传输的图像
② UAR
T VIDEO模式
，
来显示单轴云台、
mini摄像头图像
（仅限于部分设备：
MX680
）
③ 自定义模式
，
此模式来显示通过天空端的网口来传输图像
，
网口设备的网段必须改为144
网段才能使用
9
25
27
