RX0
TX0
GND
RX1
TX1
GND
5.Port definition
6.Environment conditions
Pay attention
A)Working temperature:-10°C~+55°Co
B)Storage temperature:-25°C~+70°C
C)Relative humidity:Not exceed 85%
D)Atmospheric pressure:86kPa~106kPao
E)Working environment should not contain explosive material or any corrosive or harmful gas may cause
interference in the operation of the product.
F)Always work under shelter to prevent rain, snow, wind, sand and dust contamination.
7.Working conditions
Power supply and attentions
H16 series uses a built in Li-ion battery. Charging port is compatible with common Type-C 9V-2A chargers
(such as cell phone, digital cameras’ USB charger).
In case of smoke, heat or unusual smell during charging, please stop charging immediately and return to our
company for servicing as soon as possible.
Do not leave the product unattended while charging. Do not leave the product in a place where children can
reach. Do not charge when room temperature over 60 ℃.
8.Safety
Warning
Beginners should pay attention for the followings! Please read it carefully!
DO NOT fly under the influence of substances, or when tired!
DO NOT fly in strong wind and or rainy conditions!
DO NOT fly close to electric emission towers, communication stations and crowded area!
DO NOT fly nearby airports and other prohibited areas!
DO NOT fly around people or animals, or in any location where possible to damage property.
Check equipment before every flight and check whether the transceiver system and the aircraft are
normal or not.
Please use certified chargers to charge the batteries.
DO NOT put unnecessary force on antennas since its weakness.
6

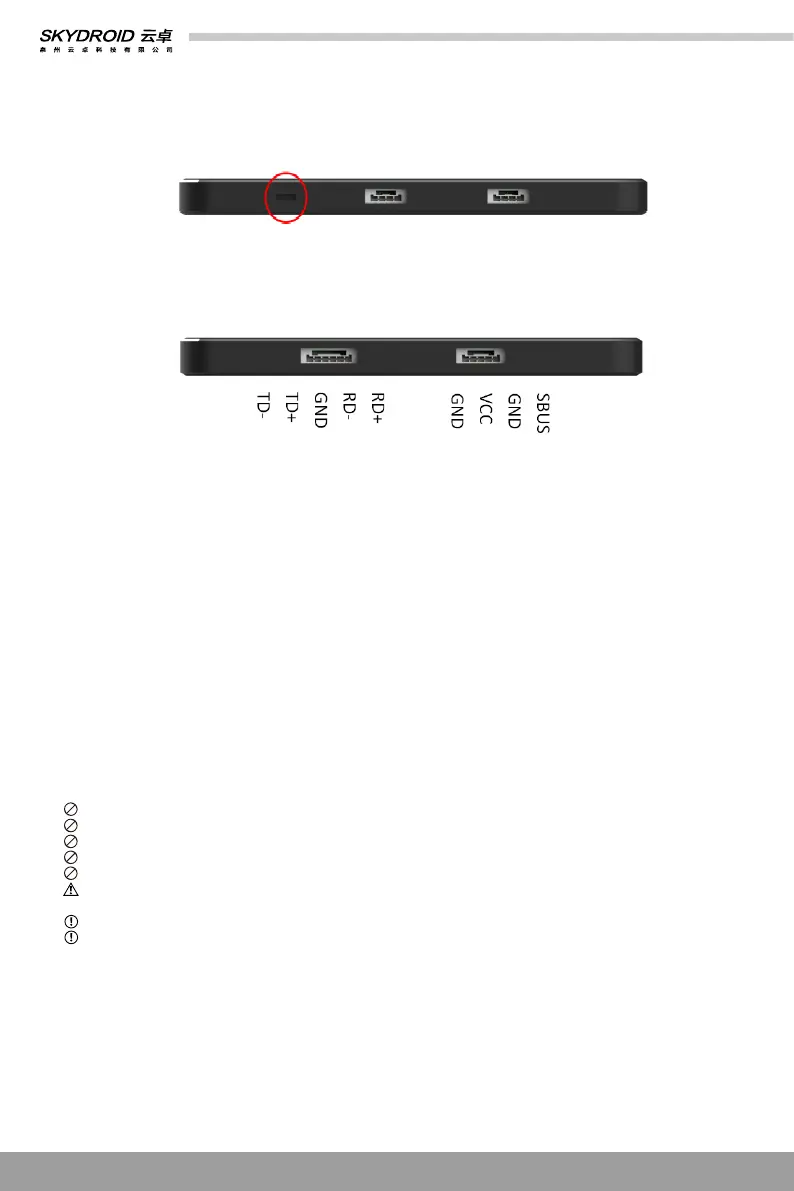

Button for binding Uart 0 Uart 1
Network port POW+SBUS
