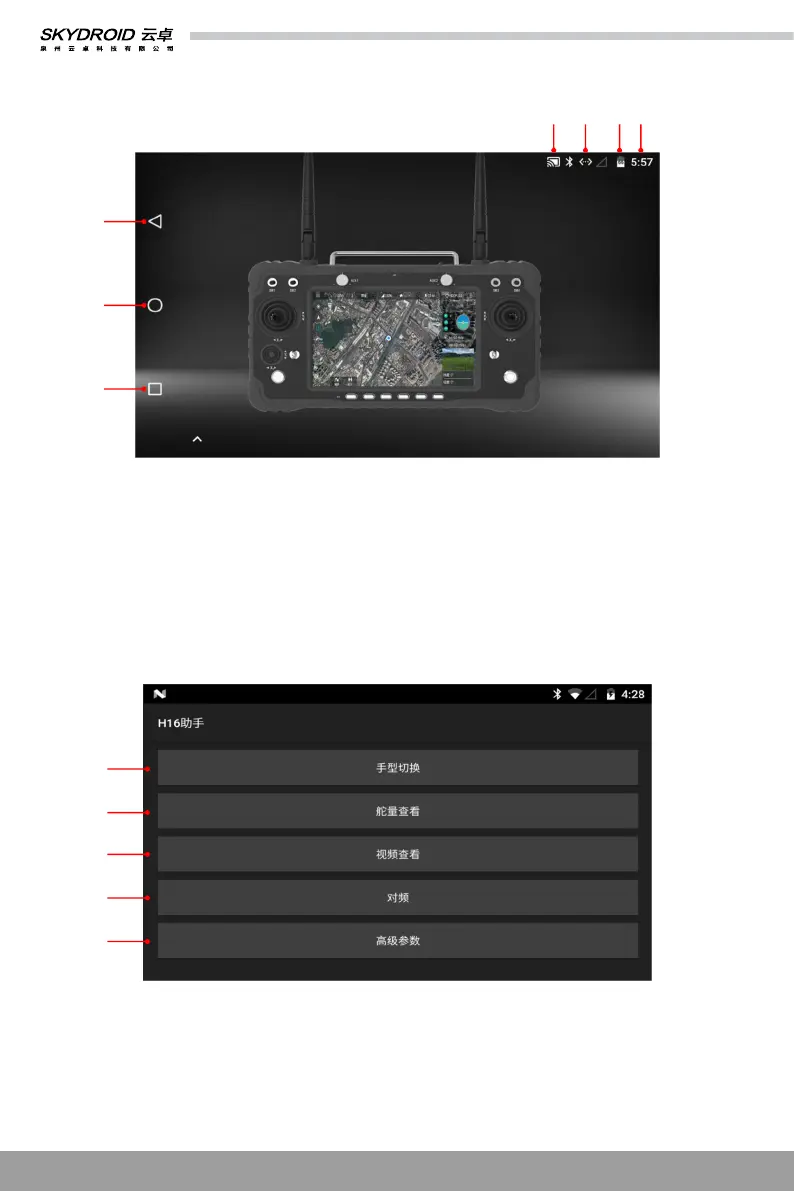

Part 2: Status
Part 3: H16 Helper
① Icon for connecting internet by network port or USB.
② Icon for connecting well between the TX and RX (icon in picture shows no connecting with RX).
③ Icon for Power level.
④ Icon for Time.
⑤ Icon for return.
⑥ Icon for back home.
⑦ Icon for back ground management/screen splitter.
① Switch the joystick operation mode of the remote control.
② Check whether the value of each channel of the remote control is normal or not.
③ You can view MIPI, HDMI, UART VIDEO and other RTSP videos (details are described below).
④ Binding the remote control with other receivers (the binding method is introduced below)..
⑤ In the advanced parameters setting part, you can adjust the channel, upgrade the joystick firmware, and
modify the receiver’s serial port baud rate (password 999, it is only for professional debugging).
①
①
②
③
④
⑤
② ③ ④
⑤
⑥
⑦
8
