Section 3 - System Component Identification and SchematicsService and Maintenance

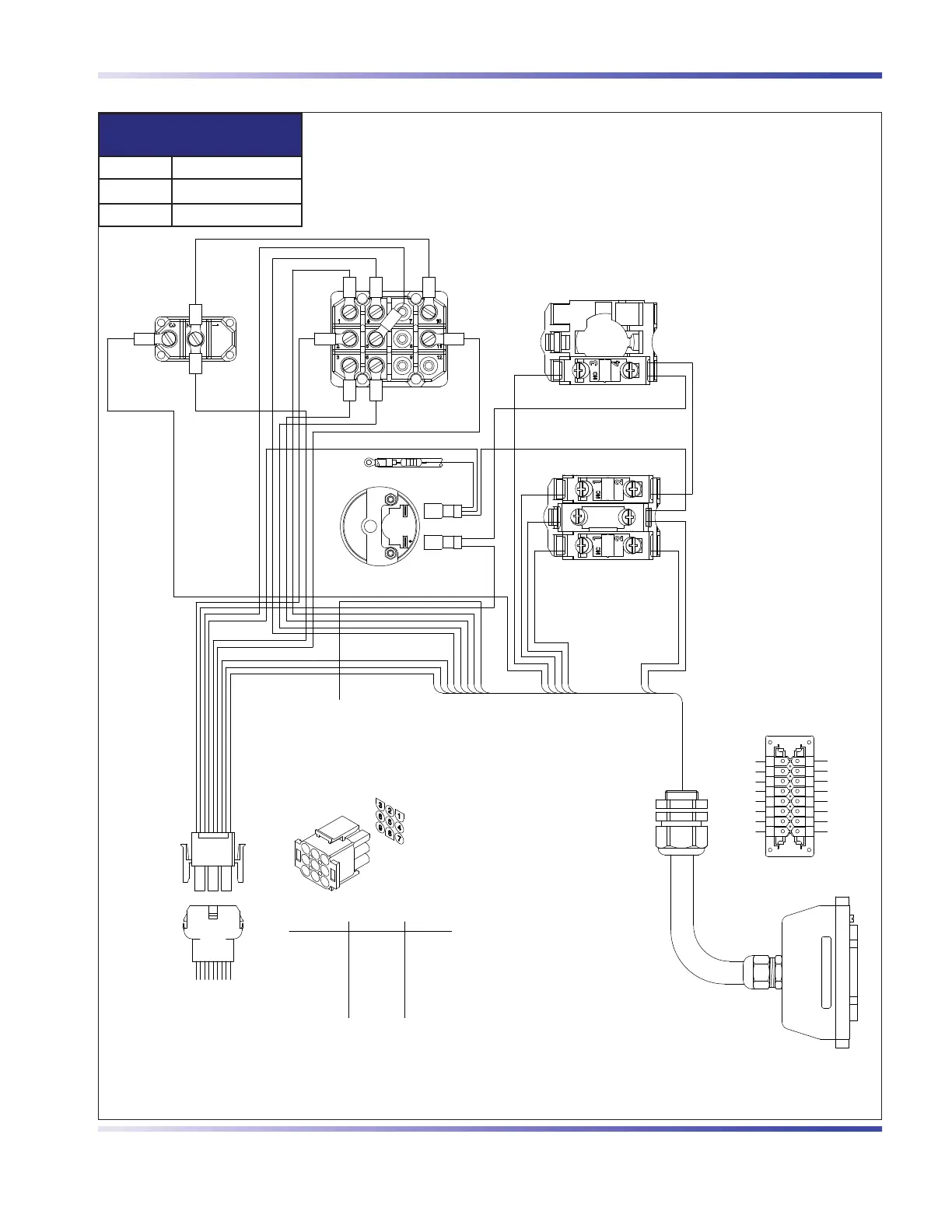

3.7a Platform Control Console Diagram (Toggle Switch)
M156881AA
A
9 PIN CONNECTOR SUB-ASSEMBLY
X2
X1
BLUE BLACK (24)
RED WHITE (60/7A)
BLACK WHITE (23)
GREEN BLACK (21B) (OPT)
ORANGE BLACK (59)
WHITE BLACK (16)
MALE
CRD1
RED BLACK (18)
(NOT USED)
BACK VIEW
7
6
3
4
5
8
(13) ORANGE
(14) BLACK
(07) RED
(8C) BLUE WHITE
(49) GREEN WHITE
(7A) GREEN
91
(02) WHITE
(15) BLUE
2
10
16
13
11
12
15
14
21B GREEN/BLACK - TIED BACK
S8 - HORN
02
07
7A
08
60/7A
8C
49
08
08
S4 - EMERGENCY STOP
LED-1
12B
18 8A
S3 - LIFT/OFF/DRIVE
15
13
02
08
00
RST1
PIN # - FUNCTION
PIN 1 - LEFT
PIN 2 - STEERING VS+
PIN 3 - RIGHT
PIN 4 - FWD/UP
PIN 5 - JOYSTICK VS+
PIN 6 - REV/DOWN
PIN 7 - PWM
PIN 8 - GND
PIN 9 - ENABLE VS+
CTRL BOX HARNESS
24 BLUE/BLACK
12B BROWN/RED
23 BLACK/WHITE
B RED
08 BLUE
A PURPLE/WHITE
59 ORANGE/BLACK
02 WHITE
8A BLUE
JOYSTICK HARNESS
WHITE/RED
WHITE/GREEN
WHITE
YELLOW
WHITE/BLACK
GREY
BLUE
BLACK
WHITE/ BLUE
CTRL BOX
JOYSTICK HARNESS
HARNESS
S27 - TORQUE
16
14
B
12B
12B
AC
Serial Breakdown
Reference Chart
Model Serial Number
SJ3 3215 10000611 & above
SJ3 3219 22020985 & above
