Skyjack SJ 3215 - Electrical Component Parts List

Index
No.
Skyjack
Part No.
Qty. Description
SKYJACK, Page 8 SJIII Compact Series
143909
3.6 Electrical Component Parts List

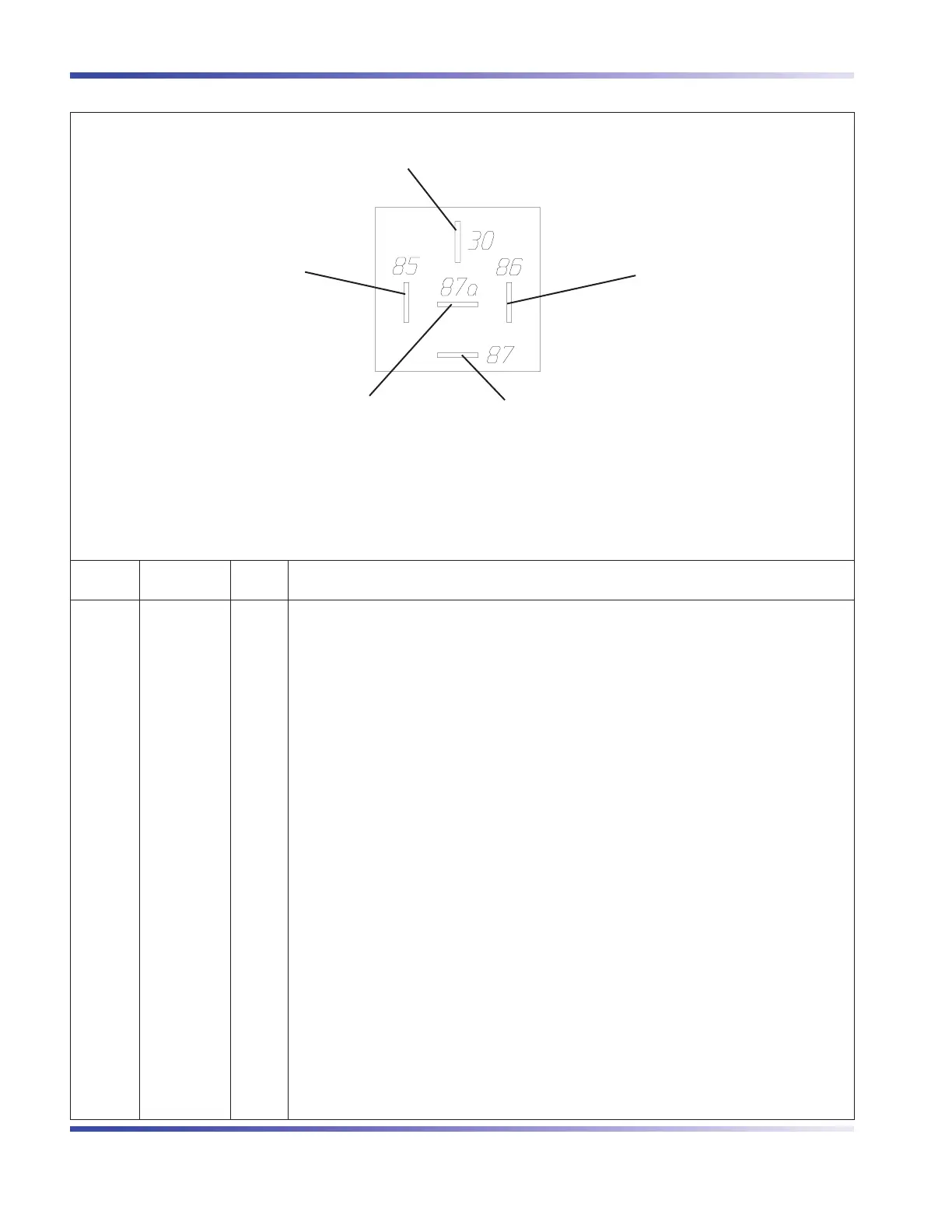

CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
17CCR 108589 1 RELAY, 24 Volt (Cushion)
17CR 108589 1 RELAY, 24 Volt (Steer)
17CR1 108589 1 RELAY, 24 Volt (Transfer)
21ACR 108589 1 RELAY, 24 Volt (Proportional)
28CR 108589 1 RELAY, 24 Volt (Tilt switch) (ANSI/CSA)
28CR1 108589 1 RELAY, 24 Volt (TIlt switch) (CE)
28CR2 108589 1 RELAY, 24 Volt (Down) (CE)
28ECR1 108589 1 RELAY, 24 Volt (Auxillary tilt) (CE)
28ECR2 108589 1 RELAY, 24 Volt (Auxillary down) (CE)
L1CR 127154 1 RELAY, 12 Volt (Charger cutout)
2H-13 103605 1 COIL, 24 Volt (Lowering valve) (ANSI/CSA)
2H-13B 103605 1 COIL, 24 Volt (Lowering valve) (CE)
2H-13A 137006 1 COIL, 24 Volt (Deceleration valve) (Model 3215 ANSI/CSA)
2H-13C 137006 1 COIL, 24 Volt (Deceleration valve) (Model 3215 CE)
2H-13-1 104493 1 COIL, 24 Volt (Holding valve) (ANSI/CSA)
2H-13B-1 104493 1 COIL, 24 Volt (Holding valve) (CE)
2H-25 103605 1 COIL, 24 Volt (Cushion)
2H-59 115370 1 COIL, 24 Volt (Proportional valve)
3H-14 106273 1 COIL, 24 Volt (Lift valve)
3H-17 103623 1 COIL, 24 Volt (Brake valve)
4H-15 153335 1 COIL, 24 Volt (Reverse drive spool valve) (Hytos)
128320 1 COIL, 24 Volt (Reverse drive spool valve) (Hytos) (If equipped)
4H-16 153335 1 COIL, 24 Volt (Forward drive spool valve) (Hytos)
128320 1 COIL, 24 Volt (Forward drive spool valve) (Hytos) (If equipped)
Parts list continued on the following page.
