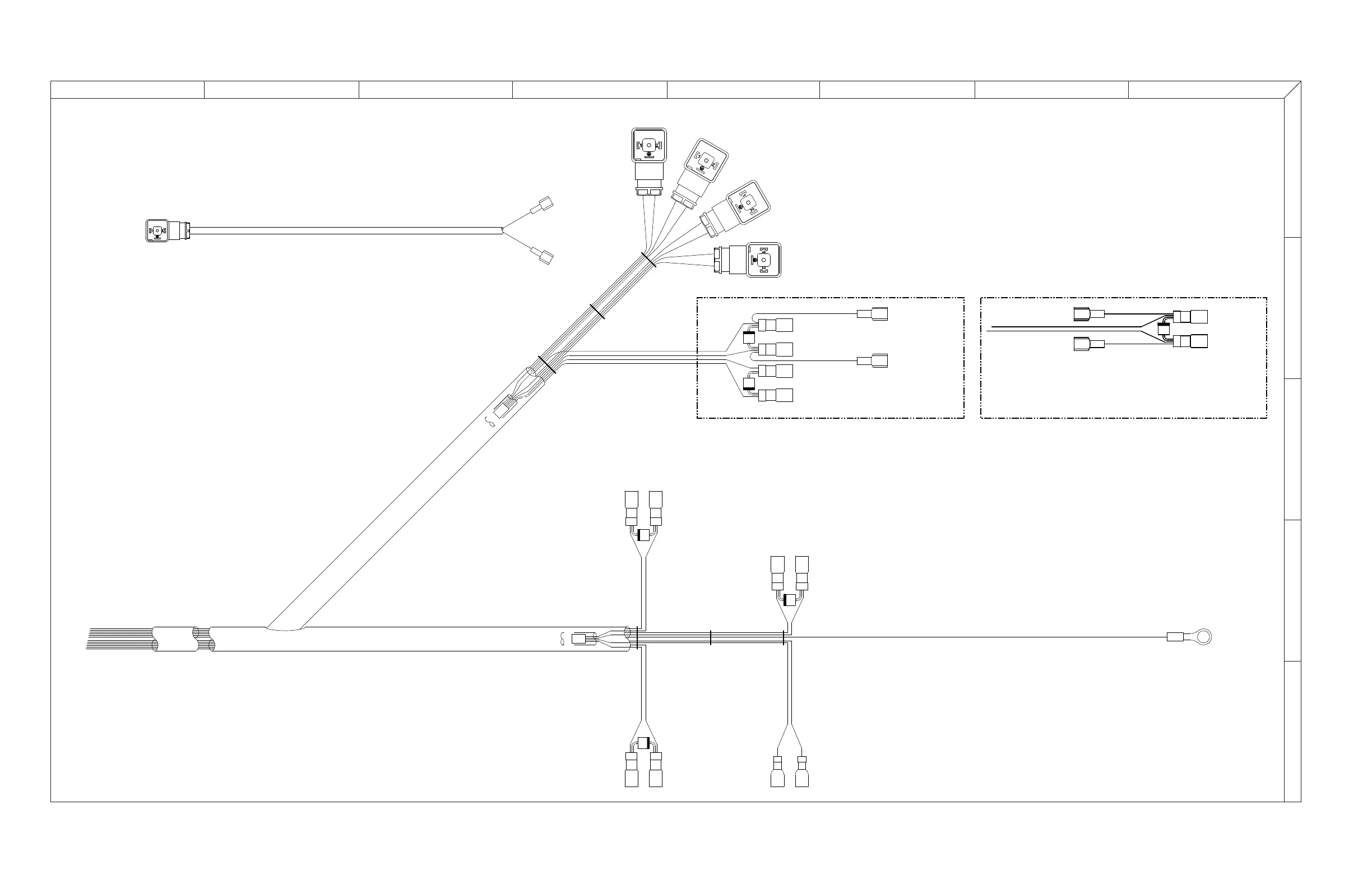

3.14 Main Manifold Harness and Holding Valve Harness (CE)
M147332AA_S3
13B - BLACK
TO MAIN MANIFOLD HARNESS
02 - WHITE
PIN 2 - WHITE
PIN 1 - BLACK
TO HOLDING VALVE
13B
02
HOLDING VALVE
SJ3E 3219 SJ3E 3215
13B - ORANGE (18 AWG)
02 - WHITE (18 AWG)
02
13B
13B
02
LOWERING VALVE
13B - ORANGE
02 - WHITE
00
MOTOR (-)
00 - GREEN/YELLOW
(14 AWG)
13B
RIGHT
FORWARD VALVE
BLACK HEIRSHMAN
PIN 1 - 16 WHITE/BLACK
PIN 2 - 02 WHITE
REVERSE VALVE
GREY HEIRSHMAN
PIN 1 - 15 BLUE
PIN 2 - 02 WHITE
16
0215
02
GREY
REVERSE
02
BLACK
BLACK
24
GREY
LEFT
02 23
INSERT ORIENTATION
BOTTOM VIEW
FORWARD
02
02
02
13C
LOWERING VALVE
13B - ORANGE
02 - WHITE
SOFT STOP VALVE
13C - ORANGE
02 - WHITE
02
59
PROPORTIONAL VALVE
59 - ORANGE/BLACK
02 - WHITE
02
14
LIFT VALVE
14 - BLACK
02 - WHITE
17
02
SPLICE #1
02
BRAKE VALVE
17 - BLUE/RED
02 - WHITE
02
CUSHION VALVE
25 - ORANGE/GREEN
02 - WHITE
25
13B
HOLDING VALVE
13B - ORANGE (18 AWG)
02 - WHITE (18 AWG)
02
SPLICE #2
RIGHT STEER VALVE
BLACK HEIRSHMAN
PIN 1 - 23 BLACK/WHITE
PIN 2 - 02 WHITE
LEFT STEER VALVE
GREY HEIRSHMAN
PIN 1 - 24 BLUE/BLACK
PIN 2 - 02 WHITE
TO ELECTRIC PANEL - 12 WIRES
00 - GREEN/YELLOW (14 AWG)
02 - WHITE
13B - ORANGE
13C - ORANGE (3215 ONLY)
14 - BLACK
15 - BLUE
16 - WHITE/BLACK
17 - BLUE/RED
23 - BLACK/WHITE
24 - BLUE/BLACK
25 - ORANGE/GREEN
59 - ORANGE/BLACK
