Skyjack SJ 3215 - Base Control Console Diagram

SKYJACK, Page 13SJIII Compact Series
143909
Section 3 - System Component Identification and SchematicsService and Maintenance

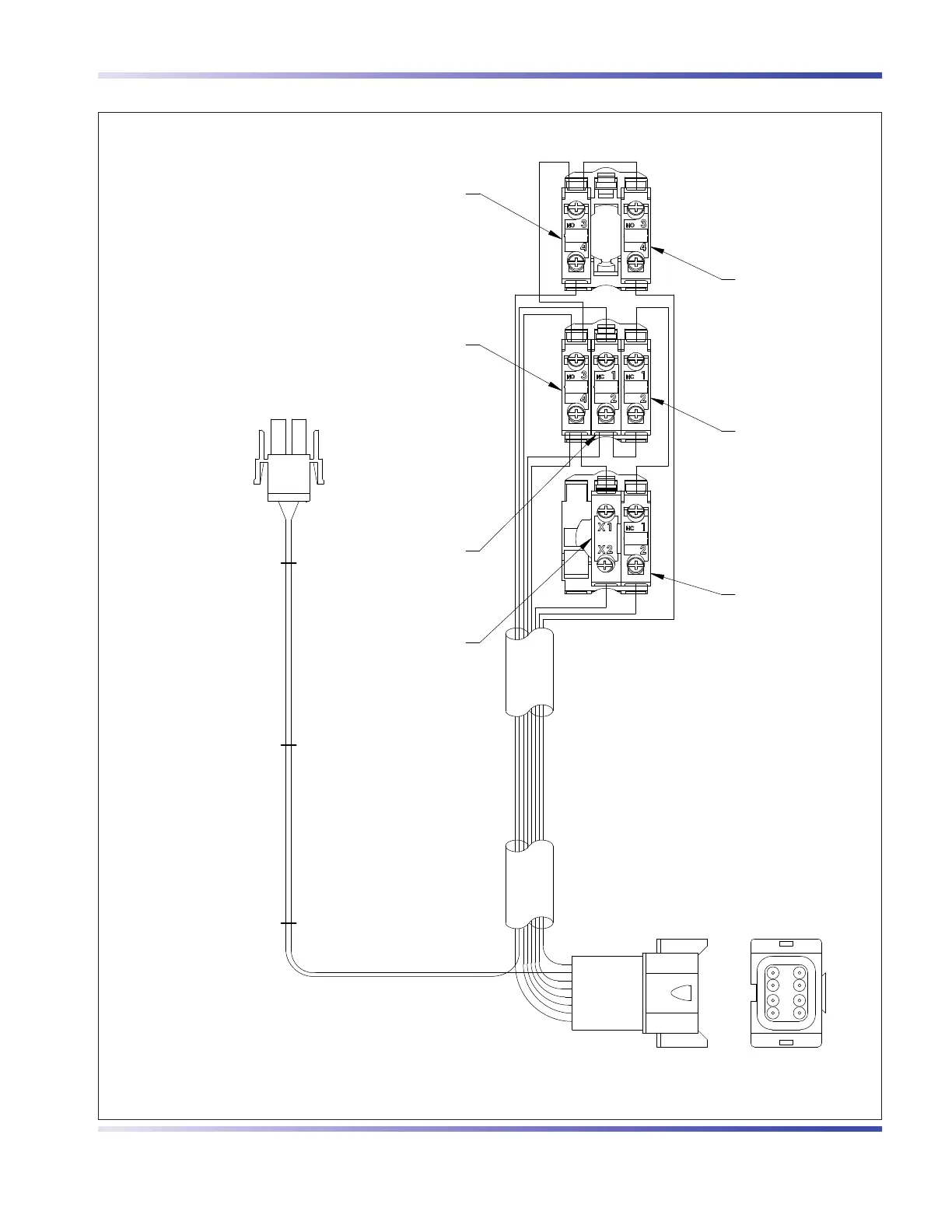

3.8 Base Control Console Diagram
M149686AA_S3
S28 - EMERGENCY STOP
N.C. CONTACT
PIN 1 - 5A PURPLE/WHITE
PIN 2 - 05 ORANGE/BLACK
S2 - UP SWITCH
N.O. CONTACT
PIN 3 - 10E BLUE/BLACK (X2)
PIN 4 - 14E BLACK
S10 - BASE SW
N.O. CONTACT
PIN 3 - 10E BLUE/BLACK (X2)
PIN 4 - 7A GREEN (X2)
S10 - IDLE SW
N.C. CONTACT
PIN 1 - 5A PURPLE/WHITE
PIN 2 - 07 RED
S2 - DOWN SWITCH
N.O. CONTACT
PIN 3 - 10E BLUE/BLACK
PIN 4 - 13 ORANGE
S10 - PLTF SW
N.C. CONTACT
PIN 1 - 8C BLUE/WHITE
PIN 2 - 07 RED (X2)
LED 2 - POWER ON/LSS LIGHT
PIN X1 - 7A GREEN
PIN X2 - 02 WHITE
DEUTSCH
4 5
BACK VIEW
2
3
1 8
7
6
PIN 5 - 10E (BLUE/BLACK)
PIN 6 - 8C (BLUE/WHITE)
PIN 7 - 7A (GREEN)
PIN 8 - 02 (WHITE)
PIN 1 - 07 (RED)
PIN 2 - 3A (BLUE)
PIN 4 - 14E (BLACK)
PIN 3 - 13 (ORANGE)
PIN 1 - 3A BLUE
TO CHARGER CUTOUT
PIN 2 - 05 ORANGE/BLACK
