Skyjack SJ 3215 - Control Module and Beeper Diagram (CE)

SJIII Compact Series
143909
SKYJACK, Page 26
A B C D E F G H
V
Z
Y
X
W

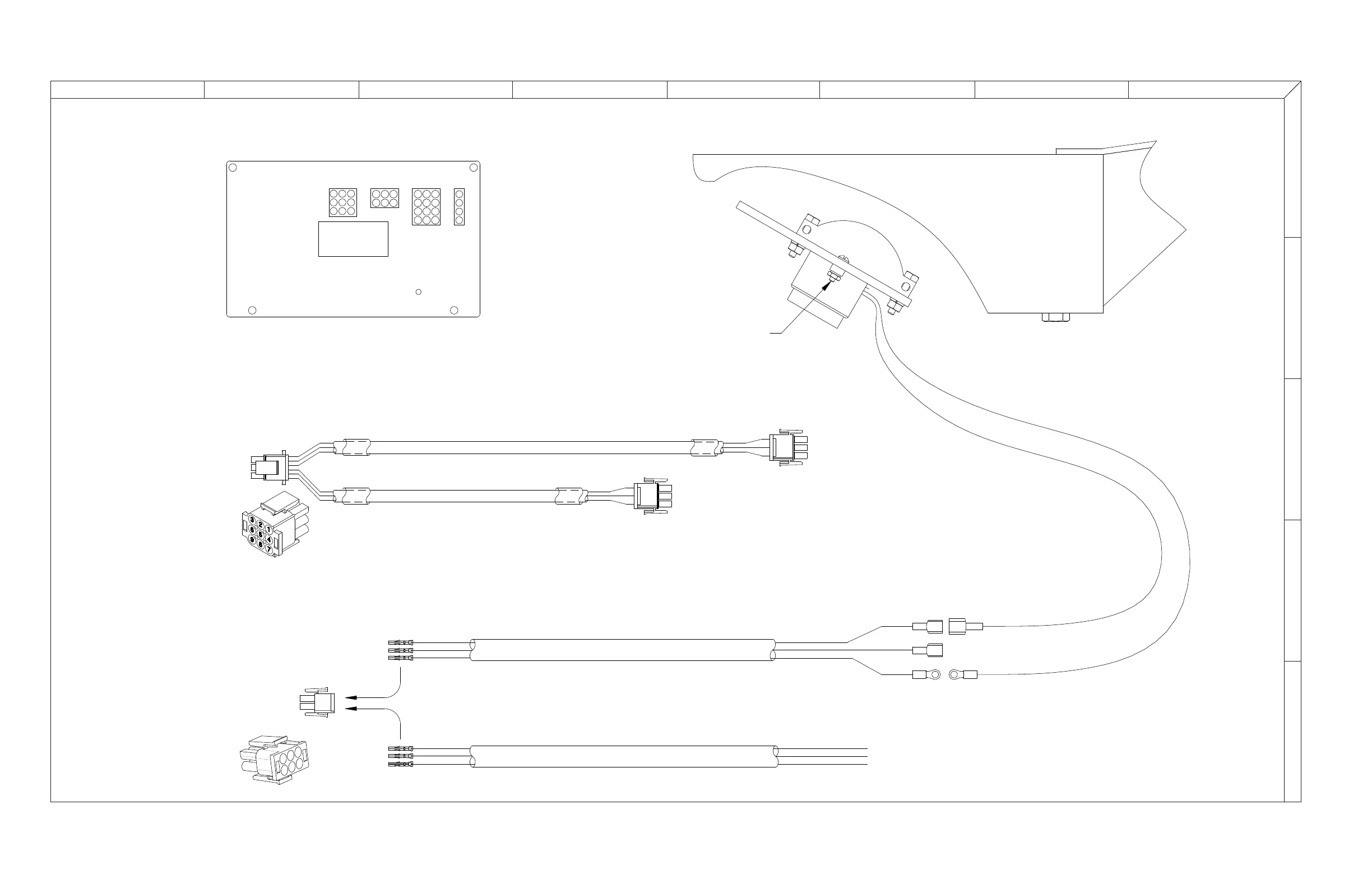

3.20 Control Module and Beeper Diagram (CE)
M130612AE
TO CONTROL MODULE - P4
PIN 1 - N/U
PIN 2 - 60A GREEN
PIN 3 - 28B GREEN
PIN 4 - N/U
PIN 5 - N/U
PIN 6 - 910 BLACK
PIN 7 - 900 WHITE
PIN 8 - 902 WHITE
PIN 9 - 910A BLACK
TO CONTROL MODULE - P3
PIN 1 - 22 BLACK
PIN 2 - 29 GREEN
PIN 3 - 60 GREEN
PIN 4 - 28 BLACK
PIN 5 - 02 WHITE
PIN 6 - 28E WHITE
5
6
2
3
4
1
TO ANGLE TRANSDUCER
PIN 1 - 910 BLACK
PIN 2 - 28B GREEN
PIN 3 - 902 WHITE
CONNECT GROUND WIRES
BEEPER
29 - RED (+)
02 - BLUE (-)
N/U - BLACK (-)
TO ELECTRICAL PANEL
29 GREEN (TO BEEPER)
22 BLACK (TO LIGHT)
02 WHITE
22
02 02
29 29
TO GROUND
TO PRESSURE TRANSDUCER
PIN 1 - 910A BLACK
PIN 2 - 60A GREEN
PIN 3 - 900 WHITE
1-ST LEVEL INSIDE SCISSOR
CM1
OVERLOAD SENSING MODULE (CE)
P4 P3 P2 P1
