SECTION 2, Page 15SJ 600, 800 & 1000 Series
122883AH
May 2002
Base Control Box/Station (CE)

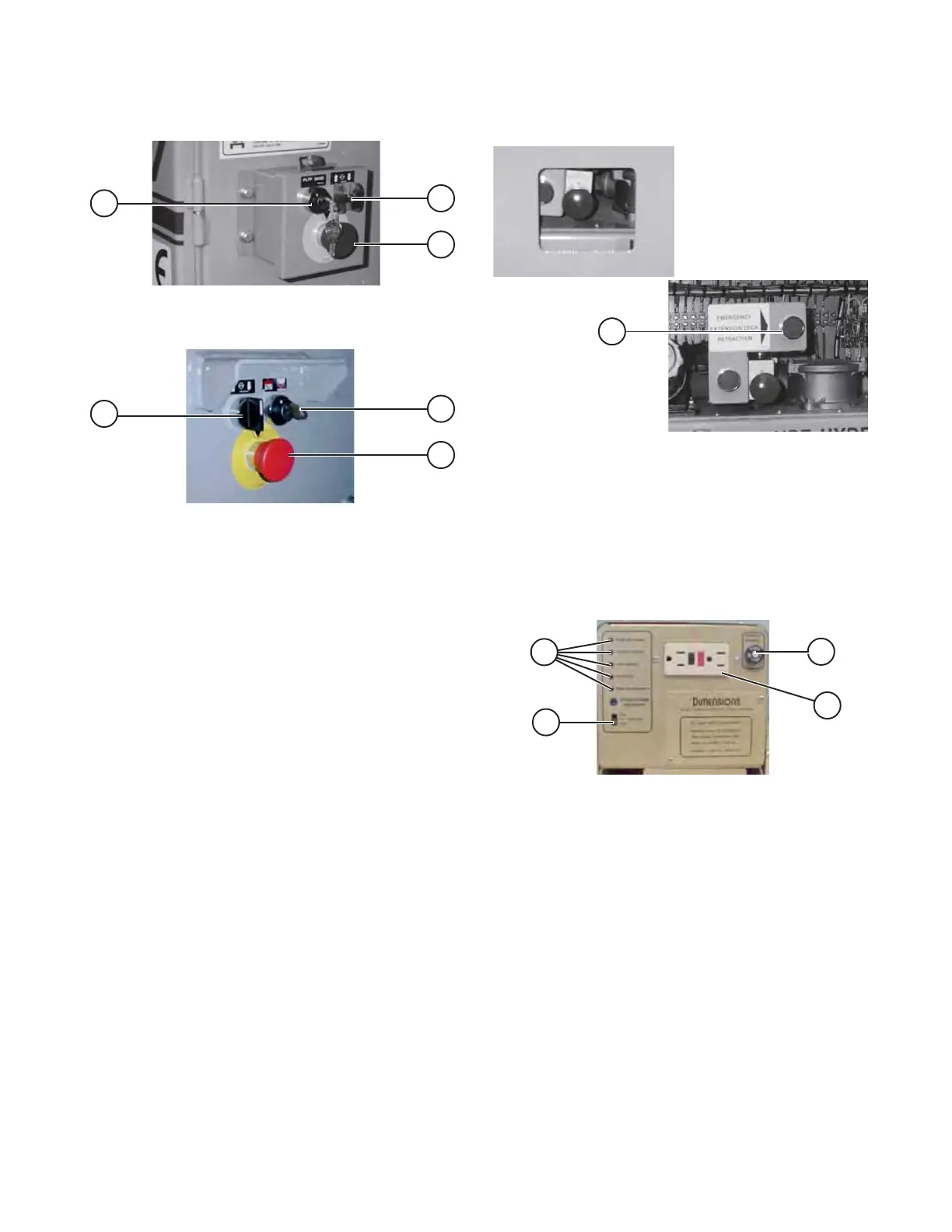

Figure 2-4A. Base Control Box and Labels
(Located at rear of hydraulic/electric side cabinet)
Figure 2-4B. Base Control Station and Labels
(Located at rear of hydraulic/electric side cabinet)
Base Control Box/Station - This control station is
found on the rear of the hydraulic/electric cabinet or
on the rear of the base. It contains the following
controls:
1. Platform/Base Select Key Switch - Key to
“PLATFORM” position directs power to the operator’s
control box on the platform. Key to “BASE” position
directs power to the base control box/station.
2. Platform Up/Down Selector Switch - This toggle
switch raises or lowers the platform to a desired
height.
3. Emergency Stop Button - This red “mushroom-
head” shaped button switch is designed to disengage
power to the platform controls.
Emergency Powered Extension
Platform Retraction System (CE)
(1000 Series only)
Figure 2-5. Powered Platform Emergency Retraction
Push-Button
1. Powered Platform Emergency Retraction
Push-button - This switch, when depressed, activates
the platform retraction system on the platform in the
event of an electrical system failure or an emergency.
1500W AC Inverter (Option)
Figure 2-6. 1500W AC Inverter
Inverter - The inverter is located on the base of the
machine, it has the following controls.
1. ON/OFF Switch - This slide switch will activate or
terminates inverter function.
2. Status LEDs - These LEDs indicate the operating
or fault status of the inverter .
3. 15 Amp Circuit Breaker - In the event of a power
overload or circuit grounding, this circuit breaker will
pop out.
4. GFCI Outlet - During inverter operation, this
outlet provides AC power.
2
1
3
1
2
1
4
3
1
2
3
