Page 84 Mid Size & Full Size RTs
Engine Powered
2
3
4
1

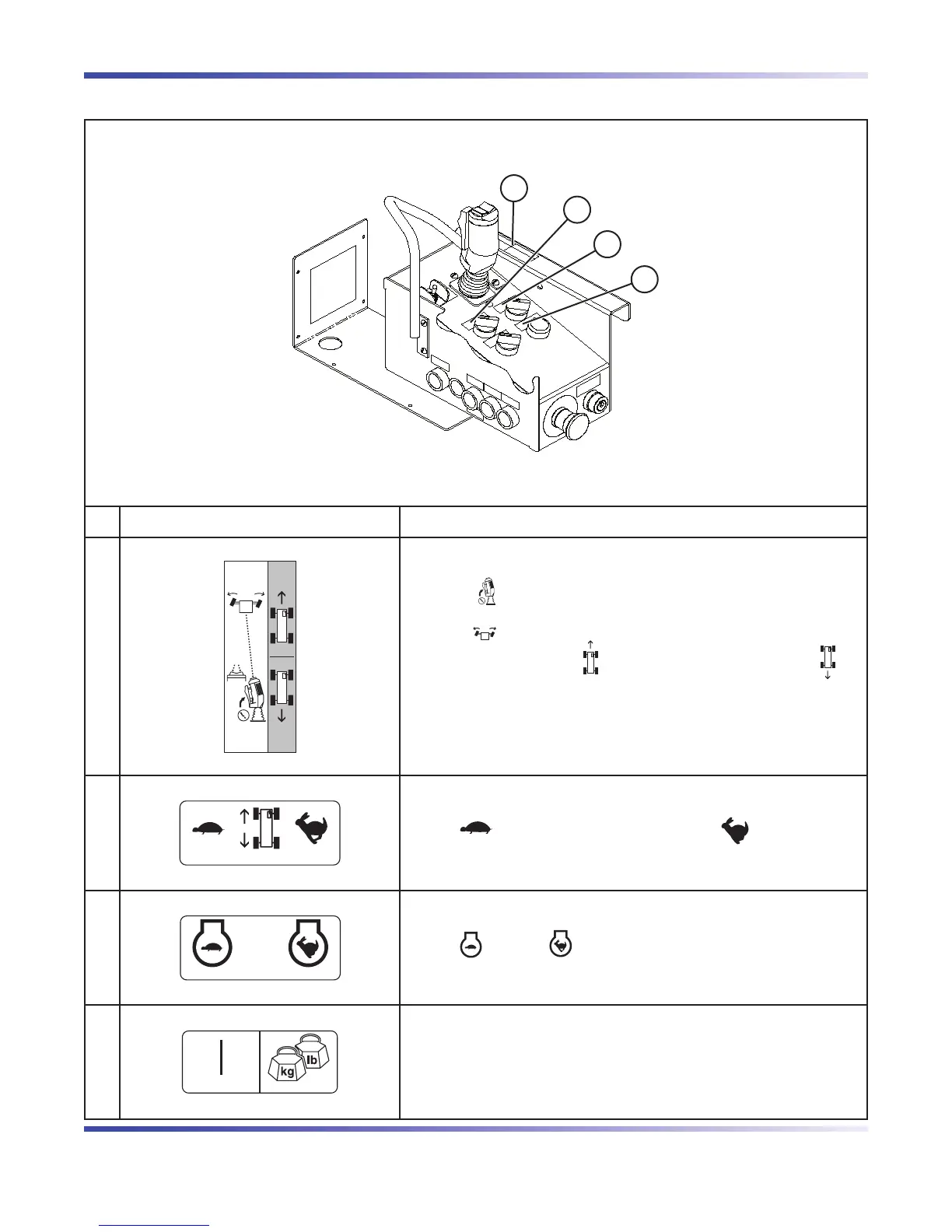

No. Label Pictorial Description
1
Controller Operation
Squeeze “ ” trigger to enable controller.
Operate “ ” rocker switch to steer.
Move controller forward “
” to drive forward or backward “ ”
to drive reverse..
2
Low/High Speed Range
Select “
” for low speed (high torque) or “ ” high
speed (low torque).
3
Low/High Throttle
Select “
” low or “ ” high engine speeds.
4
Power On/Overload Indicator
Continuous illumination indicates upper control availability.
Flashing indicates aerial platform is overloaded.
Platform Control Console
