Section 2- Familiarization Vertical Mast Series
FAMILIARIZATIONFAMILIARIZATION
Section 2 - Familiarization
2.1 Familiarization of SJ12/16 Series
2
1
2
1
2
1
2
WARNING
Aerial Platform Familiarization should be given only to individuals who are QUALIFIED And
TRAINED to operate an aerial platform.
Do not operate this aerial platform without proper authorization and training. Failure to avoid
this hazard could result in death or serious injury.
It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the aerial platform.

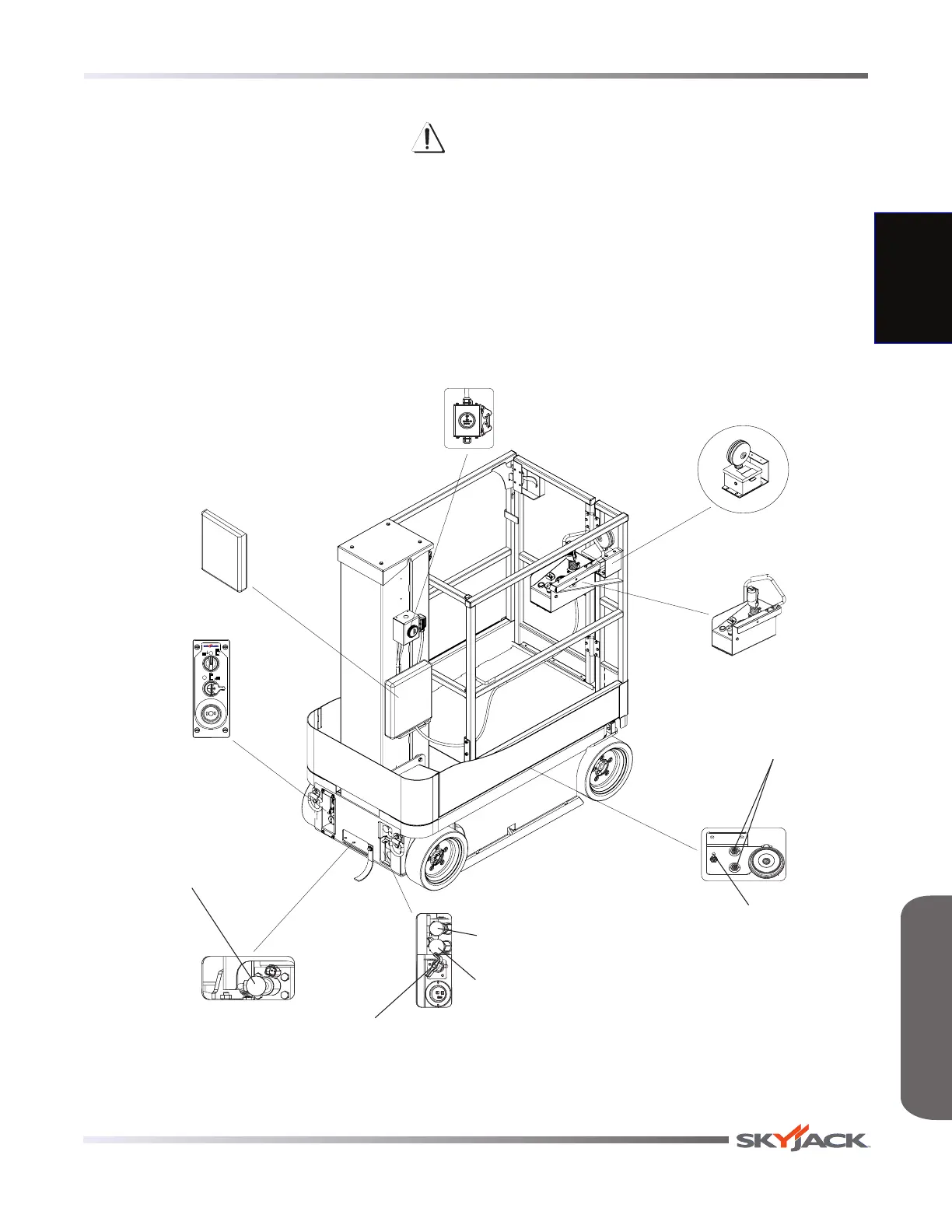

Outdoor Option Flashing
Light (If Equipped)
Manual
Box
Platform Control
Console
Main Power
Disconnect
Base
Control
Console
Emergency
Lowering Valve
Brake Hand
Pump
Brake Auto Reset
Valve Plunger
Hourmeter
Circuit
Breaker
Diagnostic
Switch
Vertical Mast
