Skyjack SJ16 Operating Manual

Section 3 - Operation Platform Traversing Procedure
3.10 Platform Traversing
NOTE
An interlock limit switch will cutout drive
functions when the platform is not fully
retracted.
1. To traverse platform, step on the foot pedal on
the platform (item 1) and grasp the platform
repositioning handle (item 2) then carefully push/
pull the platform until desired location is reached.
2
1

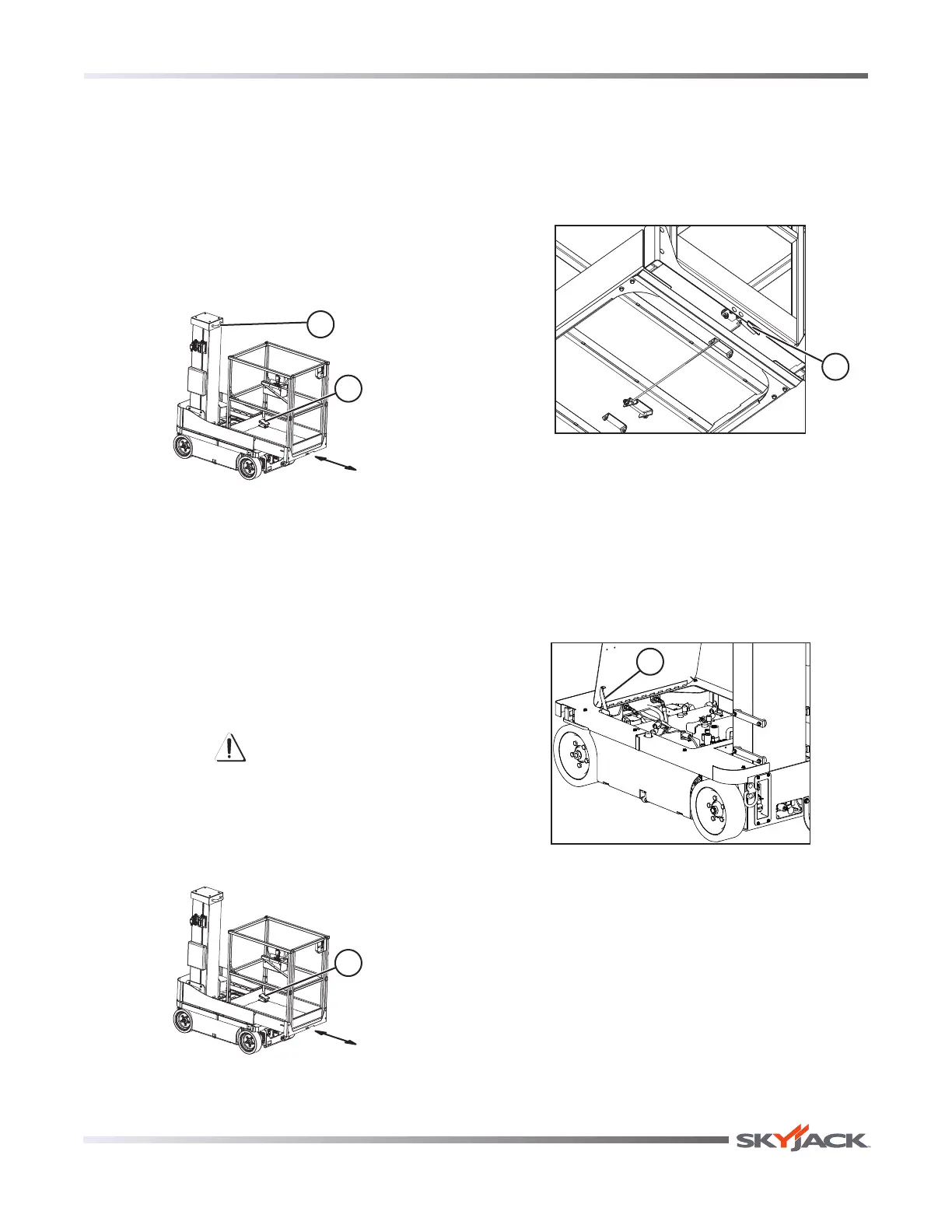

Figure 3-11. Traversing Platform
2. Ensure foot pedal (item 1) rests in one of the
locking slots.
3.11 Accessing the Hydraulic/Electrical
Compartment
1. Ensure aerial platform is on firm and level ground.
2. Fully lower the platform into stowed position.
CAUTION
The following procedure must be done
from outside of the platform.
3. Depress foot pedal on the platform (item 1),
then pull platform as far as possible towards
maintenance position.
1
Figure 3-12. Traversing Platform
4. Locate platform maintenance locking mechanism
underneath the platform.
5. Unlatch maintenance locking mechanism by
pulling and holding the handle (item 2), then pull
the platform fully to the maintenance position.
2
Figure 3-13. Maintenance Lock
NOTE
An interlock limit switch will cutout
all functions when the platform is in
maintenance position.
6. Open hydraulic/electrical compartment cover and
properly install the prop bar (item 3).
3
Figure 3-14. Prop Bar
Vertical Mast
Page 45
TM

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
