Major Components Section 3 - Operation

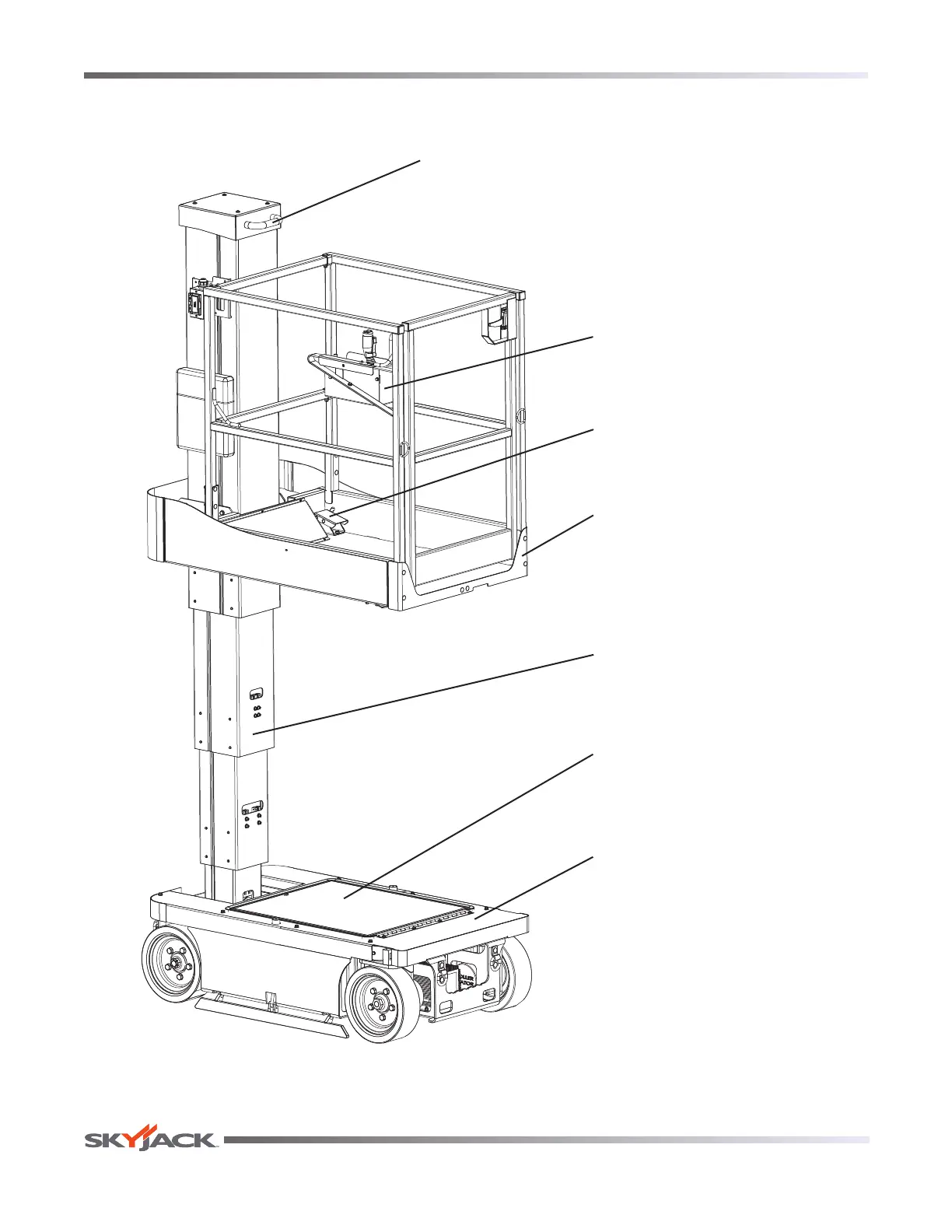

3.2 Major Components
SKYJACK Vertical Mast Series Aerial Platform
Platform Control Console
Platform
Platform Repositioning Handle
Base
Foot Pedal
Hydraulic/Electrical
Compartment
Access Door
Mast - Lifting Mechanism
Page 34
Vertical Mast
TM
