Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
2.2-8 Platform Control Console
This removable control console is mounted at the right
front of the platform. It contains the following controls:
1
2
3
5
4

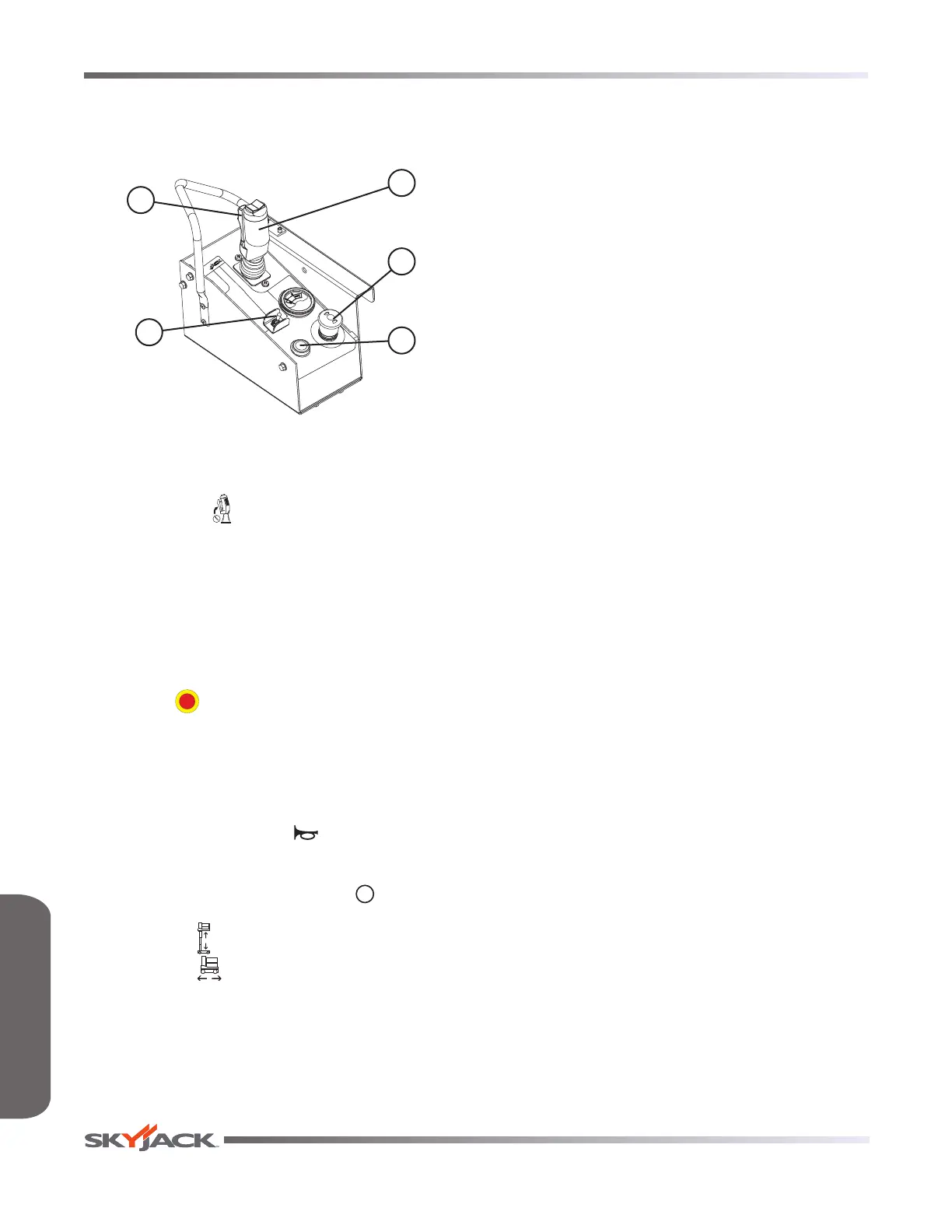

Figure 2-7. Platform Control Console
1. Lift/Drive/Steer Enable Trigger Switch - This
momentary “ ” switch energizes the controller.
It must be held depressed continuously while
engaging either the lift/drive or steer functions.
2. Lift/Drive/Steer Controller - This one-hand lever
controls lift/drive and steer motions. Internal
springs return it to neutral when controller is
released.
3. Emergency Stop Button/Operation Light - This
button “ ”, when depressed, disconnects power
to the control circuit. The operation light indicates
upper control availability. It glows when both
emergency stop buttons on the platform control
console and the base control console are pulled
out.
4. Horn Pushbutton - This “ ” pushbutton sounds
an automotive-type horn.
5. Lift/Off/Drive Switch - Selecting “ ” off position
disconnects power from both lift and drive circuits.
Selecting “ ” lift position energizes the lift circuit.
Selecting “ ” drive position energizes the drive
circuit.
Page 16
Vertical Mast
TM
