Skyjack SJ16 Operating Manual

Section 2 - Familiarization Visual & Maintenance Inspection
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
• Steer Cylinder Assembly
- Ensure steer cylinder assembly is properly
secured and there are no loose or missing
parts.
• Motor Controller
- Ensure the controller is properly secured
and there is no visible damage.
- Ensure there are no loose wires or missing
fasteners.
• Tilt Sensors
- Ensure tilt sensors are properly secured
and there is no visible damage.
• Limit Switches
- Ensure limit switches are properly secured
with no signs of visible damage and
movement is not obstructed.
2. Close the compartment access door and latch
in place.
3. Push the platform back to its operating position
and latch in place.
2.3-8 Lifting Mechanism
• Mast Assembly
- Ensure mast assembly shows no visible
damage and no signs of deformation in
weldments.
1. Complete Section 2.4 - Function Tests.
2. Raise the platform.
• Wear Pads
- Ensure all bolts are tight, there is no visible
damage to the wear pads and that no parts
are missing.
• Chains
- Ensure there are no missing parts, and
all bolts are tight with no signs of visible
damage.
- Ensure chains are securely anchored.

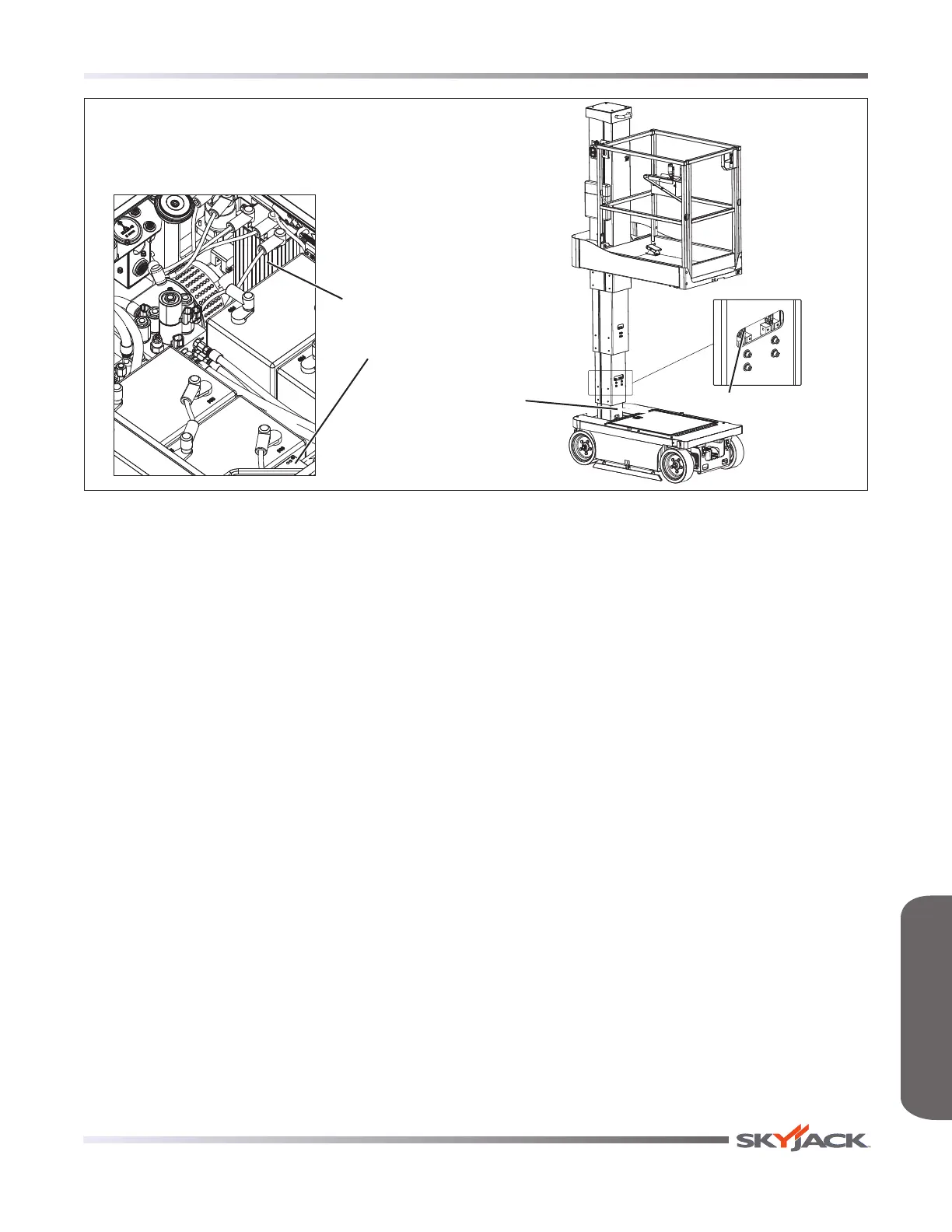

Motor Controller
Tilt Sensors
Mast Assembly
Chains (Front)
Vertical Mast
Page 21
TM

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
