Skyjack SJ16 Operating Manual

Labels Section 5

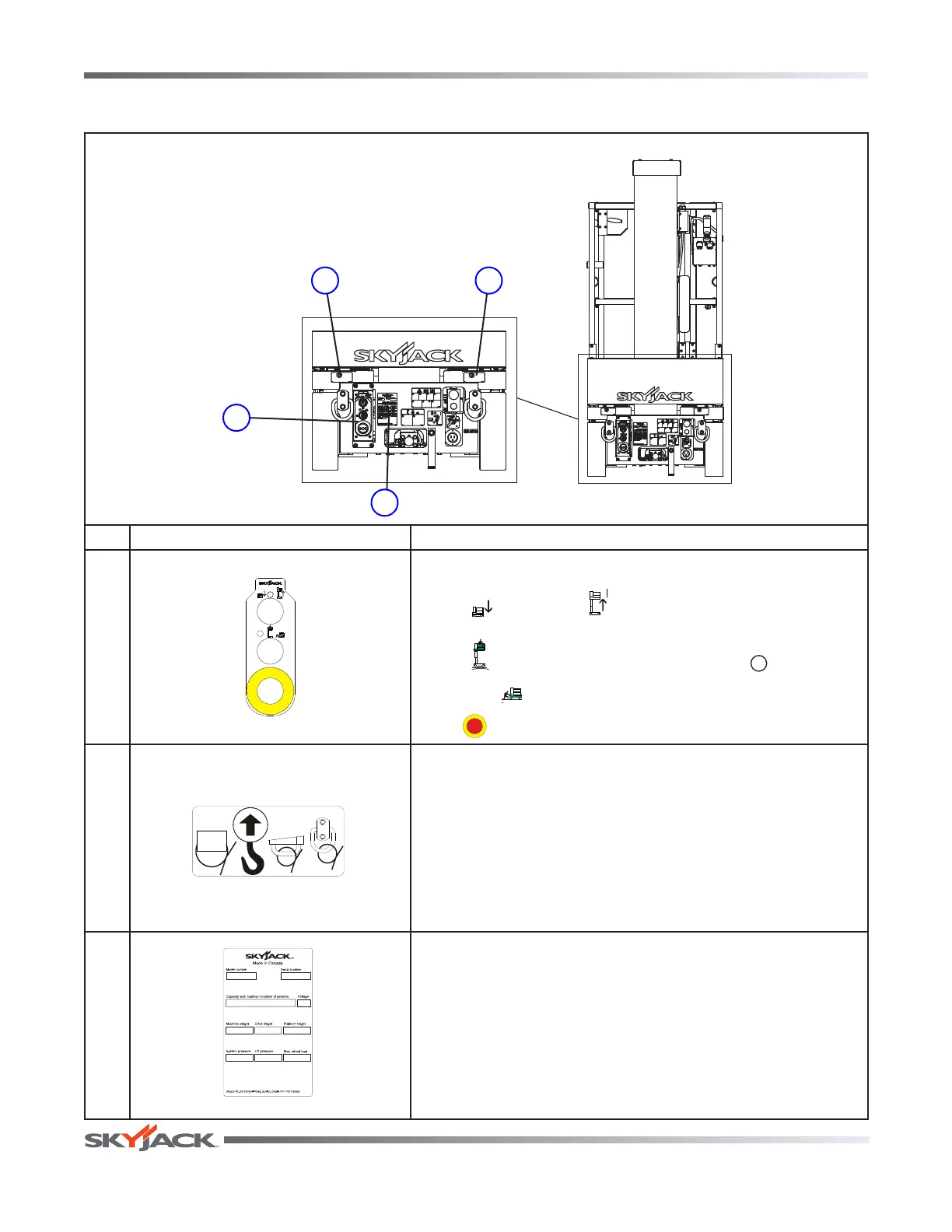

Labels - Models SJ12 & SJ16
Rear View
Nº
Label Pictorial Description
1
Base Controls
Select “ ” to lower or “ ” raise platform.
Select “ ” platform to enable platform controls, “ ” off to disable
controls or “ ” base to enable base control console.
Push “ ” to disable controls.
2
Lift and Tie Down Points
Only use these points for lifting or tying down.
3
Serial Plate*
Product identification and specifications.
*Serial plates will vary, may not be as shown.
22
1
3
Page 58
Vertical Mast
TM

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
