Skyjack SJ40 T+ - Jib Valve Port Identification - SJ45 T

64
SJ40 T+, SJ45 T+ 238273AAA
Section 3 – System Component Identification and Schematics Jib Valve Port Identification - SJ45 T+

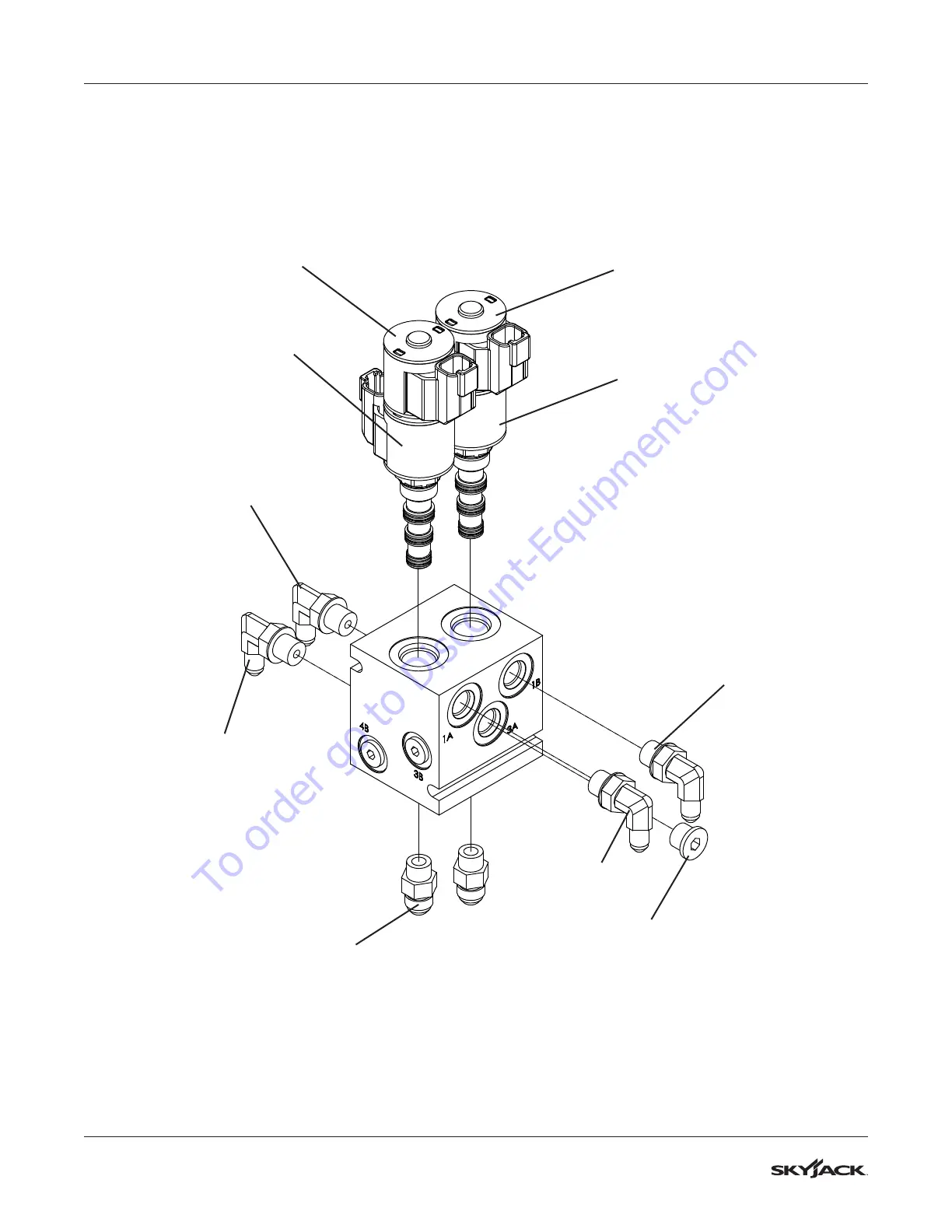

3.11 Jib Valve Port Identification - SJ45 T+
2A
To Bulkhead #2
1A
To Bulkhead #2
4(T)
To Bulkhead #1
2B
To Jib Cylinder
1B
To Jib Cylinder
3(P)
To Bulkhead #1
4H-36
Platform Rotate Left Valve
4A-34
Jib Down Valve
4H-37
Platform Rotate Right Valve
4A-35
Jib Up Valve
