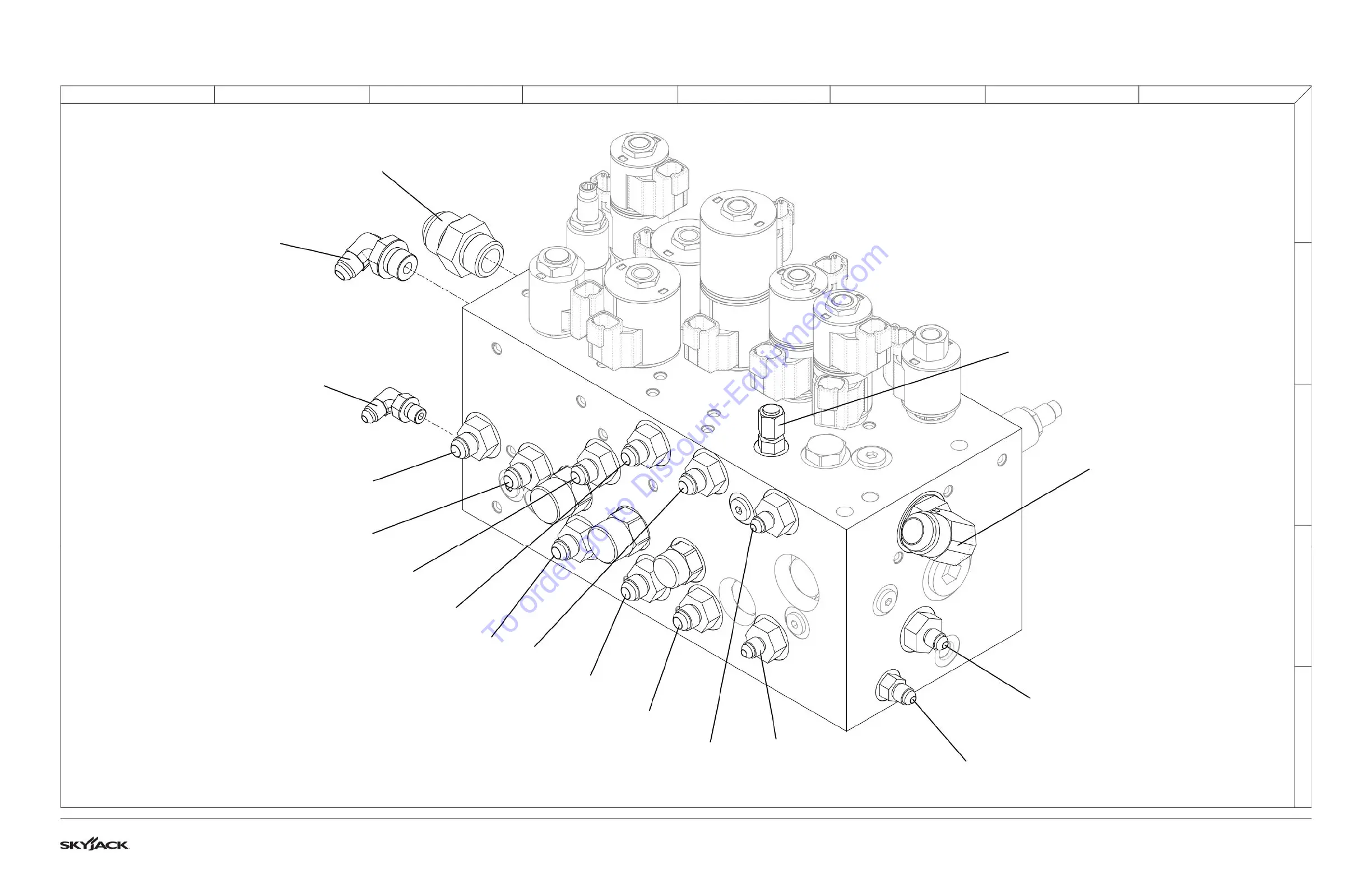

3.13 Main Manifold Port Identification
M211621AA-1
PP
To Bulkhead (Main Boom)
LS
To System Pump
(with generator option)
PLB
To Master/Slave Cylinders
PLA
To Master/Slave Cylinders
LB
To Lift Cylinder
RB
To Swing Drive
LA
To Lift Cylinder
RA
To Swing Drive
SB
To Steering Cylinder
P1
To High Pressure Filter
BLS
To Brake Manifold
P2
To Emergency Power Unit
EB
To Extension Cylinder
EA
To Extension Cylinder
SA
To Steering Cylinder
GP1
Test Port
T
To Hydraulic Tank
