Skyjack SJ40 T+ - Limit Switch Connections

229038AAA
A B C D E F G H
V
Z
Y
X
W
74
SJ40 T+, SJ45 T+
238273AAA
LS2 - Fly Stowed Limit
Switch
LS1 - Direction Sensing
Limit Switch
Base Control Box
Terminal Strip
Black (09)
Black/White
(17)
09
17 59
09
29
09 09 09
121
122
LS4 - Boom Down
Limit Switch
LS3 - Main Boom
Limit Switch
LS5 - Fly Out
Limit Switch
Black (09) Black (09)
Black (09)
Black (09)
Black/White (29) Black/White (59)
Blue/White (121)
Black/White
(122)

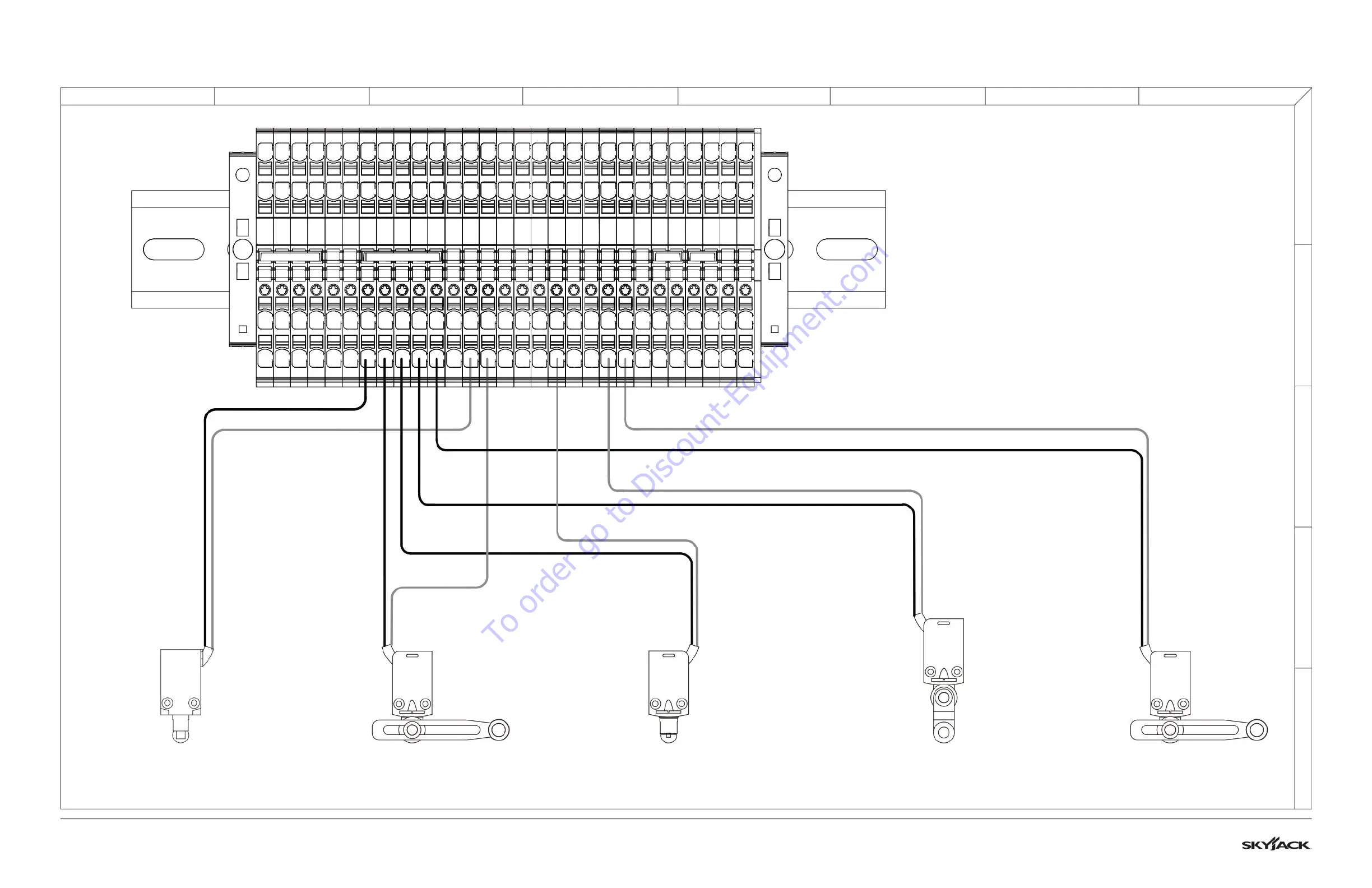

3.20 Limit Switch Connections
M68650AA
