Page 16 December 2007
Rough Terrain Scissors
Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.

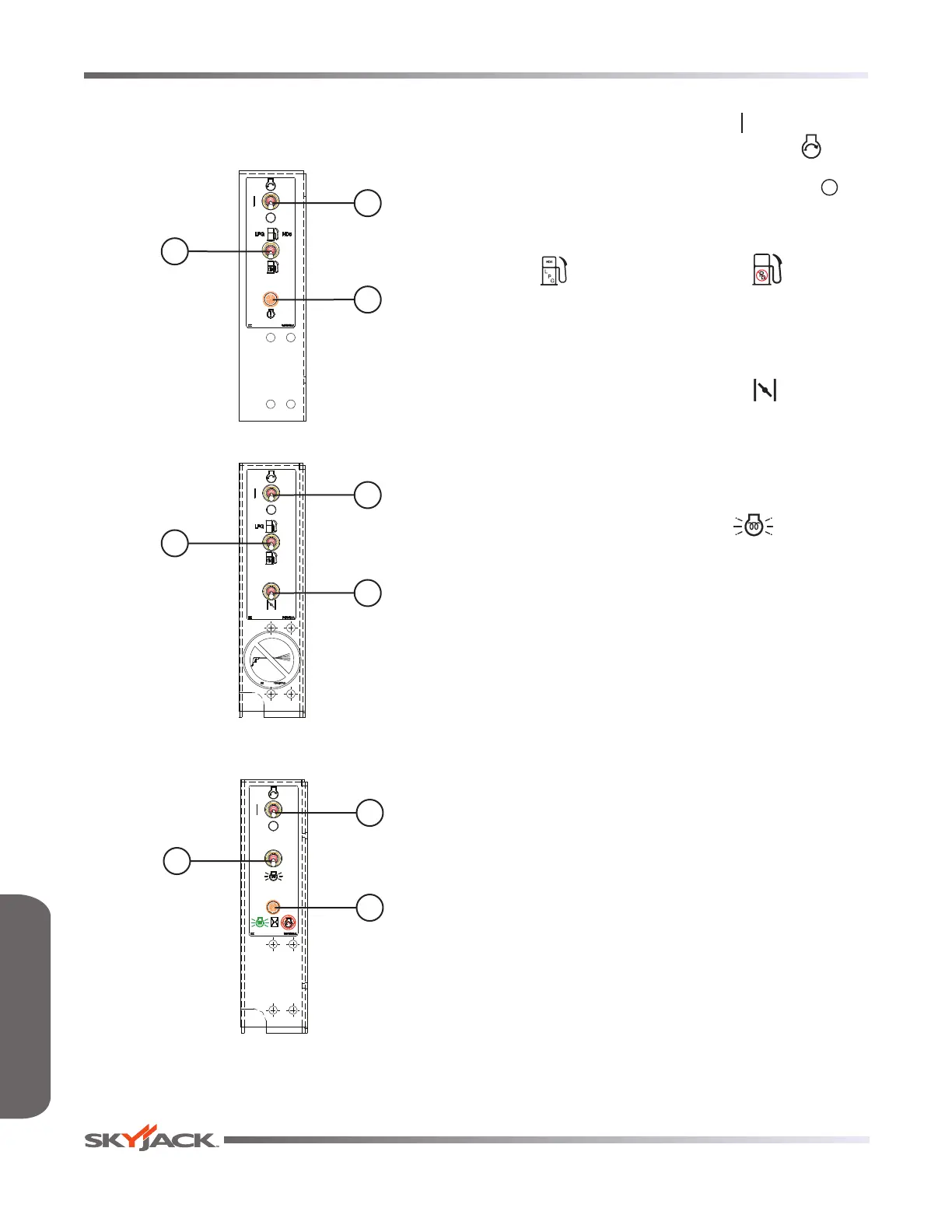

2.2-8 Engine Control Console
This control console is attached to the engine tray. It
contains the following controls:
1
3
2
Figure 2-7. Engine Control Console - Dual Fuel
1
2
4
Figure 2-8. Engine Control Console - Dual Fuel
1
5
6
Figure 2-9. Engine Control Console - Diesel Engine
1. Engine Off/On/Start Switch - This is a three-
position switch. When in “ ” on position, it
energizes engine circuit. When in “
” start
position, it starts the engine (switch will return
to on position when released). When in “ ” off
position, it turns engine off.
2. Fuel Select Switch - Used to switch between
“
” liquid propane gas and “ ” gasoline.
3. Engine Warning Light - When engine switch is set
to on position, the amber-colored light will flash
continuously to indicate normal operation.
4. Engine Choke Switch - This “ ” momentary
toggle switch sets the choke for starting a cold
gasoline/propane engine. The choke remains fully
engaged only while the switch is selected. Choke
returns to normal position as soon as switch is
released.
5. Glow Plug Switch - This “ ” momentary
toggle switch energizes the glow plugs to aid in
starting a cold diesel engine. Glow plugs are only
active while switch is activated.
6. Glow Plug Indicator Light - This red lamp
illuminates until the glow plugs have completed
the timed heating cycle. When the lamp goes out,
the engine is ready to be started.
FAMILIARIZATIONFAMILIARIZATION
