Skyjack SJ9250 RT - Locally Concentrated Pressure (LCP); Overall Uniform Pressure (OUP)

Rough Terrain Scissors
December 2007 Page 69
Section 4 Tables

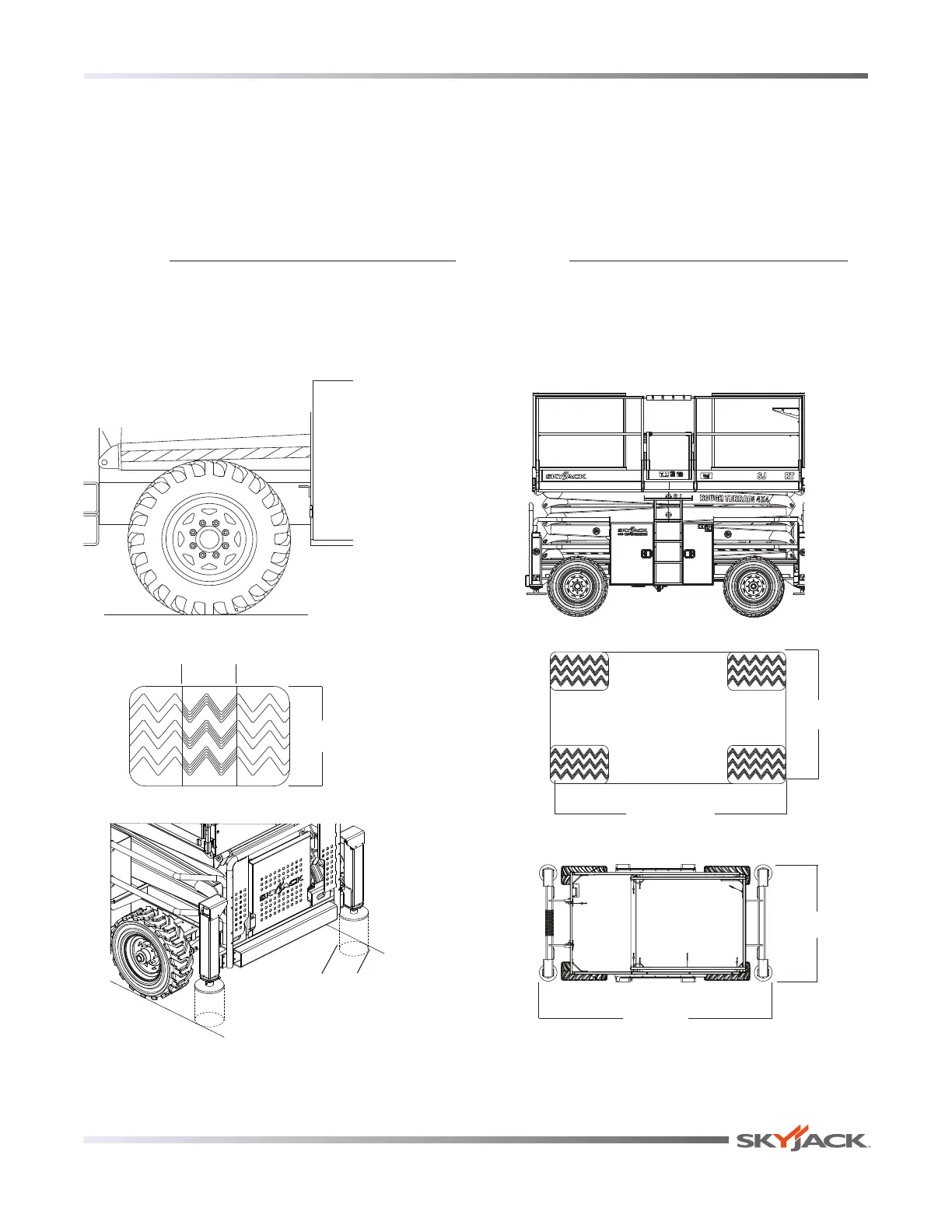

Floor Loading Pressure
Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):
Foot Print Area = Length x Width
=πr
2
Base Area = Length x Width
LCP =
Weight of Aerial Platform + Capacity
Foot Print Area x 4 (Tires)
OUP =
Weight of Aerial Platform + Capacity
Base Area
Base Width
Base Length
Length
Width
Diameter (D)
Length
Width
