Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
- Attempt to partially extend Right-Rear
Outrigger (approximately 4”).
Result: Outrigger will not extend.
- Attempt to partially extend Left-Rear
Outrigger (approximately 4”).
Result: Outrigger will not extend.
11. Lower the platform to stowed position.
Result: Lower function will operate.
12. Raise the platform 1 foot from stowed
position and partially extend Left-Front
Outrigger (approximately 4”).
- Attempt to lift the platform.
Result: Lift function will not operate.
- Attempt to drive the aerial platform.
Result: Drive function will not
operate.
- Attempt to lower the platform.
Result: Lower function will operate.
13. Platform at stowed position.
- With Left-Front Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
- With Right-Front Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
- With Right-Rear Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
- With Left-Rear Outrigger partially
extended, attempt to lift the platform.
Result: Lift function will not operate.
14. Platform at stowed position.
- Extend each outrigger until it raises the
tires up approximately 2”.
- Retract the Left-Front Outrigger until the
weight is resting on the corresponding
tire.
- Extend the Right-Rear Outrigger until it
makes contact with ground.
- Attempt to lift the platform 1 foot.
Result: Lift function will not operate.
15. Platform at stowed position.
- Extend each outrigger until it raises the
tires up approximately 2”.
- Retract the Right-Front Outrigger
until the weight is resting on the
corresponding tire.
- Extend the Left-Rear Outrigger until it
makes contact with ground.

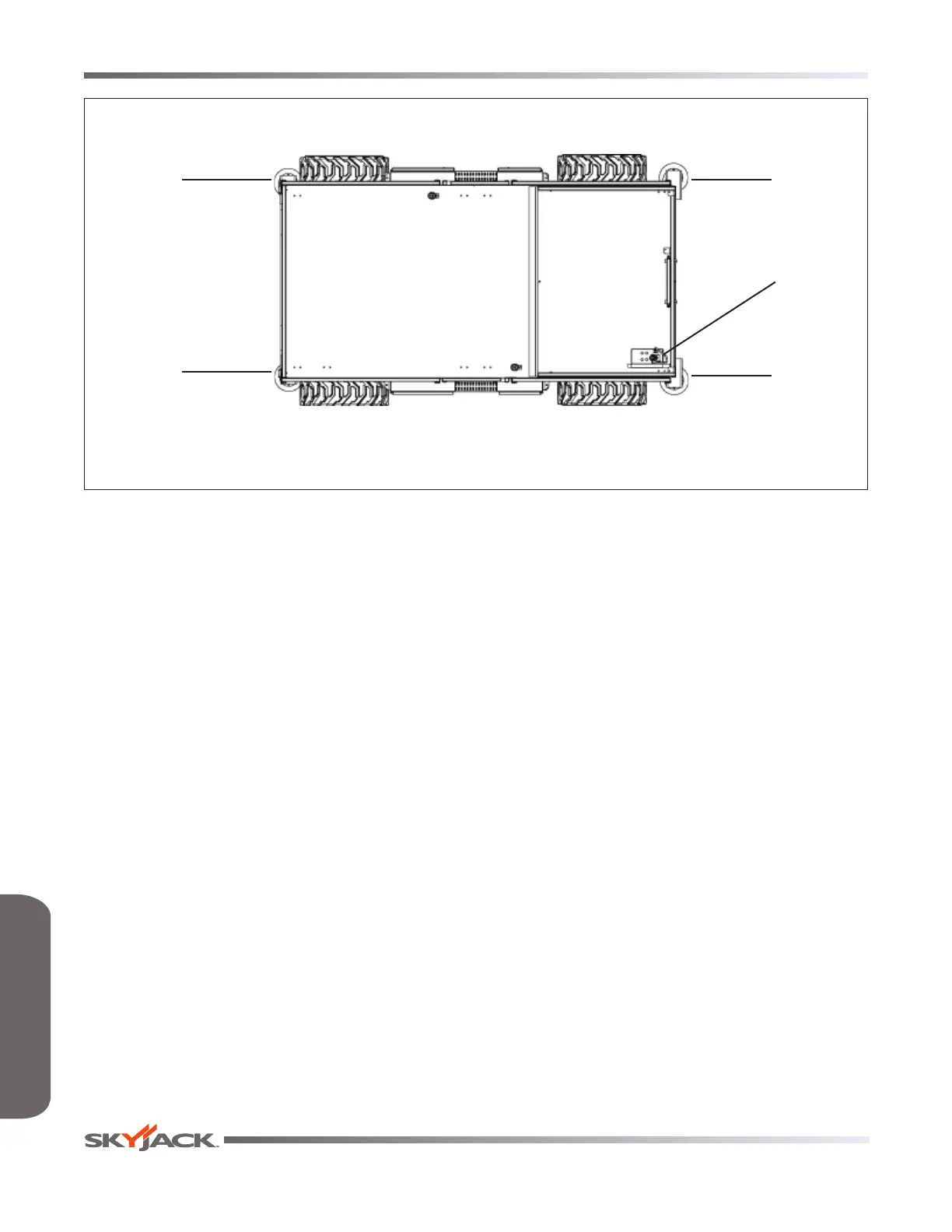

Left-Rear
Right-Rear
Right-Front
Left-Front
Platform Control
Console
FAMILIARIZATIONFAMILIARIZATION
