Assembly & Operation Manual
Trial fit fin to fuselage.
Trial fit rudder to fin. Check clearance on
belcrank.
When happy remove fin and rudder.
Glue pin hinges to rudder.
When cured glue rudder to fin.
Fit fin and rudder to fuselage.
Clamp fin to fuselage.
Check movement of rudder—check for any
slop. Slop will cause flutter and will brake fin.
This complete this section.
P-17

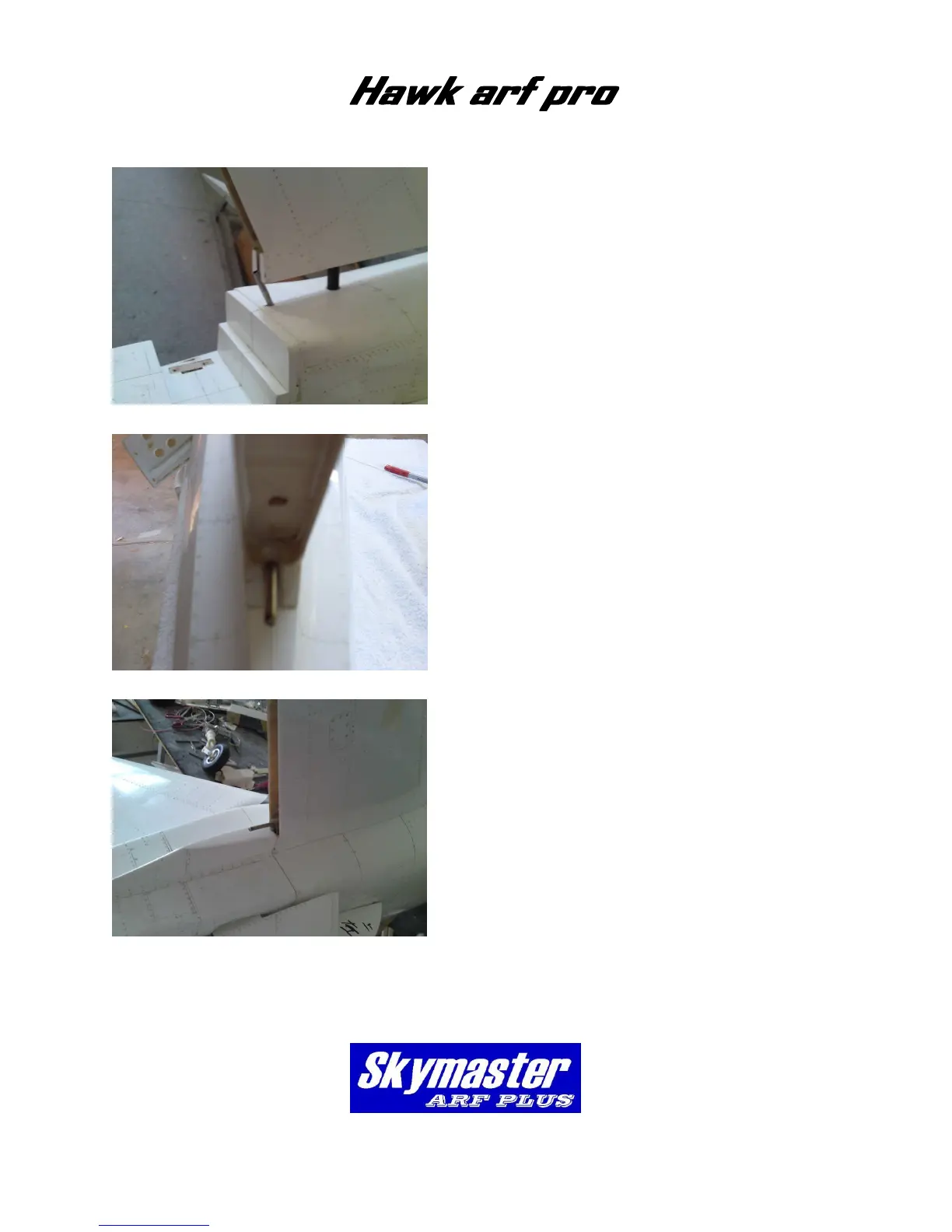

Photo 26
Photo 27
Photo 28
