Assembly & Operation Manual

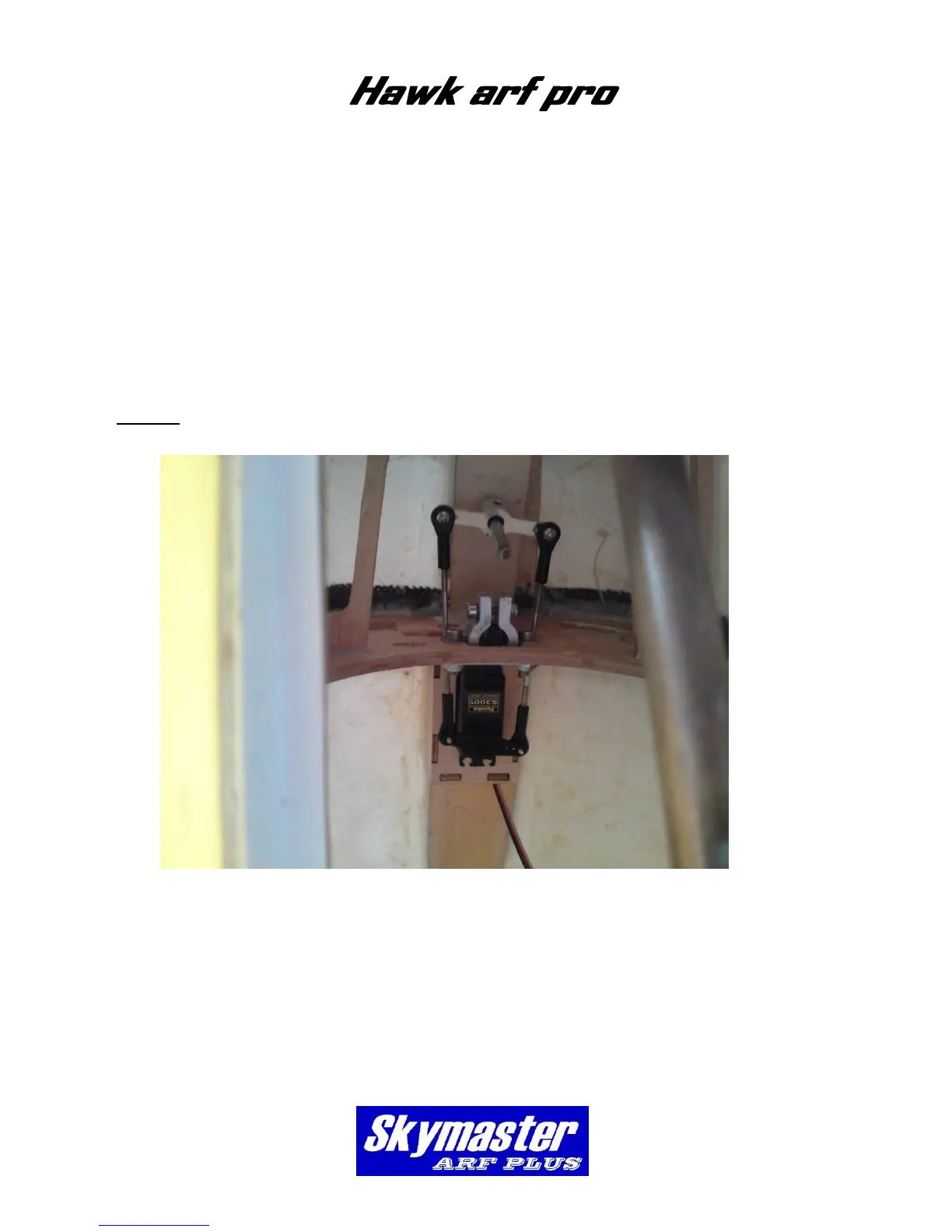

Check operation of elevator.
Make sure no slop and binding in system
Run servo wires together in harness.
NOTE : Make sure no wires can touch tailpipe. Touching tailpipe will melt wires and
create short circuit. This will lead to crash.
FIN & RUDDER
NOTE: Make sure to have some sort of protective foam on the work bench. This will
protect the paint surface from unwanted dents. Mark √ each step.
Slide belcrank wire through tube.
Cut flat sections into wire with Dremel. Secure belcrank to wire. Use loctide on grub
screws.
Fit servo to plate. Centre servo horn.
Fit push pull pushrods to belcrank.
Make sure no slop in system.
P-16
Photo 25
Photo 25
