Skymaster ARF PLUS PRO HAWK 100 - Air Diagram

AIR DIAGRAM
P-22
Assembly & Operation Manual

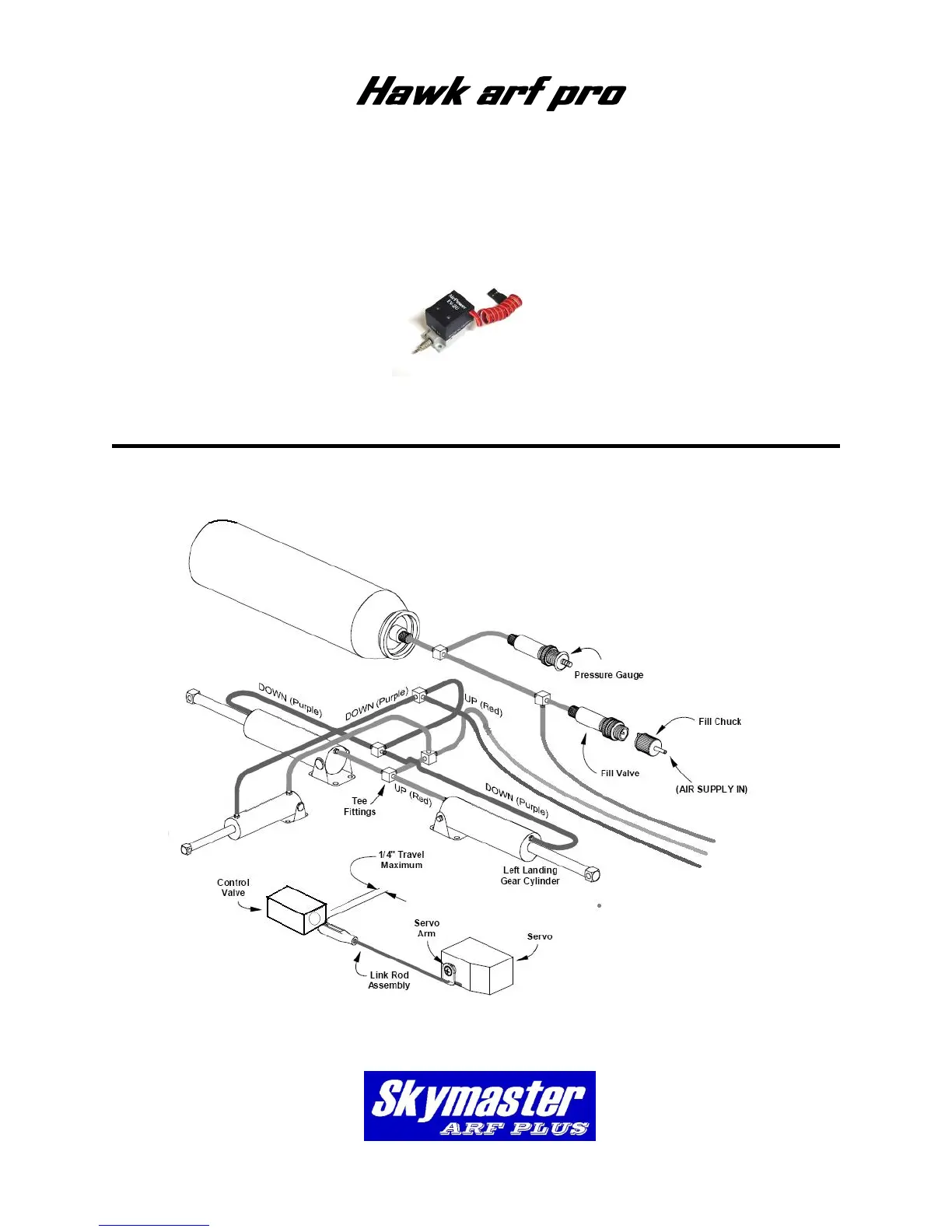

Photo 46 Diagram for retracts
For scale functions on L/G you will require additional 2 way electronic valves. The
main doors in the fuselage will stay close before and after retraction. This can eas-
ily be programmed together with EV5U.
Photo 45 2 way
