Assembly & Operation Manual
STABILIZER
NOTE: Make sure to have some sort of protective foam on the work bench. This will
protect the paint surface from unwanted dents. Mark √ each step.
Fit 4 x L-brackets to 2 x 8711 servos. Servo’s mirror image of each other.
Fit servo horns and adjust travel and sub-trim with TX.
Check that all bolts of elevator bearing blocks are tight. Use lock nuts and loctide if
needed.
Bolt elevator horn to elevator. Use lock nuts.
Bolt elevator to bearing blocks mounted to fuselage. Use lock nuts.
Make up to identical elevator pushrods. Use bearing mount pushrods.
Fit pushrods to servo horns and elevator horn.
Use AMP—meter to setup neutral position and travel. Make sure servo’s do not
fight each other.
Fit sliding discs over elevator brace.
Fit servo cover and guide discs between sliders. When happy secure cover and
sliders with 2mm screws.
P-15

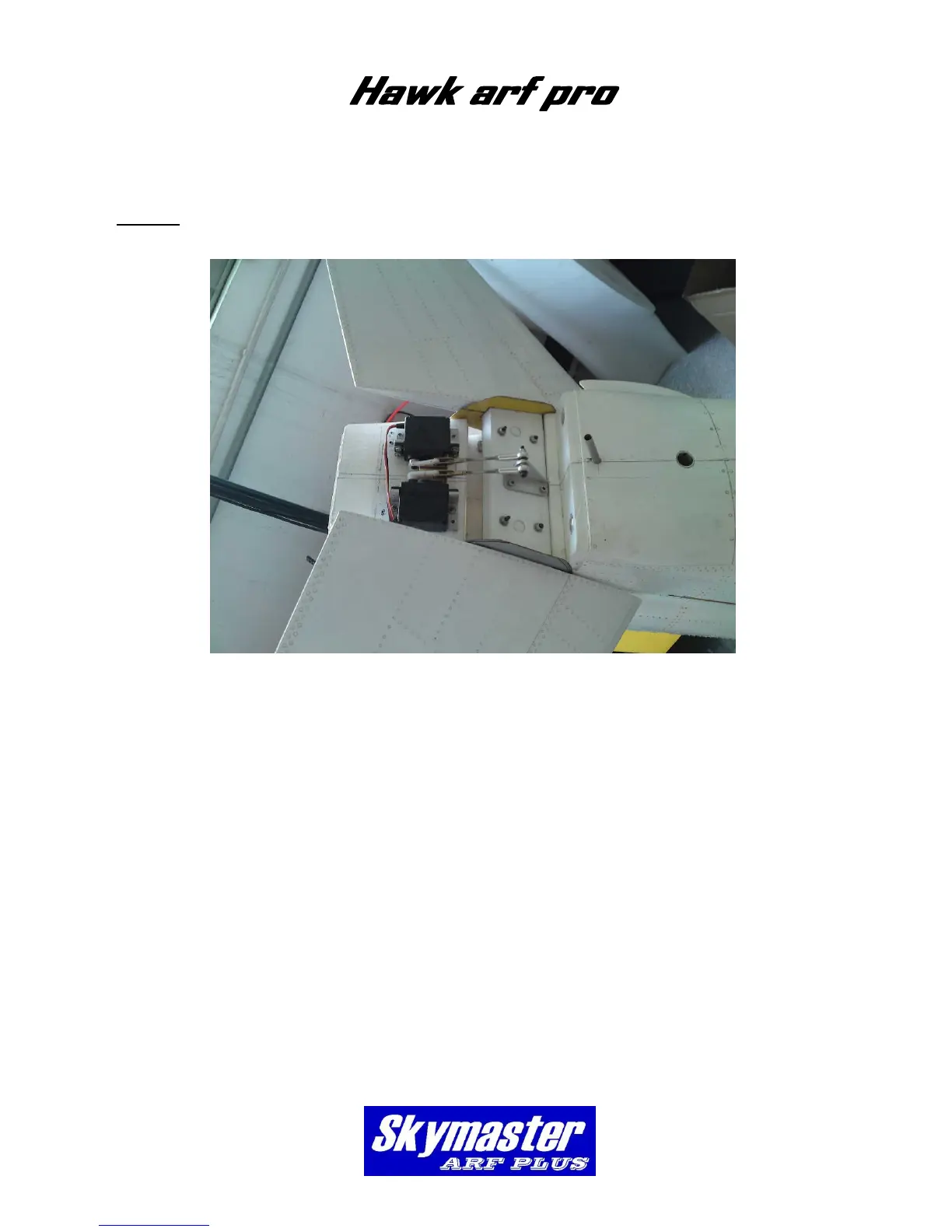

Photo 24
