Fit 2 x L-brackets to 8711 servos.
Secure servo horn to servo and set travel with TX.

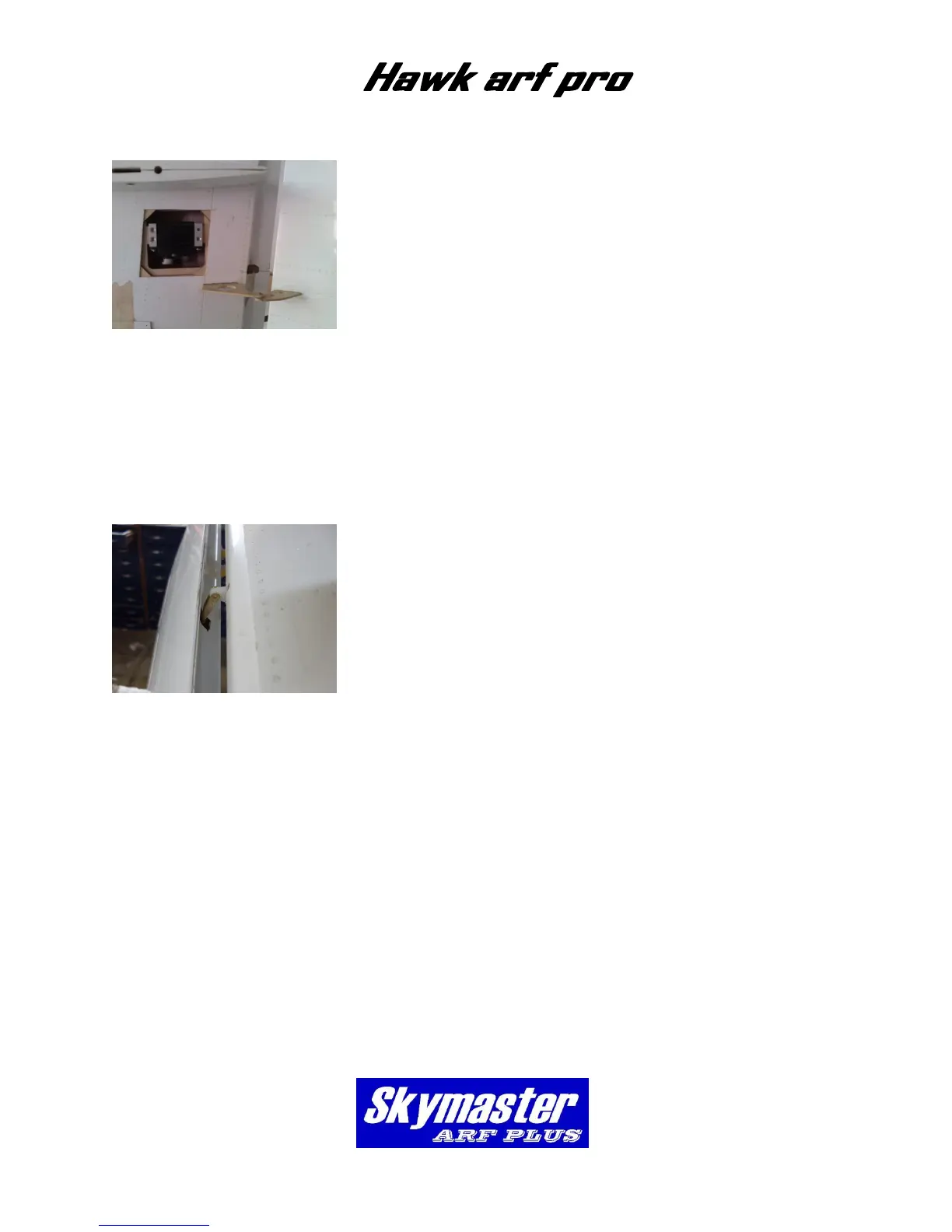

Fit servo to ply mount with horn facing down.
Draw line perpendicular to hinge line and mark location of flap pushrod.
Cut hole in trailing edge of wing and feed pushrod through hole.
Secure pushrod to servo horn.
Mark location for flap horn on leading edge of flap. (Note: Make sure flap can travel at least
60 degrees down and fully up.
Mark location for horn and cut slot in flap.
Glue horn in position. When cured check operation of flap.
Feed servo wires though ribs until it reaches the rot rib.
Cut hole for servo wires and secure with cable ties.
Repeat for other wing.
Fit servo covers.
Trial fit wings to fuselage and mark location of hole for servo wires.
Cut hole in fuselage for servo wires.
This complete this section.
P-14
Assembly & Operation Manual
Photo 22
Photo 24
Photo 23
