Battery Voltage Meter
The user can check battery's total voltage, the highest voltage, the lowest voltage and
each cell's voltage.
Please connect the battery to the charger main battery lead to battery socket and balance
wires to balance socket.
B A T T / P R O G R A M
B A T T M E T E R
4 . 2 0 4 . 1 9 4 . 1 9 V
4 . 1 8 4 . 1 8 4 . 1 9 V
M A I N 2 5 . 1 3 V
H 4 . 2 0 0 V L 4 . 1 8 2 V
Press the START/ENTER to enter the Lithium
Battery Meter program.
The screen indicate each cell's voltage.
The screen indicate the total voltage, the highest
voltage and the lowest voltage.
START
ENTER
DEC

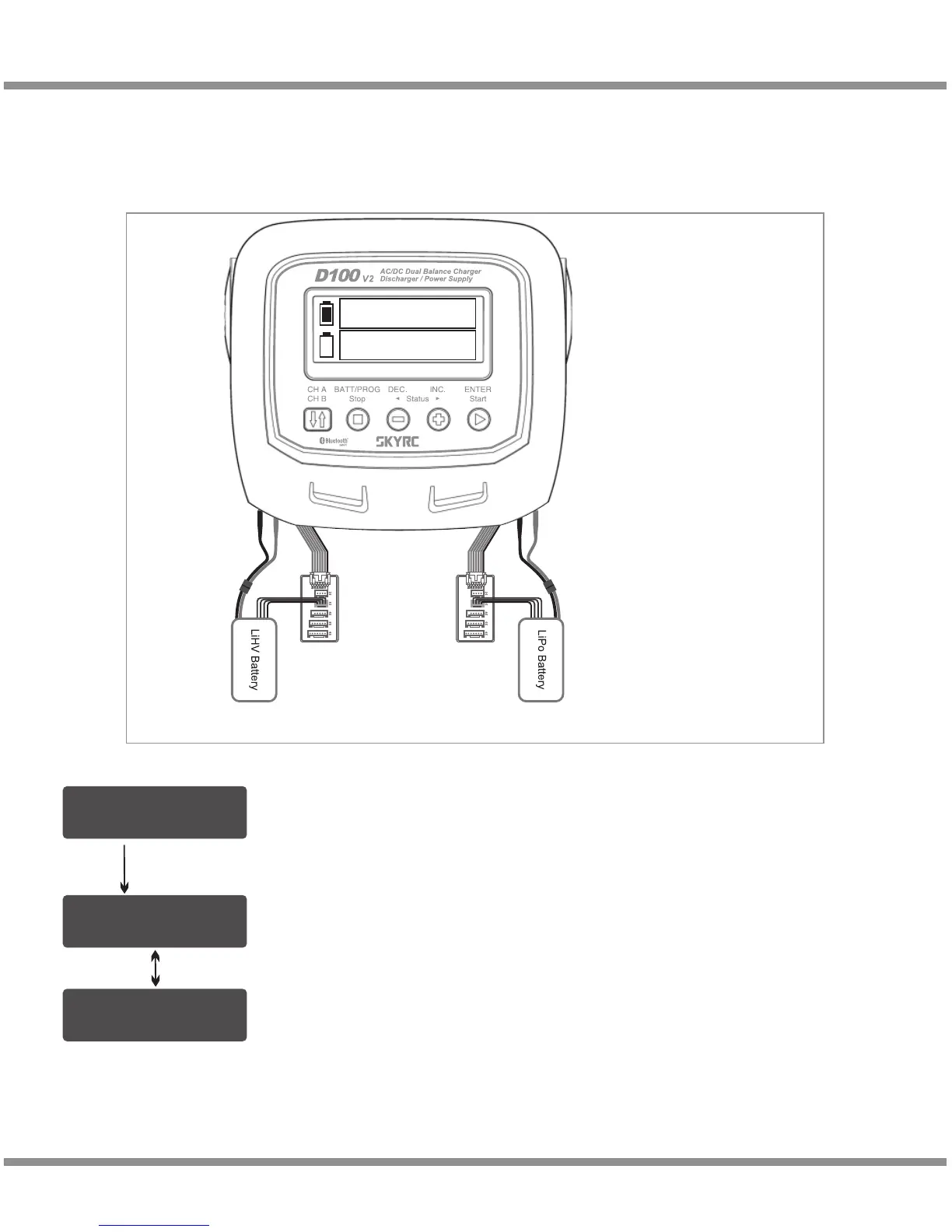

This diagram shows the
correct way to connect
your battery to check
the voltage.
INC
29 ·
A
B
4.19 4.15 4.18V
4.15 4.19 4.18V
4.19 4.15 4.18V
4.15 4.19 4.18V
