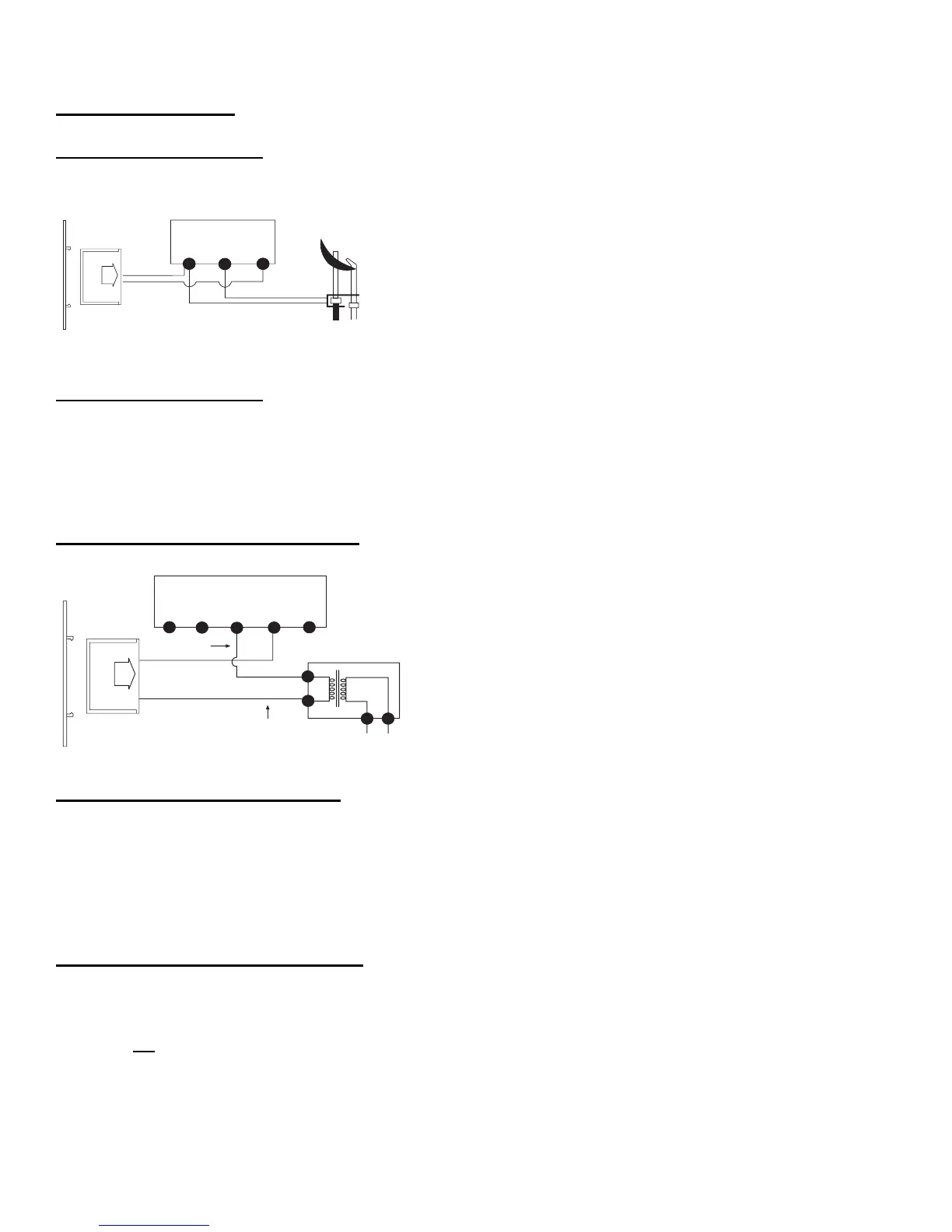

WIRING INSTRUCTIONS
A qualified electrician should install the remote control system.
WIRING MILLIVOLT VALVES
•
Connect one wire from the remote receiver to the TH terminal on the gas
valve.
•
Connect the other wire from the remote receiver to the TH/TP terminal on
the gas valve.
MILLIVOLT SYSTEM CHECK
•
Ensure that the pilot flame is lit.
•
Slide the 3-position button on the remote receiver to the ON position. The main gas flame (i.e., the fire) should ignite.
•
Slide the button to OFF. The main flame should extinguish (the pilot flame will remain ON).
•
Slide the button to REMOTE, then press the ON button on the transmitter to change the system to ON. The main gas flame
should ignite.
WIRING ELECTRONIC SPARK IGNITIONS
The remote control receiver can be connected, in series, to a 24VAC
transformer to the TR (transformer) terminal on the ELECTRONIC
MODULE. Connect the hot wire from the 24VAC transformer to either of
the wire terminals on the remote receiver. Connect another wire between
the other receiver wire terminal and the TH (thermostat) terminal on the
ELECTRONIC MODULE.
ELECTRONIC SPARK SYSTEM CHECK
•
Slide the 3-position button on the remote receiver to the ON position. The spark electrode should begin sparking to ignite the
pilot. After the pilot flame is lit, the main gas valve should open and the main gas flame should ignite.
•
Slide the button to OFF. The main gas flame and pilot flame should both extinguish.
•
Slide the button to REMOTE, then press the ON button on the transmitter to change the system to ON. The spark electrode
should begin sparking to ignite the pilot. After the pilot is lit, the main gas valve should open and the main gas flame should
ignite.
LEARNING TRANSMITTER TO RECEIVER
Each transmitter uses a unique security code. It will be necessary to press the LEARN button on the receiver to accept the transmitter
security code upon initial use, if batteries are replaced, or if a replacement transmitter is purchased from your dealer or the factory. In
order for the receiver to accept the transmitter security code, be sure the slide button on the receiver is in the REMOTE position; the
receiver will not LEARN if the slide switch is in the ON or OFF position. The LEARN button in located on the front face of the receiver;
inside the small hole labeled LEARN. Using a small screwdriver or end of a paperclip gently press and release the black LEARN button
inside the hole. When you release the LEARN button the receiver will emit an audible “beep”. After the receiver emits the beep press
the transmitter MODE button and release. The receiver will emit several beeps indicating that the transmitter’s code has been accepted
into the receiver.
