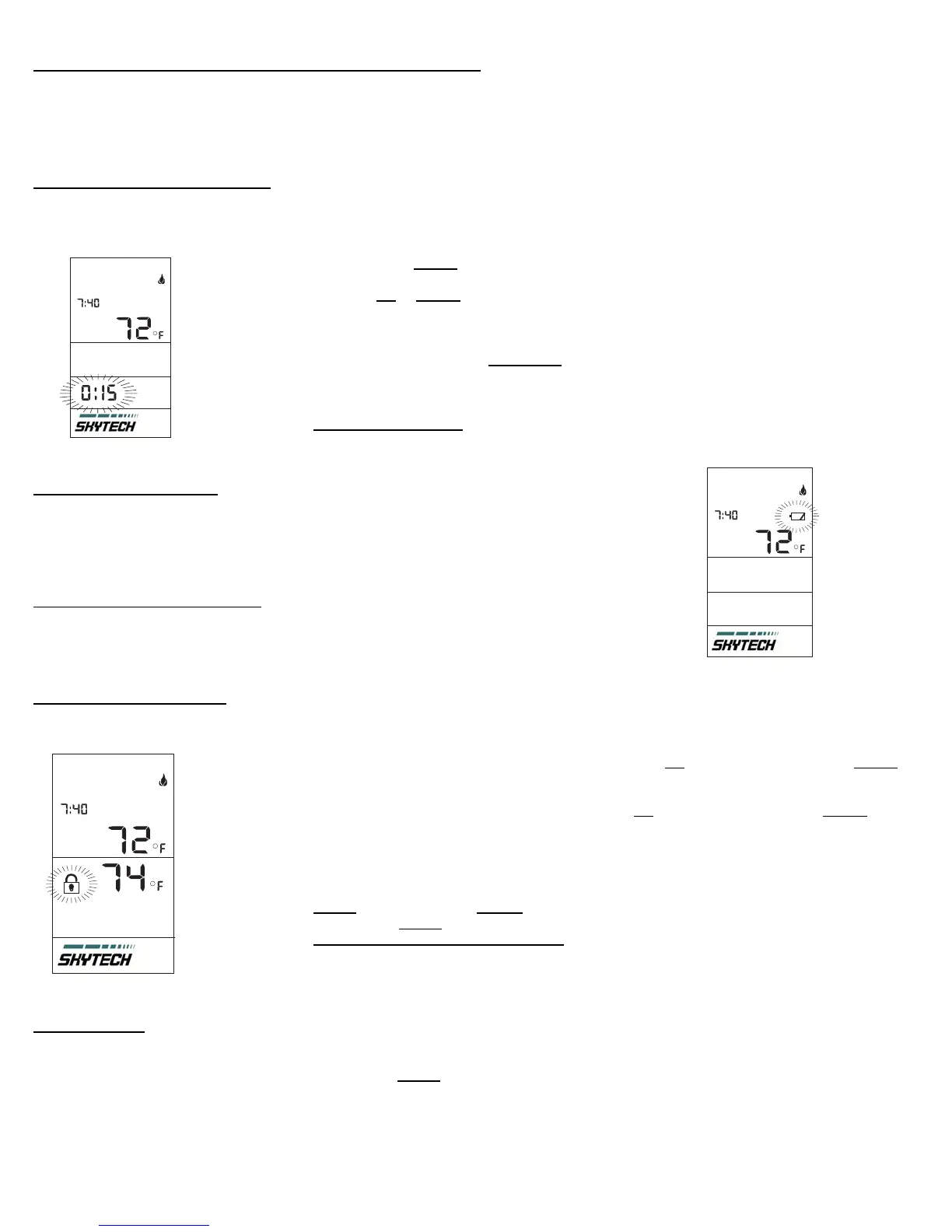

REV 11/27/07 Page 3 of 10
MANUAL CHECK OF “ SWING” OR TEMPERATURE DIFFERENTIAL
The operation of the factory set “THERMO SWING” can be checked by adjusting the SET TEMP 2
0
F above or below the room temperature.
This will cause the system to turn ON or OFF. Normally the system will only respond to temperature changes every two minutes. Manually
changing the SET temperature will activate the system in less than 10 seconds. IF the “SWING” is changed, then a new room temperature
differential will respond. Factory setting of “SWING” temperature is 2
0
F.
SETTING THE COUNTDOWN TIMER
This remote control system can operate with a built-in countdown timer when the transmitter is in the ON or THERMO modes (THERMO or ON
must be displayed on the screen).
1. Touch the word TIMER
on the LCD screen of the transmitter for more than two seconds on the
transmitter. The minimum 0:15 minute setting on the will begin to flash.
2. Press the UP
or DOWN button on the transmitter to begin advancing through each of the
countdown time options. Available countdown times are 15 minutes, 30 minutes, 45 minutes, 1
hour, 1 hour 30 minutes, 2 hours, 2 hours 30 minutes, and each additional half-hour up to nine
hours.
3. To set the TIMER press the MODE/SET
button on the transmitter if the system is ON. It will
remain on until the time has expired. If the system is in the THERMO mode, it will cycle on and
off, as the room temperature requires until the “time” has expired.
OPERATIONAL NOTE:
When the timer is used in the THERMO mode, the THERMO operation
will discontinue when the “time” has expired. System will return to the THERMO OFF position.
LOW/BATTERY INDICATOR
The battery ICON on the right side of the LCD screen will appear when battery power
has dropped significantly. At this time, approximately two weeks of battery power remains until the
transmitter may experience partial or complete loss of functions.
CHILDPROOF “LOCK-OUT” – (CP)
This remote control includes a CHILDPROOF “LOCK-OUT” feature that allows the user to
“LOCK-OUT” operation of the appliance from the TRANSMITTER.
SETTING “LOCK-OUT” –(CP)
1. To activate the “LOCK-OUT” feature, press and hold the UP
button and touch the word TIMER on
the LCD screen of the transmitter together, for 5 seconds. The lock icon will appear on the LCD
screen.
2. To disengage the “LOCK-OUT”, press and hold the UP
button and touch the word TIMER on the
LCD screen of the transmitter together for 5 seconds or more, and the lock icon will disappear
from the LCD screen and the transmitter will return to its normal operating condition.
NOTE:
If the appliance is already operating in the ON or THERMO MODES, engaging the
“LOCK-OUT” will not
cancel the operating MODE. Engaging the “LOCK-OUT” prevents only the
manual operation of the TRANSMITTER
. If in the auto modes, the THERMO operation will
continue to operate normally. To totally “LOCK-OUT” the operation of the TRANSMITTER’S
operating signals; the transmitter’s MODE must be set to OFF.
TRANSMITTER
The remote control operates, on RF (radio frequency) signals that are sent by the TRANSMITTER (remote) to the RECEIVER that operates
the appliance. It is recommended that the TRANSMITTER always
be located within the 20 foot operating range, preferably in the same room in
which the appliance is located.
