Skytech: 5310P
REV. 1-20-14 Page 5
LEARNING TRANSMITTER TO RECEIVER
Each transmitter uses a unique security code. It will be necessary to press the LEARN button on the receiver to accept
the transmitter security code upon initial use or if a replacement transmitter is purchased from your dealer or the factory.
In order for the receiver to accept the transmitter security code, be sure the slide button on the receiver is in the REMOTE
position; the receiver will not LEARN if the slide switch is in the ON or OFF position. The LEARN button in located on the
front face of the receiver; inside the small hole labeled LEARN. Using a small screwdriver or end of a paperclip gently
Press and Release the black LEARN button inside the hole. When you release the LEARN button the receiver will emit
an audible “beep”. After the receiver emits the beep press the transmitter MODE button and release. The receiver will
emit several beeps indicating that the transmitter’s code has been accepted into the receiver.
THERMOSTAT FUNCTION
This remote control system can be thermostatically controlled when the transmitter is in
the THERMO mode (THERMO must be displayed on the screen). To set the desired room
temperature, press the MODE button to place the transmitter into thermo mode, then press
the UP or DOWN touch buttons to select the desired room temperature. The highest set
temperature is 99º F (32º C).
NOTE: The thermo feature operates the appliance whenever the room temperature varies a
certain number of degrees from the set temperature. This variation is called the “swing” or
temperature differential. This feature lets the appliance turn off and on 2º F (1º C) above or
below the set temperature of the room. This is to cushion the number of times the appliance
is turned ON and OFF.
THERMO UPDATING FEATURE - TRANSMITTER
When in thermo mode, the transmitter reads the ROOM temperature every 2 minutes,
checks the room temperature against the SET temperature then sends a signal to the
receiver.
Fig. 12
ELECTRONIC SPARK SYSTEM CHECK
Slide the 3-position button on the remote receiver to the • ON position. The spark electrode should begin sparking to
ignite the pilot. After the pilot ame is lit, the main gas valve should open and the main gas ame should ignite.
Slide the button to • OFF. The main gas ame and pilot ame should both extinguish.
Slide the button to • REMOTE, then press the ON button on the transmitter to change the system to ON. The spark
electrode should begin sparking to ignite the pilot. After the pilot is lit, the main gas valve should open and the main
gas ame should ignite.

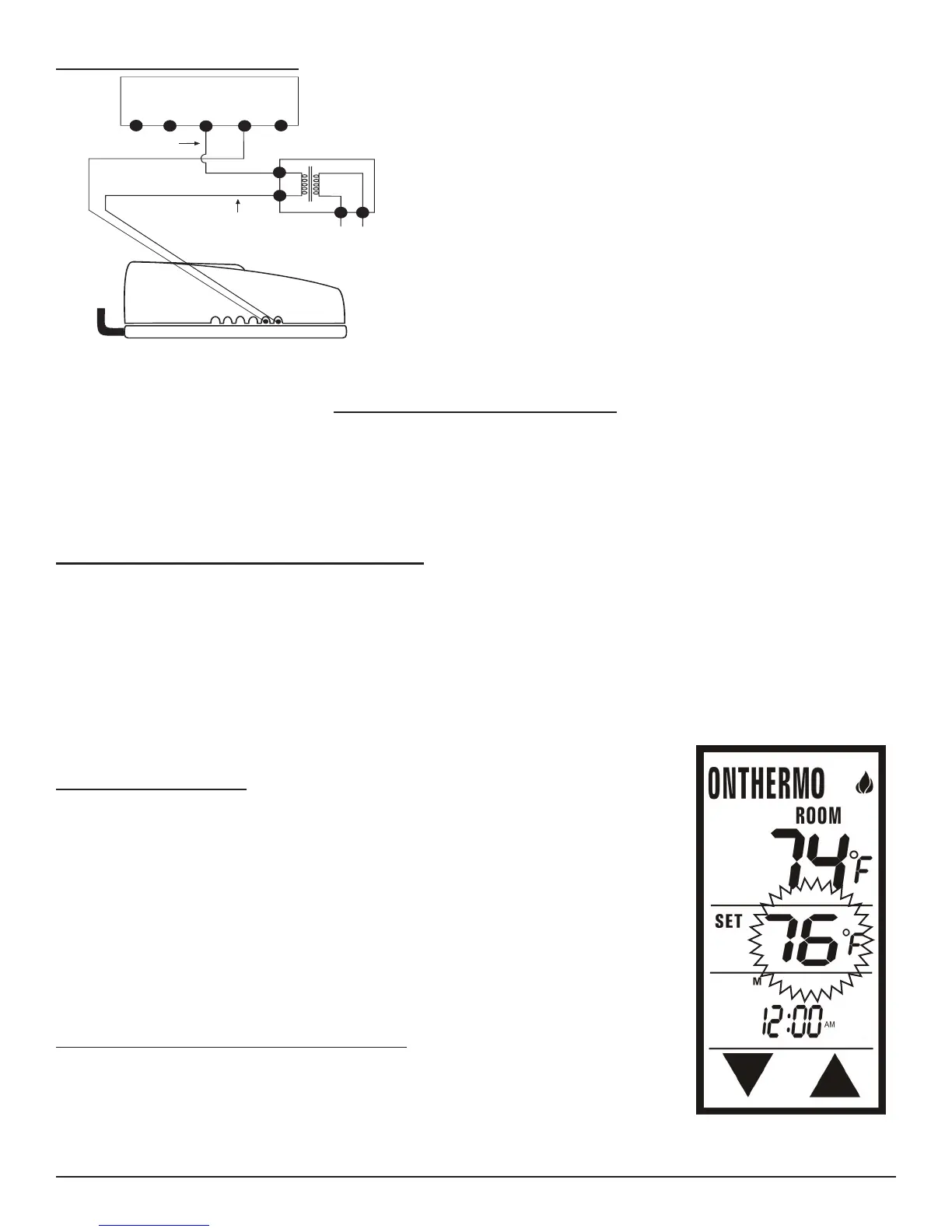

1 2 3 4 5 6
REMOTE RECEIVER
ELECTRONIC MODULE
TR
TH
neutral wire
24VAC
hot wire
110/24VAC
Transformer
T o 11 0VAC
input
The remote control receiver can be connected, in series, to a 24VAC
transformer to the TR (transformer) terminal on the ELECTRONIC
MODULE. Connect the hot wire from the 24VAC transformer to
either of the wires on the remote receiver. Connect the other wire from
the receiver to the TH (thermostat) terminal on the
ELECTRONIC MODULE.
ELECTRONIC SPARK IGNITIONS
Fig. 11
