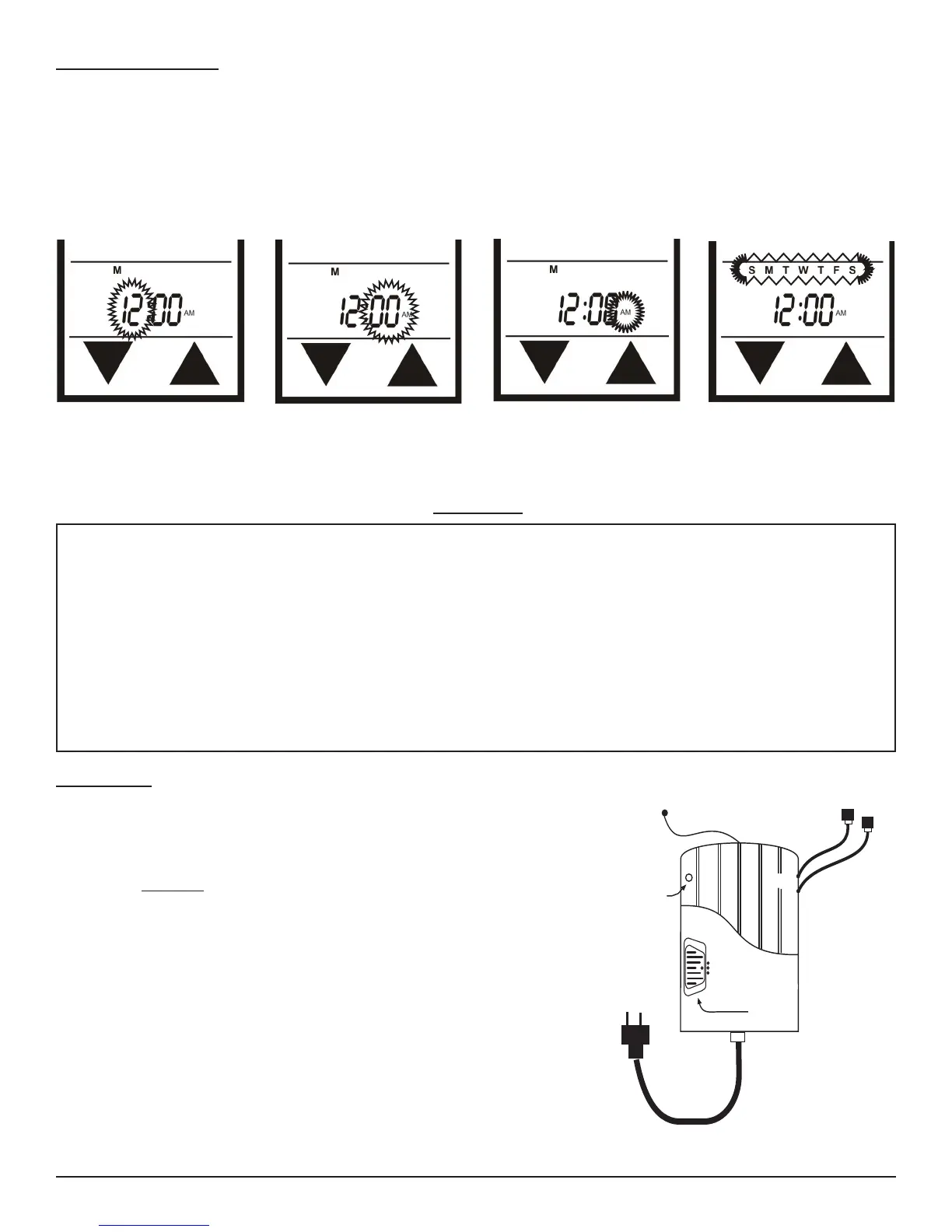

Skytech 5310P User Manual

Press and hold the • SET button, or touch the SET section on the touch screen, for 5 seconds. The hour section should
begin to ash. (Fig. #5)
Use the • UP and DOWN touch buttons to select the hour, then press SET.
The minutes will be ashing. Use the • UP and DOWN touch buttons to select the minute, the press SET. (Fig. #6)
The AM PM will be ashing. Use the • UP and DOWN touch buttons to select one of them, then press SET. (Fig. #7)
One of the days of the week will be ashing (above the clock). Select the correct day by pressing the • UP and DOWN
touch buttons, then press SET. Your time will automatically be accepted. (Fig. #8)
SETTING THE CLOCK
Fig. 5
Fig. 6
Fig. 7
Fig. 8
SET
SET
SET
SET
Skytech: 5310P
REV. 1-20-14 Page 3
WARNING
This remote control system must be installed exactly as outlined in these instructions. Read all instructions completely
before attempting installation. Follow instructions carefully during installation. Any modications of this remote control
or any of its components will void the warranty and may pose a re hazard.
Do not connect any gas valve or electronic module directly to 110-120VAC power. Consult gas appliance
manufacturer’s instructions and wiring schematics for proper placement of all wires. All electronic modules are to be
wired to manufacturer’s specications.
The following wiring diagrams are for illustration purpose only. Follow instructions from manufacturer of gas valve and/
or electronic module for correct wiring procedures. Improper installation of electric components can cause damage to
electronic module, gas valve and remote receiver.
Slide
Switch
OFF
REMOTE
ON
LEARN
VALVE
ANTENNA
REMOTE RECEIVER
Dry Contact
(2) 1/4” female
Connectors
T o 110VAC
input
When plugged into a standard 110-120 VAC receptacle, the remote receiver
operates on commands from the transmitter or from the slide switch on the face
of the receiver (This switch is to be used during a power outage to operate the
appliance manually).
ON• : will manually turn ON the appliance.
REMOTE• : will allow use of handheld transmitter. If the system does
not respond to the transmitter on initial use, ensure it is plugged into
a 110-120VAC receptacle . If that does not work, see the LEARNING
TRANSMITTER TO RECEIVER section.
OFF• : will disable the remote receiver.
It is suggested that the slide switch be placed in the OFF position if •
you will be away from your home for an extended period of time.
The remote receiver is manufactured with a “dry contact” relay in its circuitry
that operates like an ON/OFF switch. However, no power or current passes
from the 110-120VAC input side to the wires leading from the output side of the
remote receiver.
RECEIVER
Fig. 9

Skytech 5310P Specifications

General

Brand	Skytech
Model	5310P
Category	Remote Control
Language	English
