WIRING INSTRUCTIONS
A qualied electrician or a gas technician who is familiar with the gas appliance and gas valves that will be operated by
this remote should install the remote control system. Incorrect wiring connections WILL cause damage to the gas valve
or electronic module operating the gas appliance and may also damage the remote receiver.

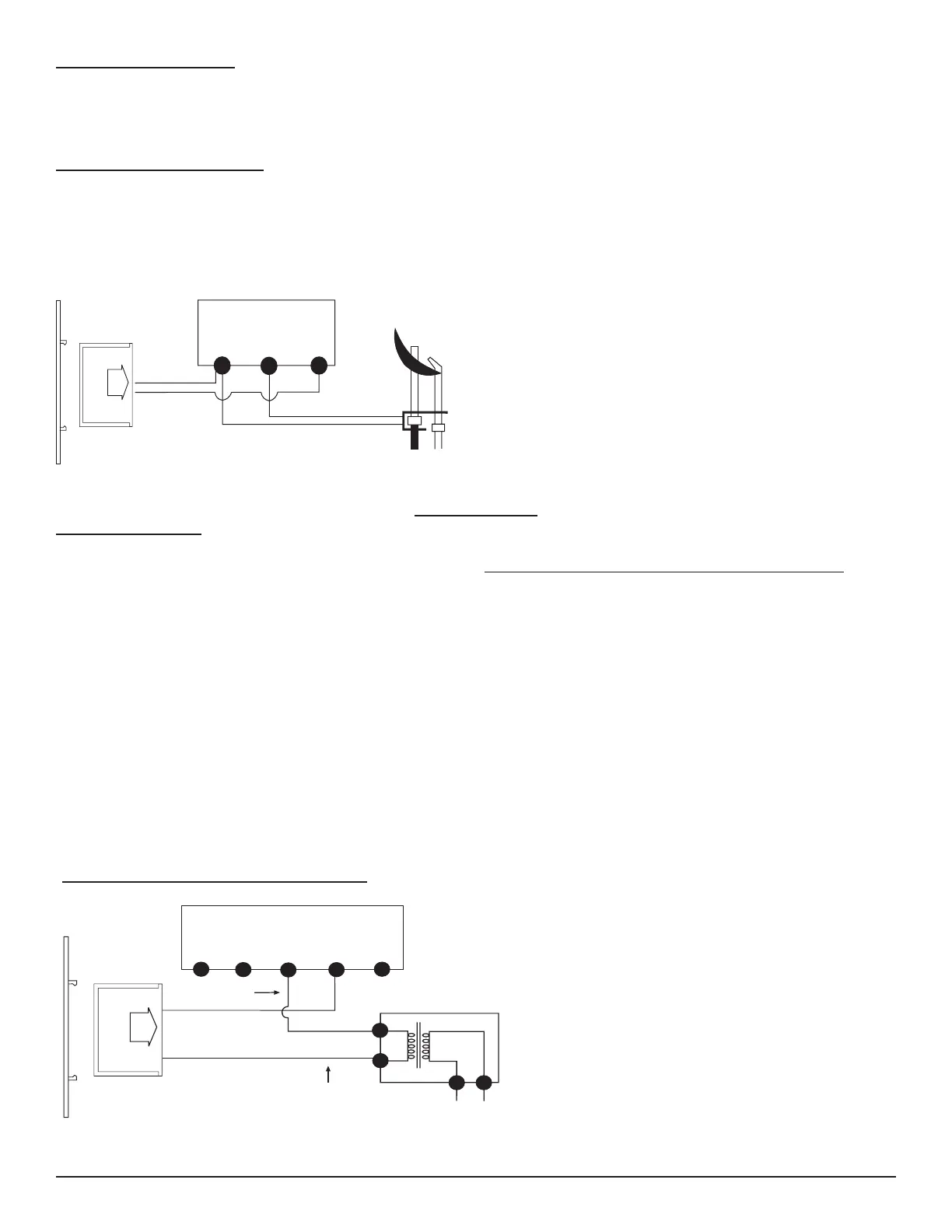

WIRING MILLIVOLT VALVES
The remote receiver is connected to the millivolt valve using the TH (thermostat) terminals on the terminal block on the
millivolt gas valve. Connect 18 gauge solid or stranded wires from the remote receiver to the gas valve.
TERMINAL BLOCK
ON MILLIVOLT
GAS VALVES
TH
TP
TP
TH
THERMOPILE/
PILOT LIGHT
REMOTE
RECEIVER
Operation of the remote receiver is similar to that of a
thermostat in that both turn the gas valve ON and OFF based
on input signals. A thermostat’s input signals are different
temperatures. The remote receiver’s input signals come from
the transmitter.
Connect each of the two wires leading from the TH terminals
on the millivolt gas valve to either of the two wire terminals on
the remote receiver. Normally it does not matter which wires
go to which terminal.
WIRING ELECTRONIC SPARK IGNITIONS
ELECTRONIC MODULE
TR
TH
REMOTE
RECEIVER
neutral wire
24VAC
hot wire
120VAC
110/24VAC
Transformer
The remote control receiver can be connected, in
series, to a 24VAC transformer to the TR
(transformer) terminal on the ELECTRONIC
MODULE. Connect the hot wire from the 24VAC
transformer to either of the wire terminals on the
remote receiver. Connect another wire (not included)
between the other receiver wire terminal and the TH
(thermostat) terminal on the ELECTRONIC
MODULE.
SYSTEM CHECK
MILLIVOLT VALVES
Light your gas appliance following the lighting instructions that came with the appliance. Conrm that the pilot ame is
ON; it must be in operation for the main gas valve to operate. Learn the transmitter to the receiver. See next page.
• Slide the 3-position button on the remote receiver to the ON position. The main gas ame (i.e., the re) should ignite.
• Slide the button to OFF. The ame should extinguish (the pilot ame will remain ON).
• Slide the button to REMOTE (the center position), and then press the ON button on the transmitter to turn the system
to ON. The main gas ame should ignite.
• Press the OFF button on the transmitter to turn the system to OFF. The ame should extinguish (the pilot ame will
remain on).
• Press the MODE button on the transmitter to change the system to THERMO. Advance the SET temperature on the
transmitter to a temperature of a least 2°F (1°C) above the ROOM temperature displayed on the LCD screen. With
this manual setting, the normal thermostatic cycle is overridden and the system ame will ignite. Set the SET
• temperature to at least 2°F (1°C) below the room temperature and the system ame will extinguish in a few seconds.
Thereafter, it should continue to cycle ON and OFF thermostatically approximately every two minutes as the ROOM
temperature changes, but only when the temperature differential between ROOM and SET temperatures differ at least
2°F (1°C). The 2° F differential is the factory setting.
