Page 14
6702 HERCULES Owner's • REV6
3-6. AC Operation
Use the following instructions to operate the table
on AC power.
WARNING
The surgical table must be positioned
in such a way that the operator can
disconnect the power cord at the
table or the electrical outlet.
1. Make sure the power cord is securely
attached to the table. To install the power
cord, align the cord connector with the base
connector (POWER CORD), insert the cord
into the connector until it locks in place (Figure
3-5).
POWER
BATTERY
CHARGE
INDICATOR
FOOT CONTROL
CONNECTOR
MAIN POWER SWITCH
LOCKING
TABS
EQUALIZATION

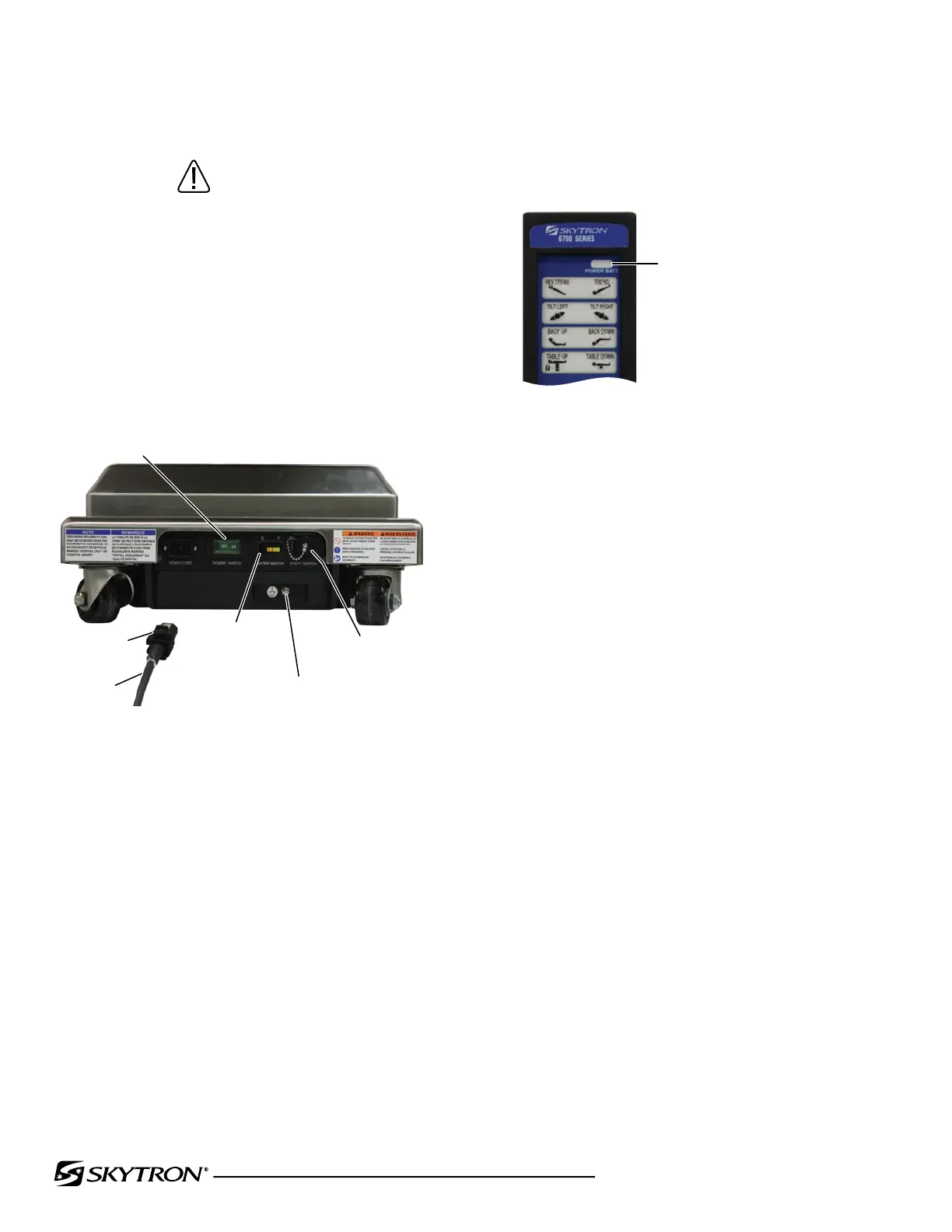

Figure 3-5. Electrical Panel
NOTICE
To remove the power cord, depress the
top and bottom locking tabs and pull the
cord connector out of the base connector.
2. Plug the cord into a properly grounded,
Hospital Grade, AC outlet. Make sure the power
cord is routed to the outlet to prevent it from
being in the way of operating personnel.
NOTICE
Ground reliability can only be achieved
when the equipment is connected to a
properly grounded receptacle. Where
the integrity of the external protective
earth ground is compromised, equipment
must be operated in battery mode.
3. Place the main power switch (POWER
SWITCH) in the ON position. The switch will
illuminate. The pendant control buttons and
the green AC, POWER indicator light, located
in the upper right corner of the pendant control,
will illuminate (Figure 3-6).
POWER ON
INDICATOR LIGHT
AC (GREEN)
Figure 3-6. Pendant Control (AC Power)
4. The table is now ready for AC operation.
NOTICE
Use only SKYTRON replacement parts
for the power cord and pendant control.
Refer to: Section 5. Replacement Parts.
3-7. Battery Operation
1. Make sure the main power switch (POWER
SWITCH) indicator light is OFF. If the indicator
light is ON (AC Power ON), place the main
power switch (POWER SWITCH) in the OFF
position (Refer to Figure 3-5).
NOTICE
Prior to all surgical procedures, make
sure the battery charge is sucient for
anticipated duration and use.
The table will operate correctly on battery
power with the power cord connected to
a wall outlet or disconnected.
2. Press the BATT ON/OFF button on the
pendant control. The pendent control buttons,
the green and red BATTERY indicator lights on
the upper right corner of the pendent control, and
the battery charge indicator on the electrical panel
will illuminate (Figure 3-5 and Figure 3-7).
3. The table is now ready for battery operation.
To
extend the battery charge life when the table is
not in use, press the BATT ON/OFF button on
the pendant control to turn the battery power
OFF.
