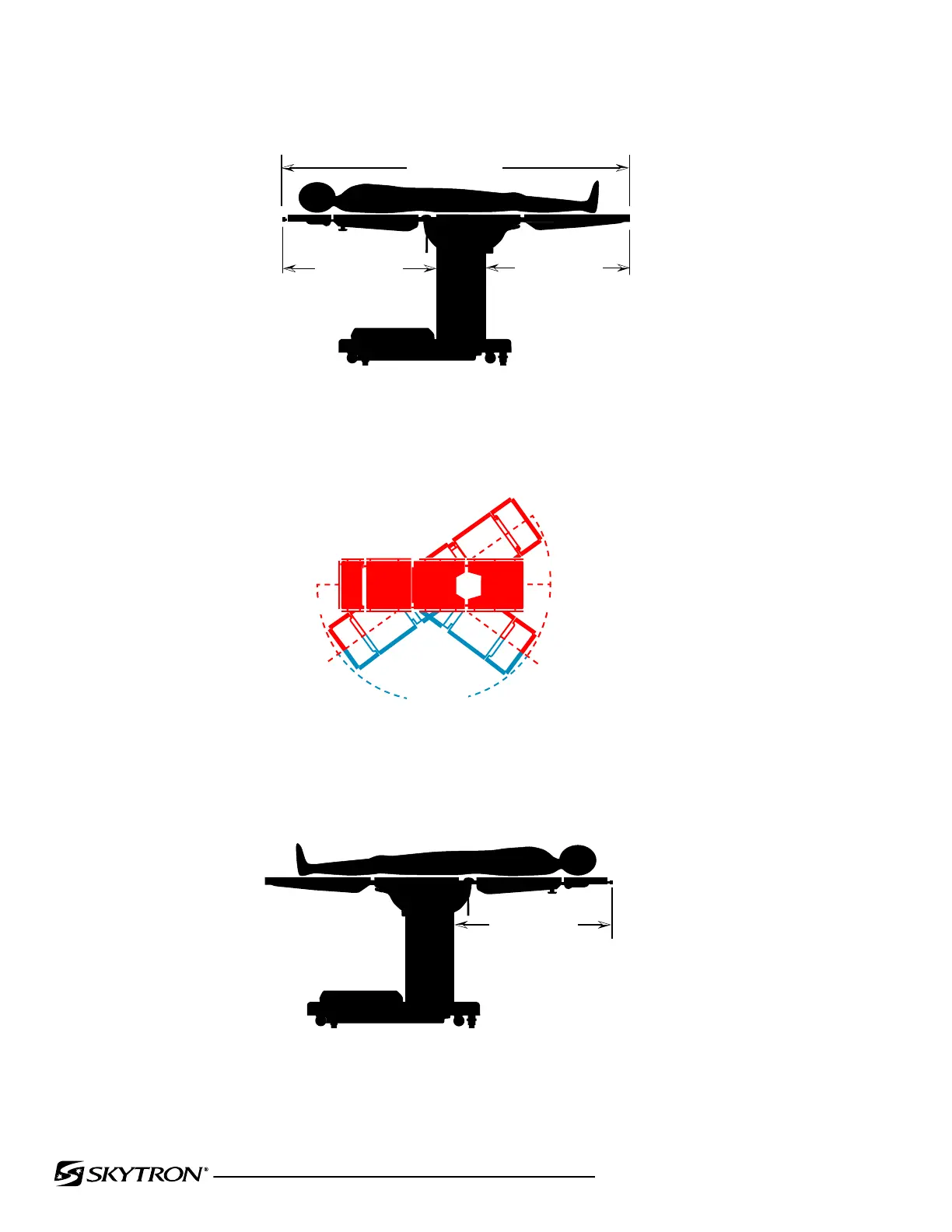

3-19. Positioning and Clearance
TOP ROTATED 180°
NORMAL TABLE TOP ORIENTATION
BACK
LEG
BACK
LEG
BRAKES MUST
REMAIN LOCKED
TO THE FLOOR
BRAKES MUST
REMAIN LOCKED
TO THE FLOOR
37” (940mm)
IF POSITIONED WITHIN THE BLUE RANGE, WEIGHT CAPACITY IS 1,200 LBS (540 KG).
BUT A HEAVY DUTY SUPPORT ROD MUST BE.USED ON THE BACK SECTION.
THE TABLE CANNOT BE ARTICULATED WHEN THE SUPPORT ROD IS USED.
TOP ROTATION
IF POSITIONED WITHIN THE RED RANGE,
WEIGHT CAPACITY IS 1,200 LBS (540 KG) LIFT
AND 1,000 LBS (450 KG) ARTICULATION.
80” (2032mm)
37” (940mm)
33” (838mm)
FOOT END
OF BASE
HEAD END
OF BASE
30°- 150°
0°- 30°
180°- 210°
150°- 180°
