6702 HERCULES Owner's • REV6
CAUTION
Use the emergency stop switch for
emergency situations only! Pressing
the emergency stop switch will
remove power from the hydraulic
system to stop all motion.
1. In the event of a malfunction where a
positioning function continues to operate,
pressing the red emergency stop switch button
will interrupt all power to the hydraulic pump.
All positioning functions will stop and an audible
alarm will sound.
2. When the emergency is cleared or the
malfunction is addressed (corrected), turn or
pull out the emergency stop switch button to
release or reset the switch.

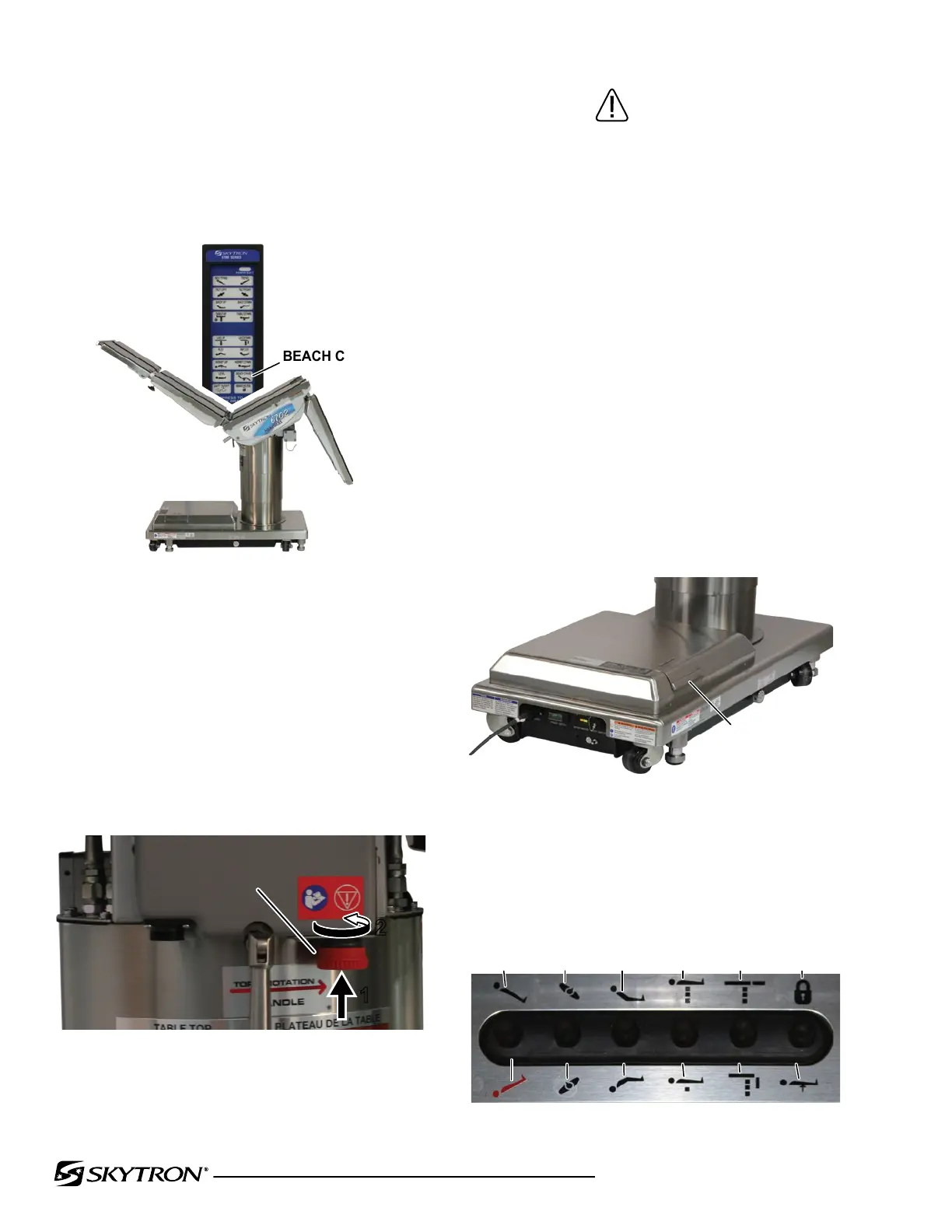

3-12. Emergency Back-up Controls
Emergency back-up control switches are located
under the access door on the service access cover
in the table base (Figure 3-21).
EMERGENCY
CONTROL
ACCESS DOOR
Figure 3-21. Emergency Controls Location
If the hand-held pendant fails to operate or is not
functioning properly, the table can be operated using
the emergency back-up switches. Simply push
the desired emergency switch in the appropriate
direction to operate the table functions (Figure 3-22).
REV.
TREND
TILT
RIGHT
BACK
UP
TABLE
UP
LEG
UP
BRAKE
LOCK
TREND
TILT
LEFT
BACK
DOWN
TABLE
DOWN
LEG
DOWN
KIDNEY
DOWN
Figure 3-22. Emergency Back-Up Controls
j. Beach Chair
To place the table top in the beach chair position
from a level position, press the BEACH CHAIR
button (Figure 3-19). The back section will raise,
the leg section will lower, and the Trendelenburg
position will function simultaneously. The functions
will stop when Trendelenburg reaches its limit.
Figure 3-19. Beach Chair
NOTICE
To prevent damage to the kidney lift, a
safety interlock prevents the beach chair
function from operating if the kidney
lift is not all the way down. An audible
alarm will sound.
3-11. Emergency Stop Switch
An emergency stop switch is located under the table
top, near the pendant control connector (Figure 3-20).
EMERGENCY
SWITCH
2
1
Figure 3-20. Emergency Stop Switch
