Skywalker X8 - Mounting the Pushrod and Pushrod Connector; Gluing the Main Wing Winglet Butt-Plate

8. MountingthePushrodandPushrodConnector
Insertthepushrodintotheuppermostholeintheservoarm.Slidethepushrodconnectorontothepushrodand
attachthepushrodconnectorwithoneofthesuppliedblackscrews.Cutoffanyexcesslengthoffthepushrod.
Thepushrodshouldnotextendmorethan1/8”ofaninchpastthe
pushrodconnector.SeePhoto8A.



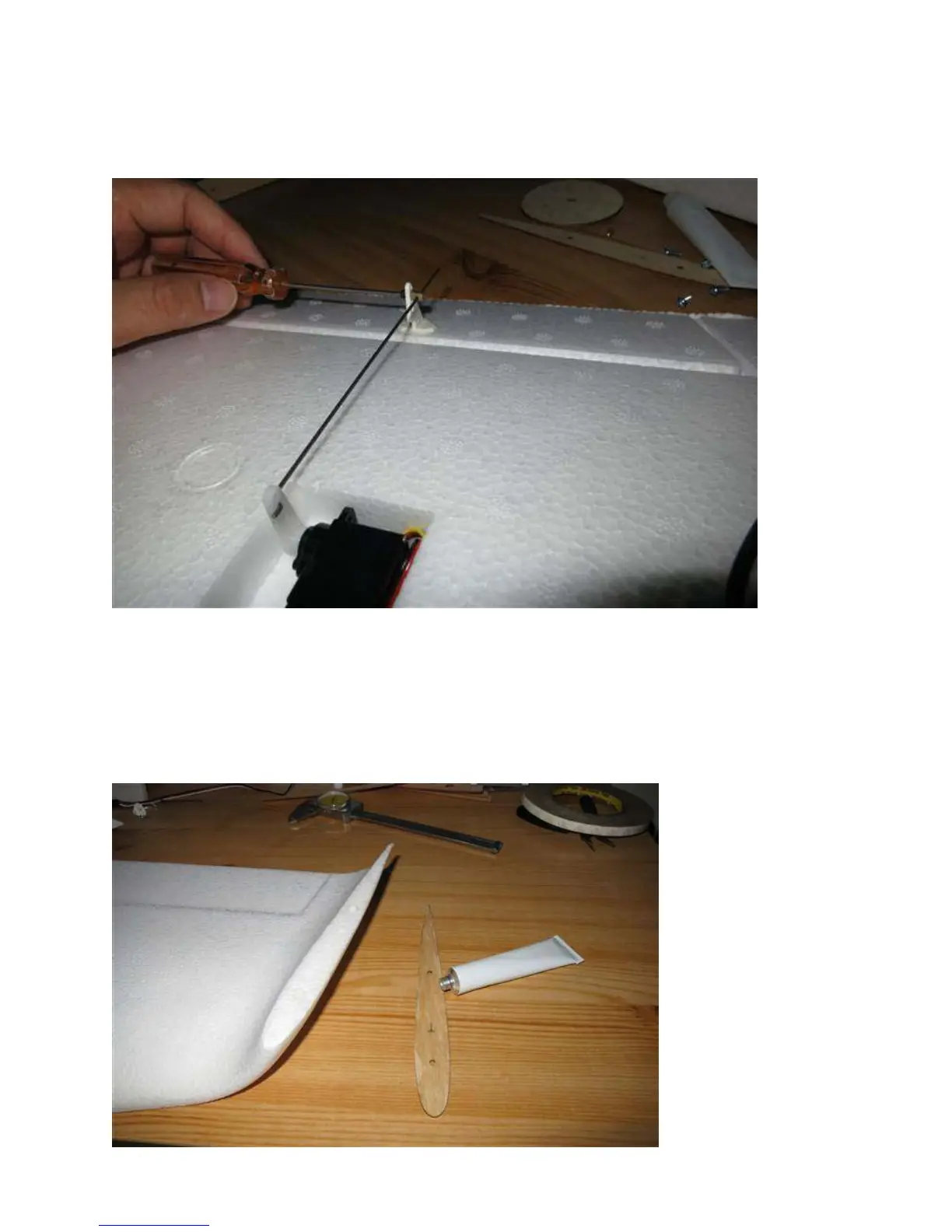

PHOTO8A

9. GluingtheMainWingWingletButt‐Plate
Liberallyapplyasmoothlayerofgluetothewingletbutt‐platethesebutt‐platesaremarkedwitha“T”.Applya
smoothlayerofgluetothemainwingaswell.Allowthegluetodryonboththewingandbutt‐plate(about5
minutes),thenpressthemtogether
aligningthemaccurately.SeePhotos9Aand9B.


PHOTO9A

