Skywalker X8 - Installing the Wing Butt-Plate onto the Fuselage




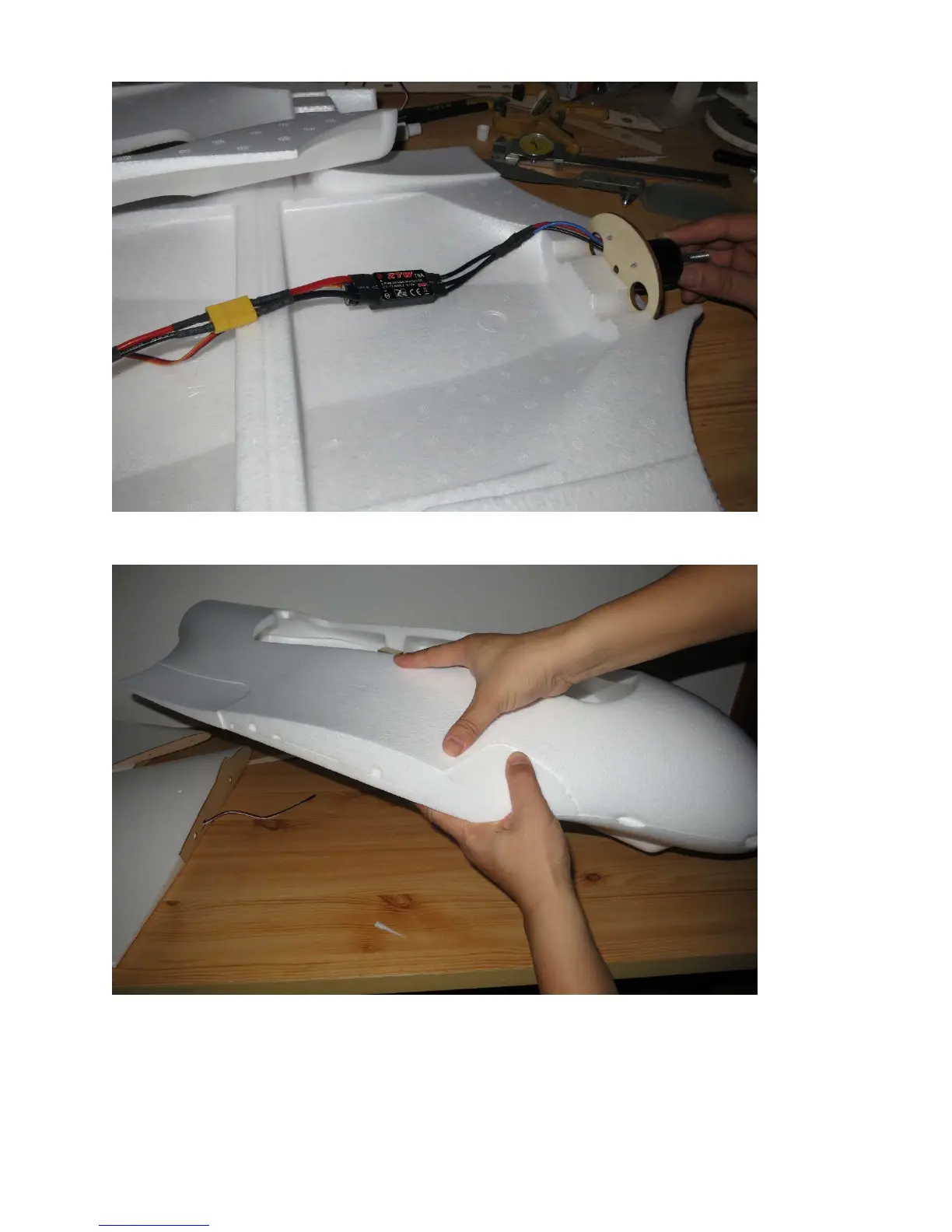

PHOTO15C


PHOTO15D

16. InstallingtheWingButt‐PlateontotheFuselage
Applythesuppliedgluetotheinnerfuselagewingedge,makesurenottogetanyglueintothewingtubehole.
Alsoapplygluetothebutt‐plate,allowthegluetodryonbothpiecesforabout5minutes.Afterthegluehas
driedinsertthewingtubeinto
itthefuselagewingtubecavitytohelpalignthebutt‐plateforthemostaccurate
fit.Nextattachthebutt‐platetothefuselage.SeePhotos16A,16B,and16C.
