CONTROLS
20

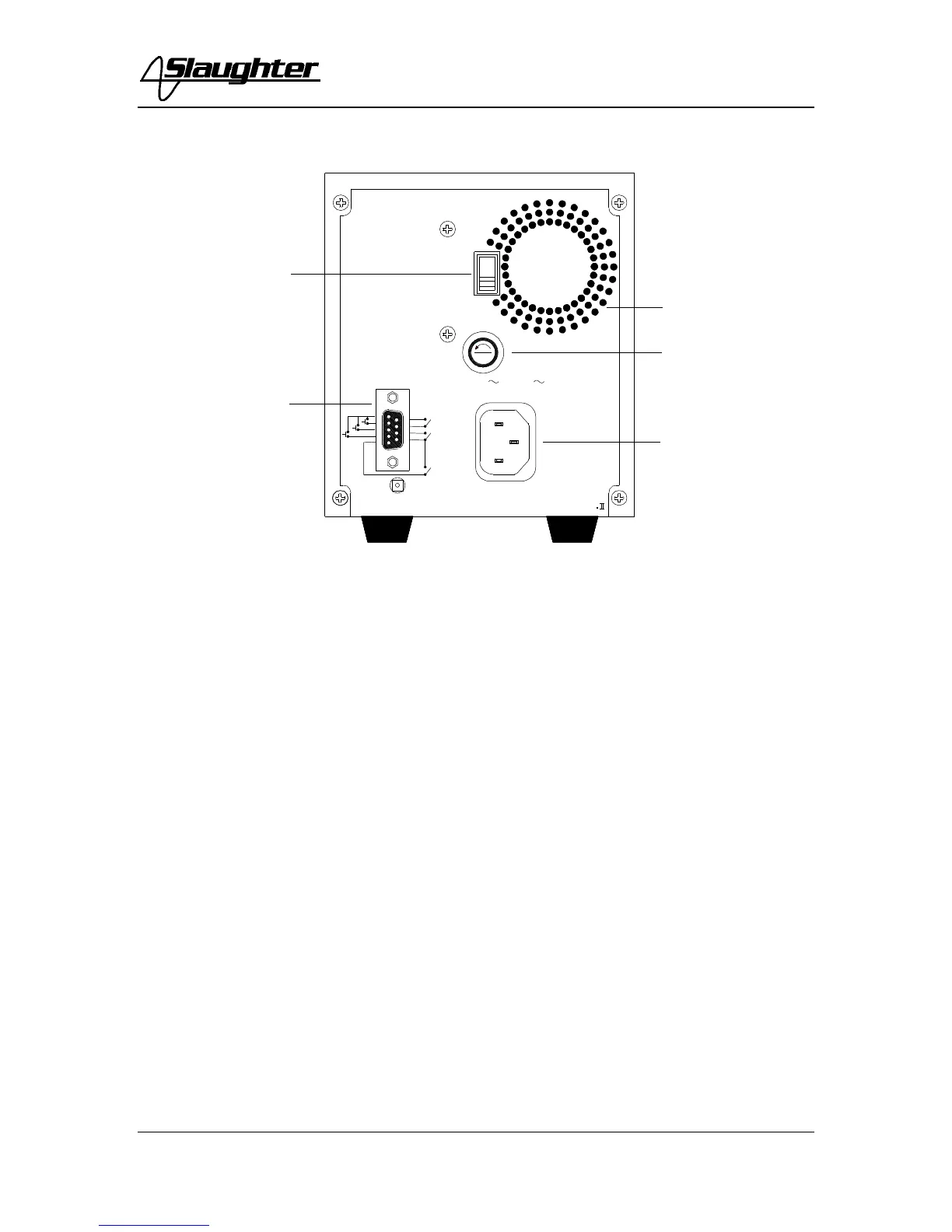

REAR PANEL CONTROLS
CAL.
1A MAX., 50Hz/60Hz
F1A 250V
TEST
4
3
5
1
115
/115V 230V
CAT
2
INTERLOCK
RESET
FA IL
PASS
PROCESSING
1. VENTILATION: To cool the instrument.
2. INPUT POWER SWITCH: Line voltage selection is set by the position of the
switch. In the down position it is set for 115 volt operation, in the up position it is set
for 230 volt operation.
3. PLC REMOTE I/O: 9 pin D subminiature male connector for remote I/O.
4. INPUT POWER RECEPTACLE: Standard IEC 320 connector for connection to
a standard NEMA style line power (mains) cord.
5. FUSE RECEPTACLE: To change the fuse unplug the power (mains) cord and turn
the fuse cap counter clockwise to remove the fuse.
