CONTROLS
17

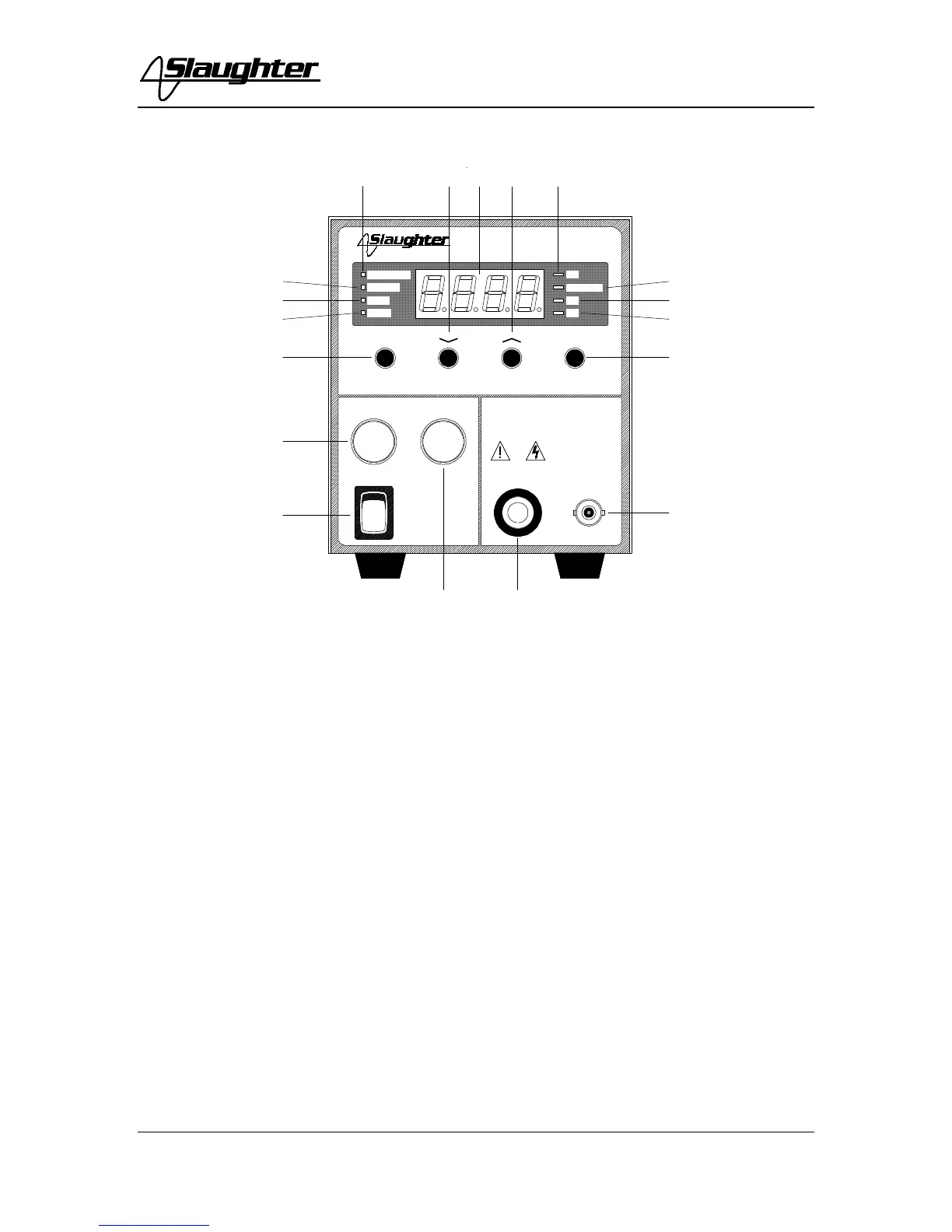

FRONT PANEL CONTROLS
POWER
I
O
RETURN
H.V.
INSULATION RESISTANCE TESTER
RESISTANCE
RESET
SET
DWELL
VOLTAGE
DELAY
2205
EXIT
TEST
CAUTION
HIGH VOLTAGE
MAX.1000VDC
DISCHARGE
G
Ω
M
Ω
H.V.
3
5
1
2 9
10
8
6 74 15
18
17
16
11
14
13
12
1. POWER SWITCH: Rocker-style switch with international ON ( | ) and OFF (0)
markings.
2. TEST SWITCH: This is a momentary contact switch. Press the green switch to
energize the high voltage output. When the dwell function is “0,” high voltage will
remain ON until a reject occurs or the RESET button is pushed. If the dwell function
is anything other than “0”, the high voltage will be present only for the programmed
time.
3. RESET SWITCH: This is a momentary contact switch. If a failure is detected
during a test, the red Failure lamp within the switch will light. To reset the system for
the next test, press and release this switch. This switch may also be used to abort a
test in progress.
4. DISPLAY: The Display is the main readout for the test settings and test results.
Scalar values are indicated via a digital display.
5. SET KEY: Use this key to enter Setup Mode and advance forward through the
setup menus.
6. DOWN ARROW (∨): Use this key to decrement numeric values in the setup mode.
