REMOTE I/O
30

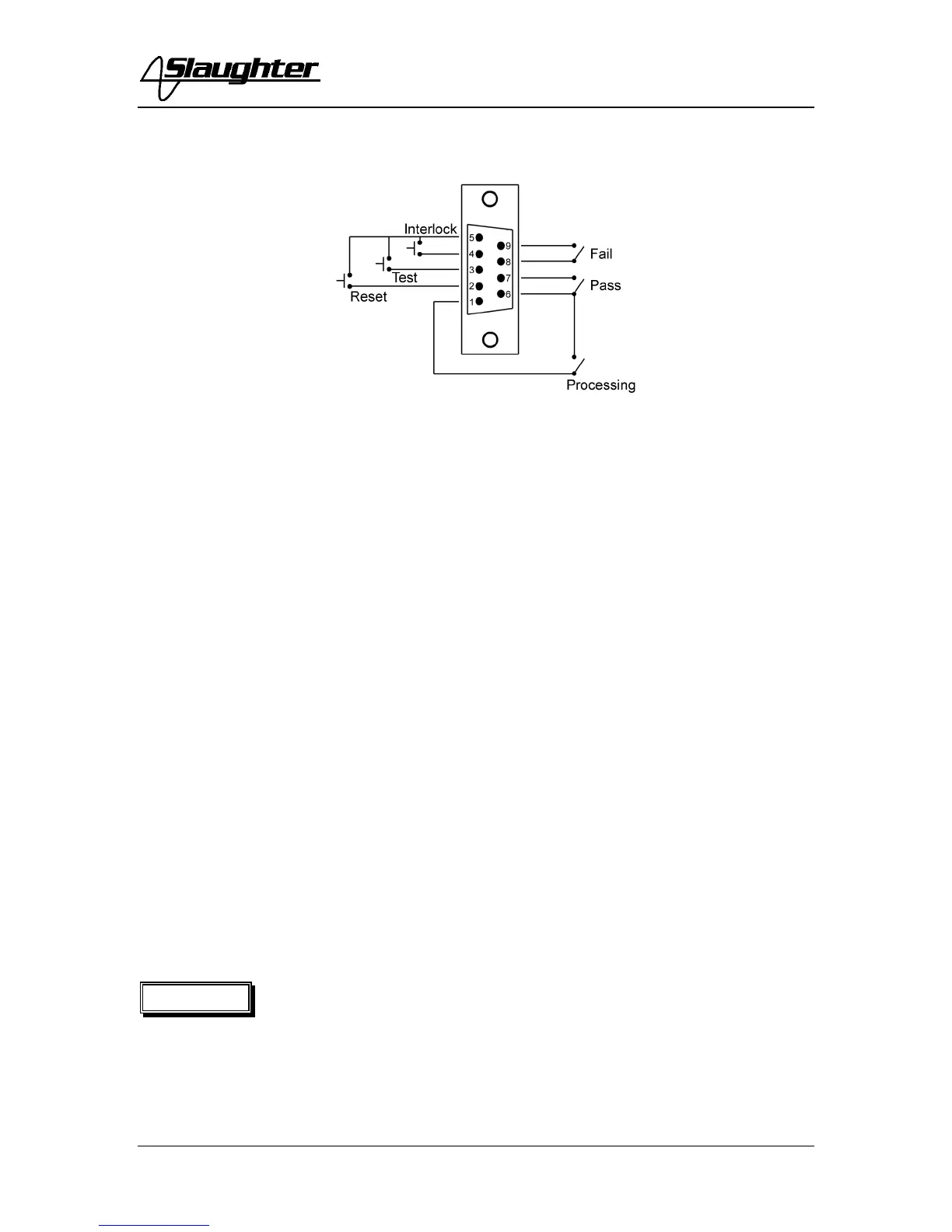

Remote I/O Connection
Pins 1 and 6 provide the PROCESSING signal.
Pins 6 and 7 provide the PASS signal.
Pins 8 and 9 provide the FAIL signal.
A description of the output relay operation follows:
PROCESSING – The relay contact closes the connection between pin 1 and pin 6 while
the instrument is performing a test. The connection is opened at the end of a test.
PASS – The relay contact closes the connection between pin 6 and pin 7 after detecting
that the device under test passed the test. The connection is opened when the next test is
initiated or the reset function is activated.
FAIL – The relay contact closes the connection between pin 8 and pin 9 after detecting
that the device under test failed the test. The connection is opened when the next test is
initiated or the reset function is activated.
Suggested AMP part numbers for interconnecting to the Remote I/O are shown below.
205203-3 RECEPTACLE SHELL
745253-7 CRIMP SNAP-IN SOCKET CONTACT (for receptacle)
745171-1 SHIELDED CABLE CLAMP (for either plug or receptacle)
747784-3 JACKSCREW SET (2)
DO NOT CONNECT VOLTAGE OR CURRENT TO THE SIGNAL
INPUT, THIS COULD RESULT IN DAMAGE TO THE CONTROL
CIRCUITRY.
CAUTION
