SMA Solar Technology AG 5 Connection
Installation Manual 485i-Module-IA-en-19 17
or

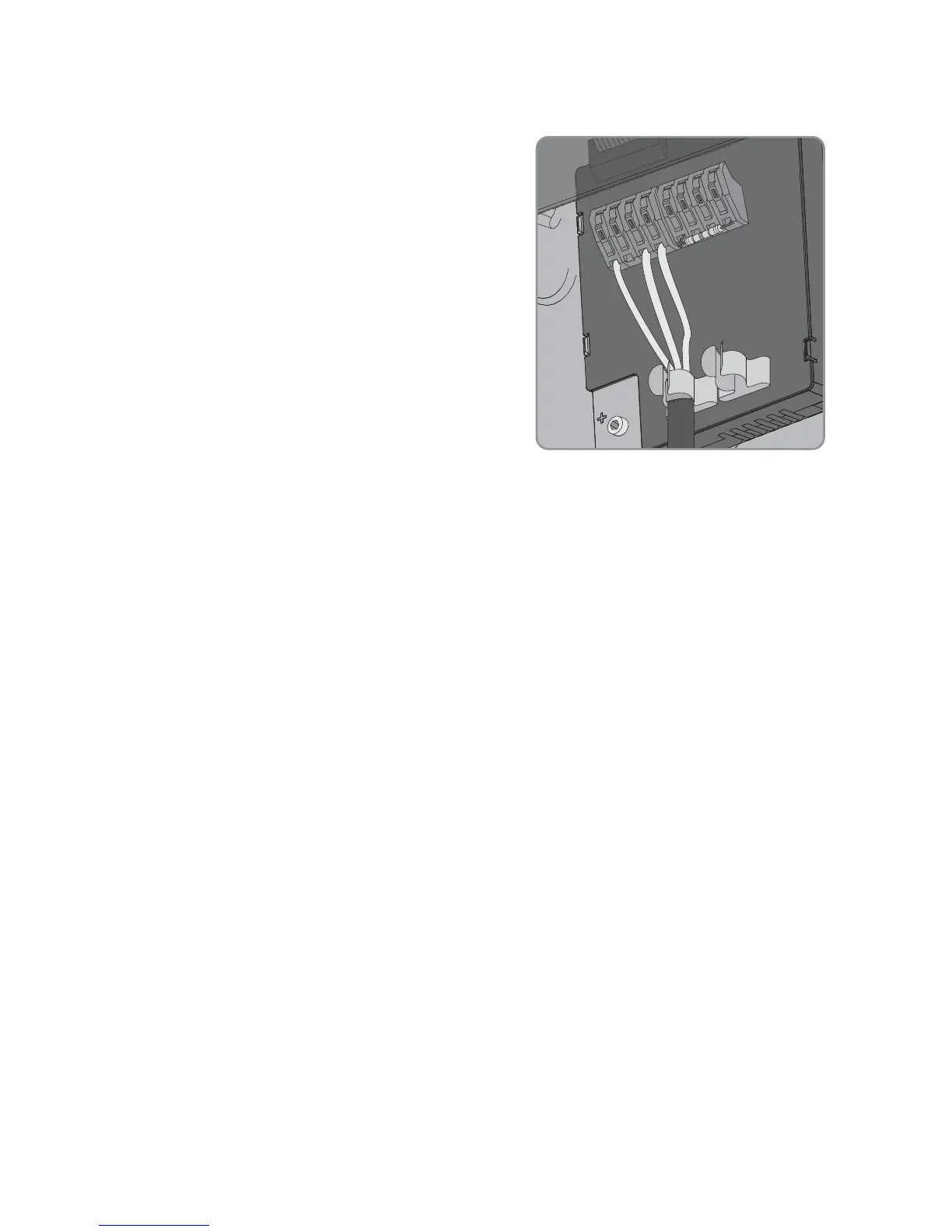

☑ One cable is connected to the 485 data
module.
14. Fasten the swivel nut on the cable gland hand-tight. This relieves pull strains on the cables.
15. Flip the display down and fasten the screw of the display hand-tight.
16. Close the inverter (see inverter installation manual).
17. Connect the other cable end to the RS485 bus (for information on the terminal assignment and
wiring in the system, see the technical description "RS485 Cabling Plan").
