11
Preparations – Measuring, cont’d

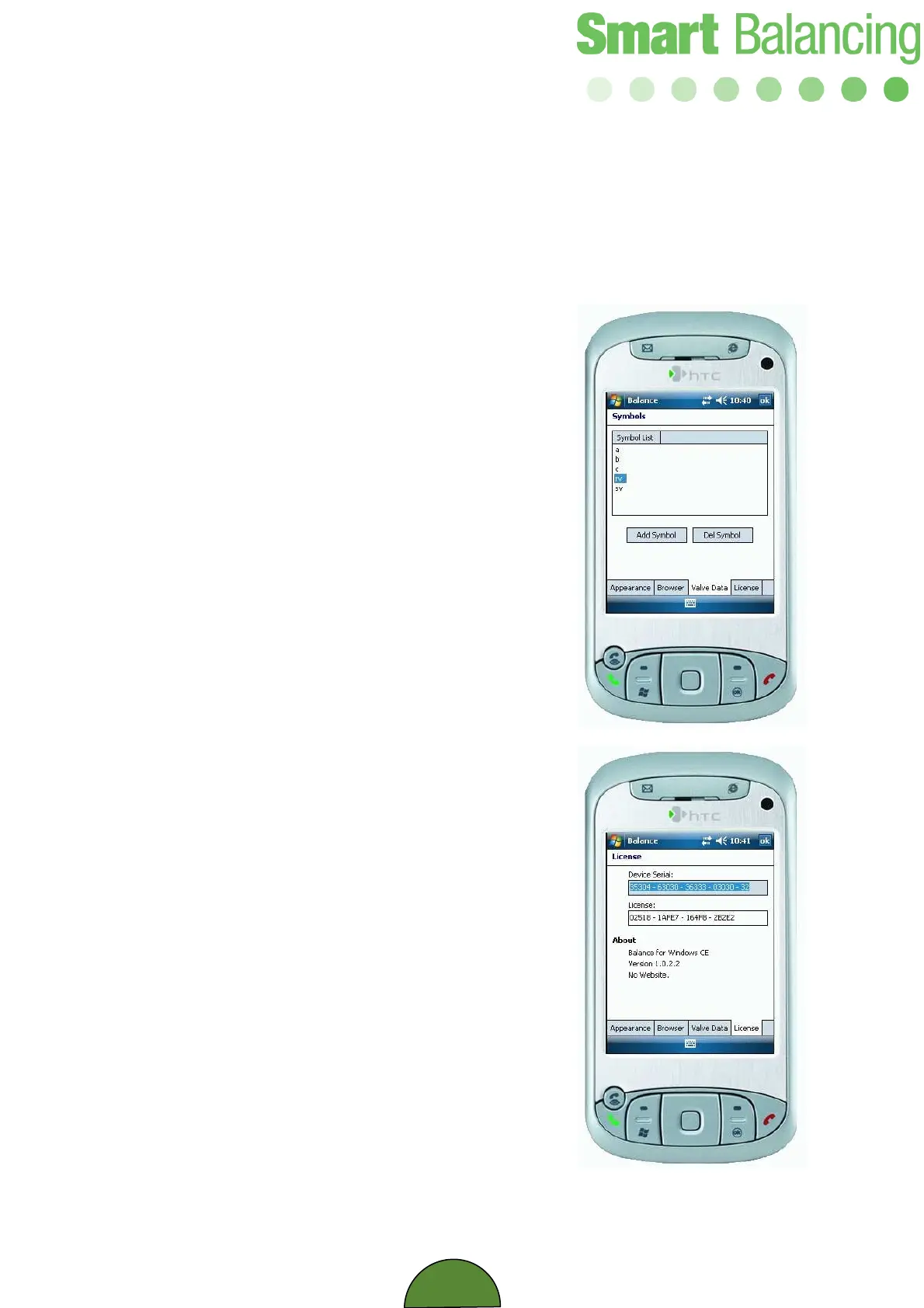

3.2.1.3 Valve Data.
Under this tab, balancing valve measurements,
are given a symbol or a denomination. The
symbol will automatically be linked to the
measurements that are saved. The first
measurement that is performed and saved in
the Hand Terminal will be allotted to the symbol
chosen and completed with a current number.
For instance, if you choose ”rv”, the first stored
measurement is allotted the name ”rv0”, the
second measurement ”rv1” etc See more
under ”Measuring”, Save.
Choice of symbol can be made by two
alternative ways. Either by choosing one of the
existing symbols, by tapping on one of the
displayed symbols (the chosen symbol
becomes blue marked). Tap on OK in the
upper right corner, for leaving this sub-menu.
You may also chose your own symbol by
tapping on Add Symbol. By tapping on Add
Symbol, a keyboard will appear. Create your
own symbol by tapping on the letters and
figures on the keyboard. When a new symbol
is entered, tap on OK and the keyboard
disappears. The symbol you just created is
now added to the list with the standard
symbols. Tap on this symbol as above and
then OK for leaving this sub-menu
3.2.1.4 License.
Here you find the serial number of the Hand
Terminal and also the license number
associated with BalanceFlex program. Tap OK
at the upper right corner to return to the Main
Menu.
