Smart Balancing PFM Flex 1 User Manual

12
Preparations – Measuring, cont’d
3.2.2 Valve Data.

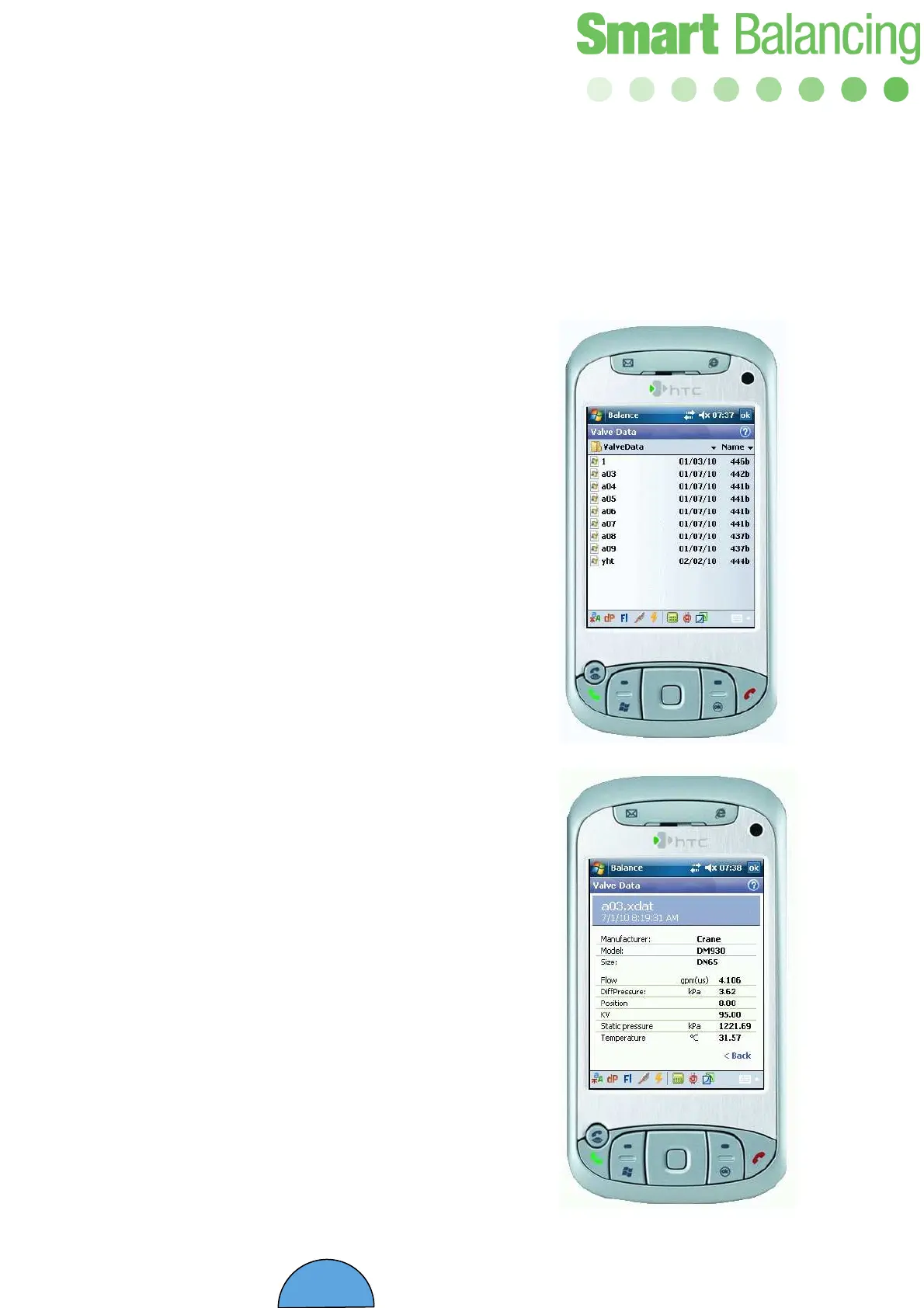

Tap at Valve Data at Main Menu. The Valve
Data screen shows all stored balancing valve
measurements. For example, if ”rv” has been
chosen as symbol and five measurements
have been completed and stored, the rv0,
rv1,rv2, rv3 and rv4 icons will be seen on the
screen. By tapping on any of the four ”rv”
icons the measurement data is displayed for
the chosen valve.
Down to the right there is a < Back icon. Tap
“< Back” to return to the measurement list.
Tap and hold the terminal-pen at a specific
measurement and then tap delete, to remove
a measurement from the Valve Data list.
Tap OK at the upper right corner of the
display, to return to the main menu.

Smart Balancing PFM Flex 1 Specifications

General

Brand	Smart Balancing
Model	PFM Flex 1
Category	Measuring Instruments
Language	English
