Smart Dedicated Design STR7202 - Page 11

Installation Manual STR7202 TAG4 & SFM7704 TAG1
DBCI-0512-0052-V013
STR7202 2-Side Trimmer & SFM7704 Square Fold Module
Name: RI01
Date: 29-3-2017
Page: 11 / 72
4. Preparation (continued)
Contents
4.2 Preparing Canon Booklet Trimmer F1 (continued)

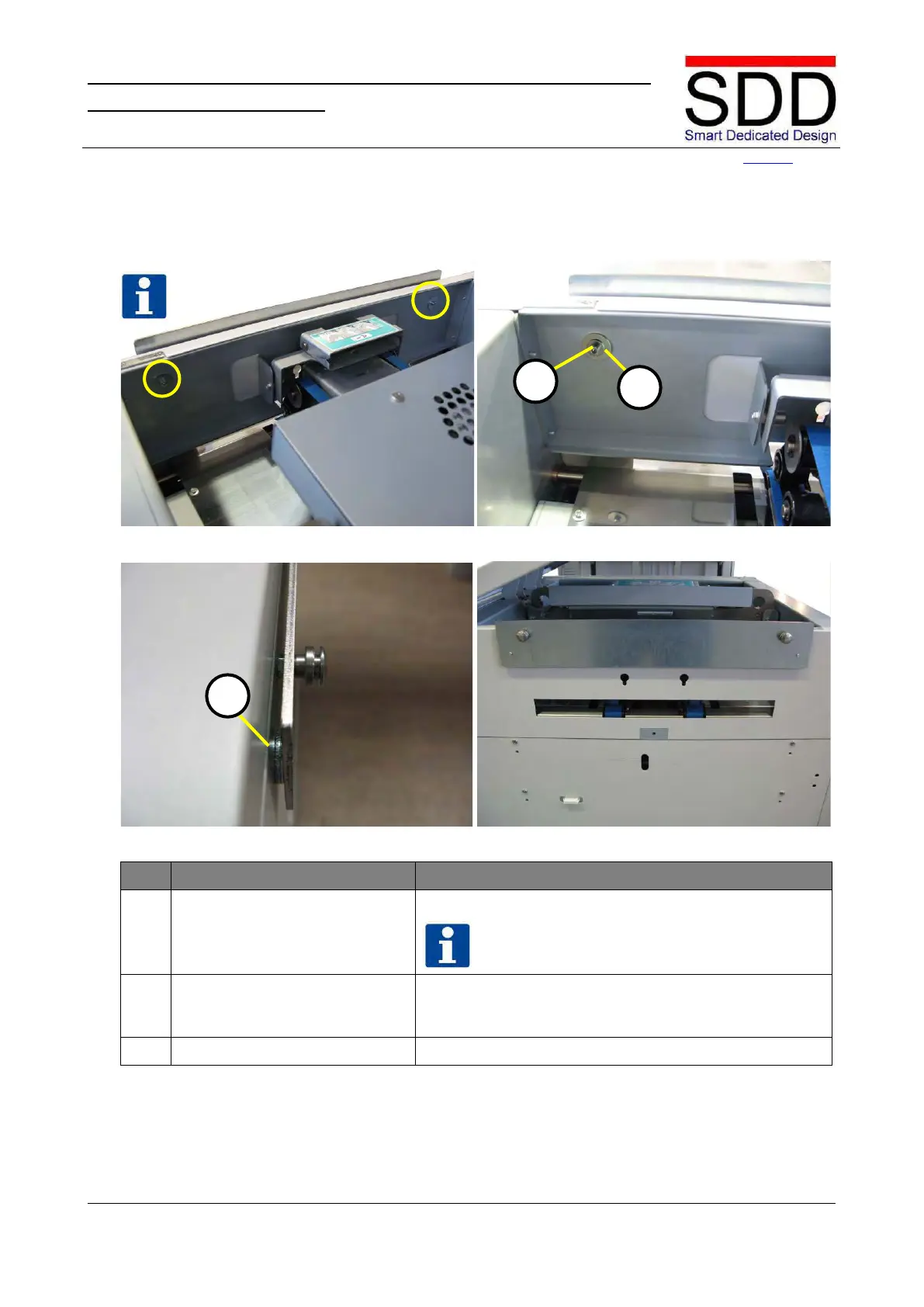

Fig. 4.2.5 Fig. 4.2.6
Fig. 4.2.7 Fig. 4.2.8
Step
Action
Remarks
4.
Place Coupling Plate
Mount Coupling Plate (Fig. 4.2.5 & 4.2.6).
NOTE:
Plate mounted ‘upward’.
5. Place thick Washer [D] (2x) Place thick Washer [D] between F1 Trimmer and
Coupling Plate (Fig. 4.2.7) and screw Bolt [B] into the
Plate (2x).
6.
Do not tighten Bolts
Bolts [B] to be tightened in Step 5.4.1 #2
C
B
D
